Ancon Tapered Thread Weldable Couplers

Name: Ancon Tapered Thread Weldable Couplers
Brand: Leviat
SKU: uwS16GEBHHrdxqB2FXwazP

Verified by manufacturer 11 days ago

Leviat

Couplers for connecting reinforcing bars to structural steel plates or sections.

Jump to:

+44 (0) 114 275 5224 Website

Application

Suitable for welding to structural steels, Grade S275 or Grade S355.

Description

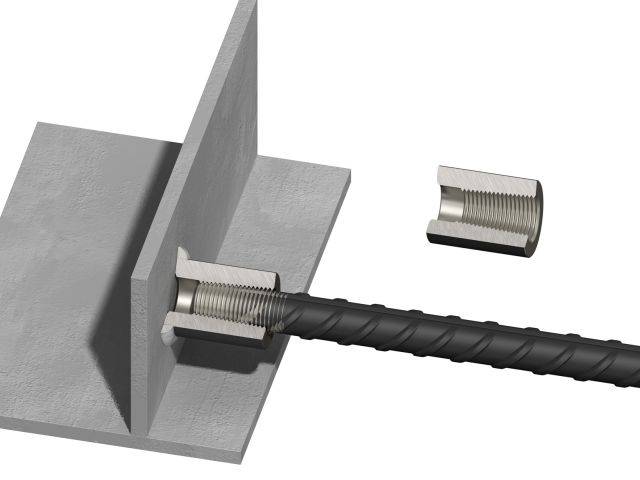

A method of connecting reinforcing bars to structural steel plates or sections, the product incorporates a tapered thread at one end whilst the other end is welded directly to the steel.

Features and benefits:

Shorter than the standard coupler.
The couplers are produced in either steel grade Type 1045 to ASTM A576 or Type 150M19 steel to BS970.

General information

Color	Silver
Material	Steel

Uniclass	Pr_20_96_71_51 Mechanical reinforcement couplersPrimary
CAWS	E30/260 Proprietary mechanical couplers

Product range	Reinforcing Bar Couplers

Specification data - Mechanical reinforcement couplers

Classification data
Coupler type	TTW12. Guidance for specification option: To suit 12 mm bar. TTW14. Guidance for specification option: To suit 14 mm bar. TTW16. Guidance for specification option: To suit 16 mm bar. TTW18. Guidance for specification option: To suit 18 mm bar. TTW20. Guidance for specification option: To suit 20 mm bar. TTW22. Guidance for specification option: To suit 22 mm bar. TTW25. Guidance for specification option: To suit 25 mm bar. TTW26. Guidance for specification option: To suit 26 mm bar. TTW28. Guidance for specification option: To suit 28 mm bar. TTW30. Guidance for specification option: To suit 30 mm bar. TTW32. Guidance for specification option: To suit 32 mm bar. TTW34. Guidance for specification option: To suit 34 mm bar. TTW40. Guidance for specification option: To suit 40 mm bar. TTW50. Guidance for specification option: To suit 50 mm bar.
Product Reference	Ancon Tapered Thread Weldable Couplers
Grade	1045. 150M19.
