Verified by manufacturer 8 months ago

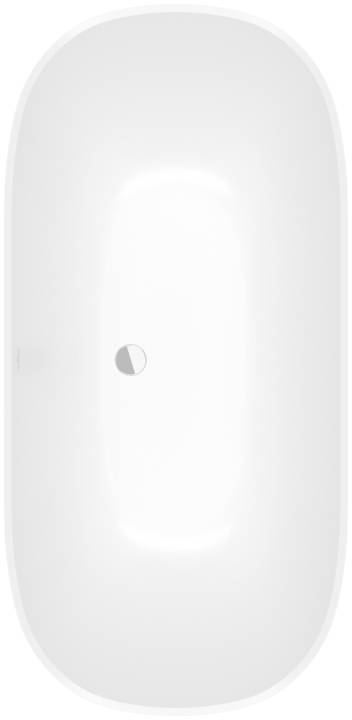

Free-standing bath.
For bathrooms.
In accordance with DIN 1986-100, a floor drain is required to protect the building against flooding, if a bath is installed without an overflow. No floor drain is required if ViFlow is used.
Free-standing bath.
Features and benefits:
Color | White |
Finish | Gloss |
Material | Quaryl® |
Shape | Rectangle |
Length | 1550 mm |
Width | 480 mm |
Uniclass | |
CAWS | N13/35 Baths N13/355 Baths |
Form | Free-standing. |
Materials | Quaryl®. |
Colour | Alpin White.Stone White. |
Size | 1550 x 750 x 480 mm. |
Volume to overflow (maximum) | 250 L. |
Water supply, overflow and waste holes | |
Water supply | No tap holes. |
Overflow | No overflow hole. |
Waste | Bottom central waste outlet. |
Support frame | Stainless steel frame. |
Integral accessories | The stainless steel frame is supplied (pre-installed, high gloss polished). |
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
Platform | Compatible | Version |
---|---|---|
- | 1 | |
- | 1 | |
- | 1 | |
- | 1 | |
- | 1 | |
- | 1 |
