Anti-bacterial Textured Impact Protection Sheet

Verified by manufacturer 3 months ago

FSA-01

Intastop Ltd Variant:

Anti-bacterial impact protection sheet.

Jump to:
+44 (0) 1302 364 666 Website

Application

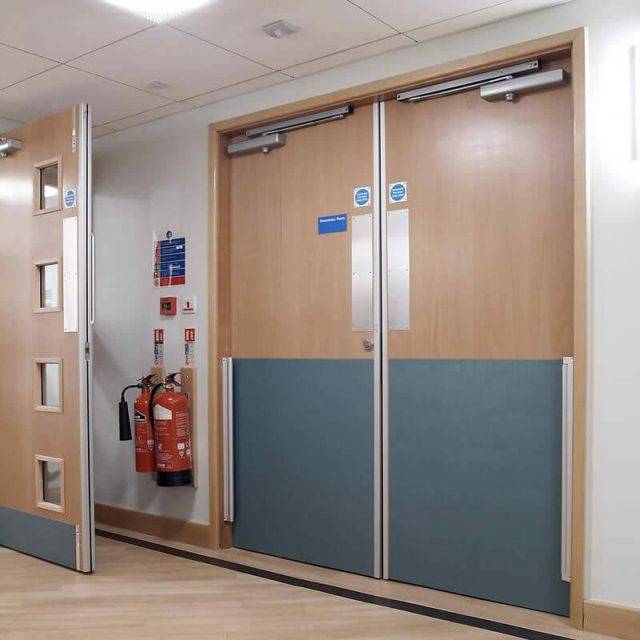

For use on walls and doors. It ensures staff and patient safety in the event of a fire by maintaining fire integrity of the door allowing safe evacuation.

Description

An anti-bacterial impact protection sheet which protects walls and doors and assists in infection control, combating the spread of harmful bacteria such as C-difficile, MRSA, Salmonella, Listeria and E.coli.



Features and benefits:

  • Hygienilac® anti-bacteria barrier technology.
  • The sheets can be ordered as full sheets. They can also be pre-cut to size for half height and shaped plates, kick and push plates, or cut on site using a Stanley knife.
  • Sheet edges can be supplied chamfered to order with a pre-taped option available.
  • Easy to install with contact adhesives, the product requires no grouting and can be jointed with mastics, jointing trims or welded with floor welding trims to form a moisture resistant finish.
  • High impact resistance.
  • Class '0' fire rated; tested to BS 476-6 and -7.
  • Easy to clean.
  • Resistant to staining.
  • Chemical resistant.
  • UV stable.
  • Non-carcinogenic.
  • Non-mutagenic.
  • Non-skin sensitising.
  • Assists in meeting guidelines in BS 8300.
  • Versatile to design and shape.
  • Reduces maintenance costs by protecting vulnerable doors and walls from costly damage occurring.
  • Maintains a clean safe environment ensuring staff and patient hygiene safety.
  • Achieve colour contrast for critical surfaces to assist with visually impaired staff and patients.
  • Enhances surroundings with unique designs or signage.
  • Standard sheet thickness is 2 mm but other thicknesses are available on request.

General information

Color

Beige

Blue

Green

Grey

White

Show more

Finish

Textured

Guidance for specification option:

Standard finish is textured antibacterial PVC-U, available in a wide range of colours.

Smooth

Material

PVC-U

Shape

Rectangle

Length

2250 mm

2440 mm

3050 mm

Bespoke

Guidance for specification option:

Cut to size, contact manufacturer for details.

Width

1000 mm

1220 mm

Bespoke

Guidance for specification option:

Cut to size, contact manufacturer for details.

Height

2 mm

Warranty description

-

Manufacturer guidance

As per company terms and conditions.

Uniclass

Pr_35_90_43_86 Wall protection panelsPrimary

CAWS

L20/410 Wood doorsets

L20/420 Wood doorsets

L20/430 Wood doorsets

L20/480 Doorsets

L20/55 Doorsets

M50/150 Sheeting

M50/20 Sheeting

Product range

Impact Protection Sheets

Specification data - Wall protection panels

Material

Plastics.

Fire rating

To BS 476 Parts 6 and 7, Class 0; to EN 13501-1:2010, B-s2, d0.

Finish

Textured.

Smooth.

Anti-microbial coating

Hygienilac.

Colour or pattern

Polar White.

Guidance for specification option:

LRV: 84.02.

Ivory.

Guidance for specification option:

LRV: 73.85.

Pale Grey.

Guidance for specification option:

LRV: 51.38.

Snow White.

Guidance for specification option:

LRV: 73.07.

Sand.

Guidance for specification option:

LRV: 60.08.

Pale Green.

Guidance for specification option:

LRV: 37.32.

Slate Grey.

Guidance for specification option:

LRV: 13.09.

Poseidon Blue.

Guidance for specification option:

LRV: 27.13.

Olive Green.

Guidance for specification option:

LRV: 18.34.

Pale Blue.

Guidance for specification option:

LRV: 31.03.

Twilight Blue.

Guidance for specification option:

LRV: 8.25.

Steel Grey.

Guidance for specification option:

LRV: 39.59.

Storm Grey.

Guidance for specification option:

LRV: 21.66.

Misty Grey.

Guidance for specification option:

LRV: 12.55.

Light Beige.

Guidance for specification option:

LRV: 44.85.

Profile

Flat panel.

Size

1220 x 2440 x 2 mm.

Fixing

-

Manufacturer guidance

In accordance with manufacturer's installation instructions.

Accessories

None.

ADC-01-AER.

ADW-01-BUC.

SEC-01.

Literature

Data Sheet - Textured Sheet inc. Hygienilac

Data Sheet - Textured Sheet inc. Hygienilac
