Anti Climb Square Downpipe

Verified by manufacturer 4 days ago

102 x 102 mm - 1.80 mm Wall Thickness

Seamless Aluminium Group Variant:
Third party certifications:
  • ISO 9001 Quality Management

    Certificate type

Heavy duty anti-climb extruded aluminium downpipe.

Jump to:
+44 (0) 121 765 4355 Website

Application

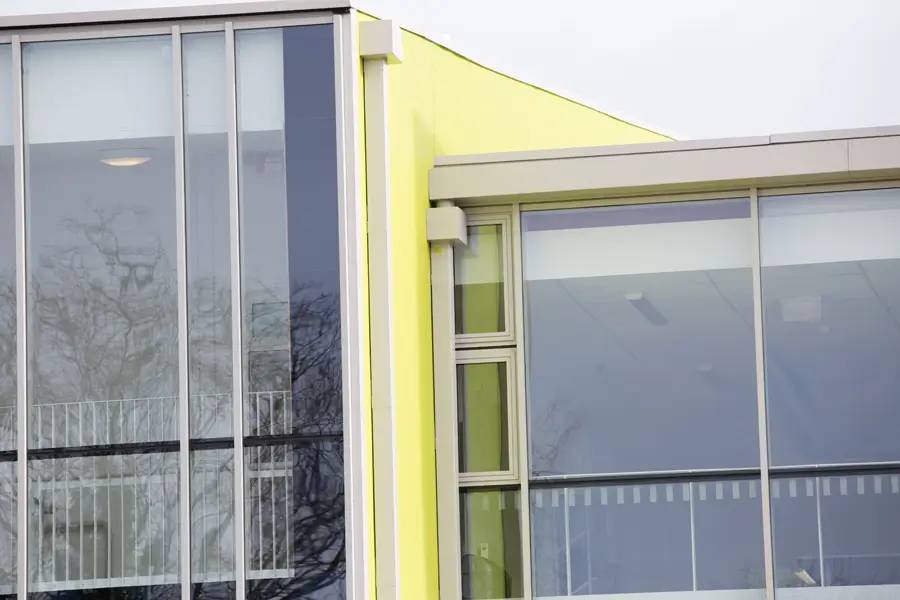

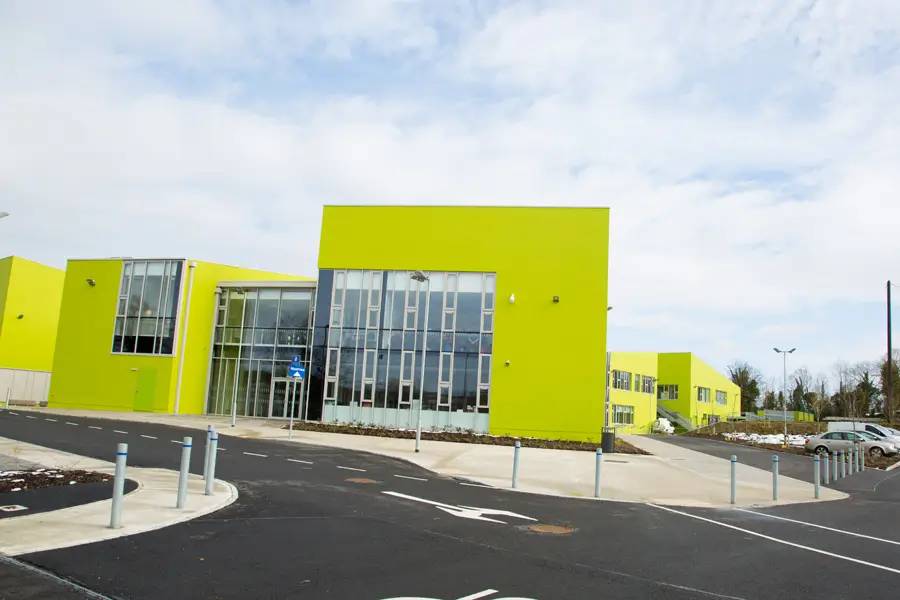

Designed for use in public or higher security areas and particularly suitable for schools, prisons and other areas which are susceptible to vandalism.

Description

Seamless Aluminium Group’s range of heavy duty extruded downpipes are designed and manufactured to provide the essential architectural features appropriate to traditionally designed buildings. These systems can be used as a direct replacement for Cast iron. It can also be used on both flush and projecting eaves.

Features and benefits:

  • Vandal resistant.
  • Specifically designed to desist damage and climbing.
  • Available in five standard sizes.
  • Mill finish or polyester powder-coated in a matt finish in six standard RAL colour options.
  • Can be used as a direct replacement for cast iron.
  • Non-combustible to EN 13501-1:2007 + A1:2009.
  • Life expectancy of 40 years or more in rural and suburban conditions and 25 years or more in industrial and marine conditions.

General information

Color

White

Black

Grey

Brown

Other

Guidance for specification option:

RAL colour.

Show more

Finish

Powder-coated

Mill

Material

Aluminium

Shape

Rectangle

Square

Length

1500 mm

Width

63 mm

76 mm

102 mm

150 mm

Height

63 mm

76 mm

102 mm

150 mm

Warranty description

20 year

Uniclass

Pr_65_52_03_04 Aluminium rainwater pipes and fittingsPrimary

CAWS

R10/30 Aluminium pipework

R10/370 Aluminium pipework

Specification data - Aluminium rainwater pipes and fittings

Form

Extruded.

Section

Square.

Size (nominal)

102 x 102 mm.

Minimum thickness or gauge

1.80 mm.

Finish and colour

-

Finish

Mill.

Powder coating to BS EN 12206-1.

Colour

RAL 9016 Traffic White.

RAL 9005 Jet Black.

RAL 7015 Slate Grey.

RAL 7016 Anthracite Grey.

Seamless Brown.

RAL 9005 Ripple Black.

Other.

Guidance for specification option:

Non-standard colours.

None.

Guidance for specification option:

Mill finish.

Film thickness (minimum)

Manufacturer's standard.

Guidance for specification option:

Polyester powder-coated only; not applicable for mill finish.

Integral accessories

Not required.

Offset bend 110°.

Offset bend 92.5°.

Projected offset bend.

Y-branch.

Plinth offset.

Shoe.

Loose connector.

Manufacturer guidance

Consult manufacturer's literature for dimensions.

Length

1500 mm.

Fire rating (to BS EN 13501)

Non-combustible to EN 13501-1:2007 + A1:2009.

Coefficient of thermal expansion

0.000023°C.

Melting point

660°C.

Guidance for specification option:

Approximate melting point.

Fixing method

Fixed from town down 1.5 m centres.

Guidance for specification option:

2 no fixings, (No.8 x 50 mm twin threaded stainless screw) per fixing plate.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

Ireland

Manufacturing plant location

Material

Aluminium

Recyclability

100%

Expected Life

40 year

Third party certifications

ISO 9001 Quality Management
