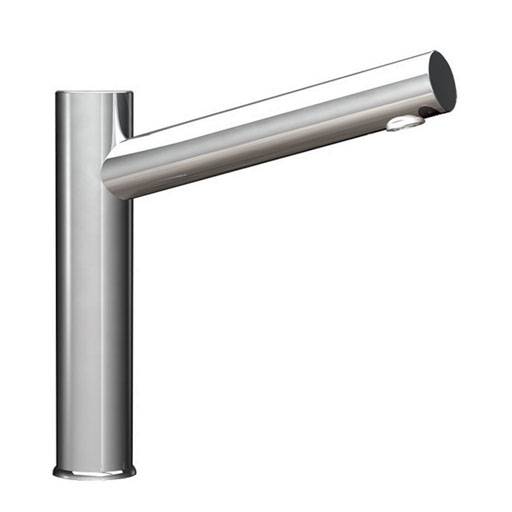

Aquarius Pillar Tap
Verified by manufacturer over a year ago
AT02-001
AT02-001
Aquarius Pillar is perfect for raised sinks and glass bowls. It’s simple, modern, long-reach design also makes it exceptionally easy to clean. Available in polished chrome.
Application
- Supermarkets.
- Laboratories.
- Hospitals.
- Schools.
- Universities.
- Airports.
- Motorway services.
- Food factories.
- Hotels.
Description
Combining the benefits of no-touch technology with water savings and robust reliable performance, no-touch automatic taps are an ideal choice for washrooms across a wide variety of applications, offering benefits to commercial and public sector environments. Suitable for use by the elderly or disabled and the superior heavy duty construction offers resistance to vandalism and misuse. DVS no-touch taps have been extensively developed and tested to achieve high levels of reliability and consistent performance, combined with attractive design options.
Features and benefits:
- Fully programmable.
- Hygienic.
- Reliable.
- Provide water savings.
- Easy to use – ideal for disabled or elderly.
- Battery or mains powered.
- Adjustable run on time.
- Adjustable range and trigger level.
- Adjustable anti-vandal lockout time.
- Automatic purge.
- Adjustable purge run times.
- Commissioning flush.
- Electronic hands-free tap with integral infra-red detection (and anti-vandal flow limitation).
General information
Color | Grey Guidance for specification option: Stainless steel |
Finish | Brushed Polished Manufacturer guidanceChrome |
Material | Stainless steel Guidance for specification option: Stainless steel, and cross-linked polyethylene Brass Guidance for specification option: Chrome plated heavy brass |
Shape | Manufacturer guidance40mm dia vertical with 32mm dia branch sloped at 15 degrees. |
Length | 276 mm |
Width | 55 mm |
Height | 176 mm |
Uniclass | |
CAWS | N13/30 Washbasins N13/331 Sinks N13/335 Washbasins |
Product range |
Specification data - Washbasin thermostatic water supply sets
Approvals | Water Regulations Advisory Scheme (WRAS) approved. |
Form | Pillar taps. |
Materials | |
Body | Stainless steel. |
Finish and colour | Brushed chrome.Polished chrome. |
Integral accessories | Manufacturer guidanceA wide range of tap control systems, wave-on sensors, tactile switches and other accessories are available to complete the system - consult manufacturer's literature for details. |
Type | Aquarius WM straight tap. |
Tap kit | AT00-001. Guidance for specification option: Single station battery kit standard pressure. AT00-002. Guidance for specification option: Single station mains kit standard pressure. AT00-003. Guidance for specification option: Two station mains kit standard pressure. AT00-004. Guidance for specification option: Three station mains kit standard pressure. AT00-005. Guidance for specification option: Single station battery kit low pressure. |
Length | 150 mm. |
Controller | Not required. Tap control system. Guidance for specification option: The tap control system can be used to control mixed water for one or two taps, or to control both hot and cold on a single tap using two sensors. The control system can be used with wave-on or tactile sensors. The tap control system also features built-in purge control option to avoid stagnation. When a user waves their hand past the sensor (or pushes the tactile switch) the control system activates the solenoid valve, the valve will then run for a pre-set time before automatically closing the valve and stopping the tap. Purge controller. Guidance for specification option: The automatic tap purge controller reduces the risk of Legionella by purging the taps if they have not been operated for a predefined time. Purge run times are adjustable and can be set between five seconds and five minutes. A periodic purge can be switched on or off. |
Battery back-up | Not required. Required. Guidance for specification option: Battery backup unit: The automatic tap battery backup unit will automatically switch from mains supply to battery in the event of a power failure (comes complete with AT00-024 battery pack). When mains power is restored the unit will switch back to mains supply. |
Dimensions | 276 x 55 x 176 mm. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
