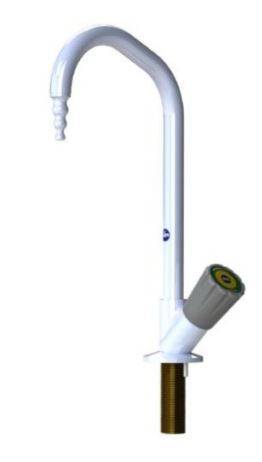

Arboles UK Cold Water Fixed Swan Neck Laboratory Water Tap

Verified by manufacturer 6 months ago

Arboles UK Ltd

Fixed swan neck tap with fixed serrated nozzles.

Jump to:
+44 (0)1204 388814 Website

Application

Standard laboratory water tap for all applications where header tank supply is present (full WRAS approval).

Description

Fixed swan neck tap with fixed serrated nozzles for cold water usage.


Features and benefits:

  • Options: Removable or full-bore nozzles are available on request.
  • Construction: All brass body, Rilsan plastic coated, light white (RAL 9016). Chemical resistant plastic ABS handwheel, identification coding to DIN 13792.
  • Connection and mounting: ½” BSP male flat ended shank x 60 mm long with back nut. Standard anti-rotation base with location pin. Two mounting holes 22 mm and 5 mm diameter required template enclosed.
  • Pressure and flow: Maximum pressure 100 PSI (Recommended 20 PSI).
  • Flow rate at 20 PSI = 12 L/min.
  • Installation template for the perfect fit.
  • Spares: Handwheel assembly, part number: 960180; Valve headwork, part number: 950148; Removable nozzle, part number: 900130.
  • WRAS: Approved.

General information

Color

White

Guidance for specification option:

Light white (RAL9016).

Finish

Coated

Guidance for specification option:

Rilsan plastic coated

Material

Brass

Shape

Other

Width

130 mm

Height

312 mm

Warranty description

Five year

Uniclass

Pr_40_20_87_99 Washbasin thermostatic water supply setsPrimary

CAWS

N10/130 Laboratory furniture

N13/30 Washbasins

N13/335 Washbasins

Specification data - Washbasin thermostatic water supply sets

Approvals

Water Regulations Advisory Scheme (WRAS) approved.

Form

Fixed swanneck tap.

Materials

-

Body

Brass.

Finish and colour

Rilsan plastic coated, light white (RAL9016).

Flow rate (maximum)

12 L/minute at 20 psi.

Guidance for specification option:

Maximum pressure 100 psi (recommended 20 psi).

Integral accessories

Not required.

Handwheel assembly.

Guidance for specification option:

Pt No 960180.

Valve headwork.

Guidance for specification option:

Pt No 950148.


Removable nozzle.

Guidance for specification option:

Pt No 900130.

Options

Removeable nozzle.

Full-bore nozzle.

Connection

½” BSP male flat ended shank x 60 mm long with back nut.

Mounting

Standard anti-rotation base with location pin.

Guidance for specification option:

Two mounting holes 22 mm and 5 mm diameter required template enclosed.

Base

∅50 mm.

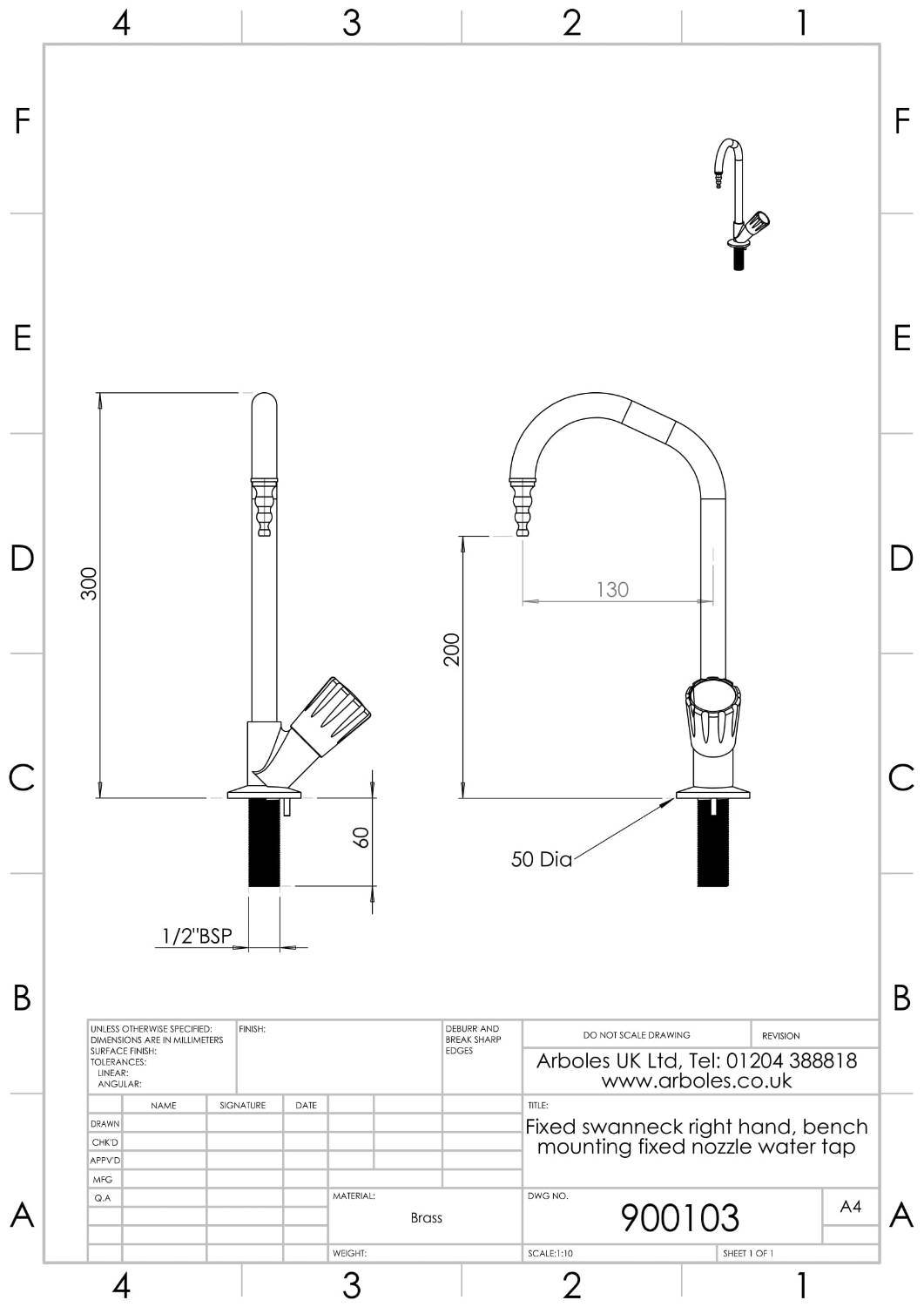

Height

312 mm (overall); 200 mm (nozzle).

Projection

130 mm.

Sustainability data

Country of product manufacture

Spain

Recyclability

100%
