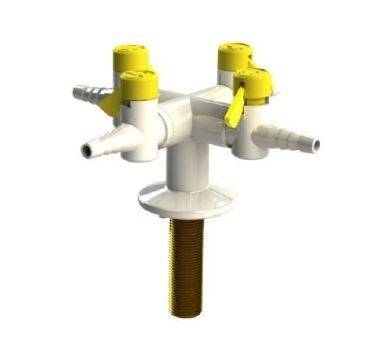

Arboles UK Four Way Bench Mounted Drop Lever Gas Tap

Verified by manufacturer 6 months ago

Arboles UK Ltd Third party certifications:
  • BSI Kitemark

    BSI Kitemark

    Certificate type

Four-way high visibility drop lever gas tap fixed serrated nozzle and integral anti-rotation pin.

Jump to:
+44 (0)1204 388814 Website

Application

Standard drop lever laboratory gas tap for bunsen burner type applications. Suitable for both natural and LPG gas applications.

Description

Four-way high visibility drop lever gas tap fixed serrated nozzle. Integral anti-rotation pin.


The drop lever allows for easy visual indicator as to whether the tap has

been left in the 'on' position.


Features and benefits:

  • Construction: All brass body, Rilsan plastic coated, white (RAL 9016). Identification coding to DIN 13792.
  • Connection and mounting: 3/8” BSP male flat ended shank x 60 mm long with back nut.
  • Standard anti-rotation base with location pin. Two mounting holes 17 mm and 5 mm diameter are required through the work surface, template enclosed.
  • Service: Natural or LPG gases.
  • Pressure and Flow: Maximum work pressure 20—25 Mbar.
  • Flow Rate @ 20 Mbar = 1 Cubic metre/hour per nozzle.
  • British Gas/BSI certified.

General information

Color

White

Guidance for specification option:

RAL 9016.

Finish

Coated

Guidance for specification option:

Rilsan plastic coated.

Material

Brass

Shape

Other

Width

150 mm

Height

75 mm

Warranty description

Five year

Uniclass

Pr_65_54_33_45 Laboratory gas tapsPrimary

CAWS

N10/130 Laboratory furniture

Specification data - Laboratory gas taps

Mounting

Bench.

Number of outlets

Four.

Nozzles

Fixed.

Operation

Lever.

Colour coding

To BS EN 13792.

Inlet connection

3/8” BSP male flat ended shank x 60 mm long with back nut.

Accessories

Guidance for specification option:

Consult manufacturer and insert requirement or omit.

Mounting

Standard anti-rotation base with location pin.

Guidance for specification option:

Two mounting holes 17 mm and 5 mm diameter are required through the work surface, template enclosed.

Base

∅50 mm.

Pressure

20—25 Mbar.

Flowrate

1 cubic metre/ hour per nozzle.

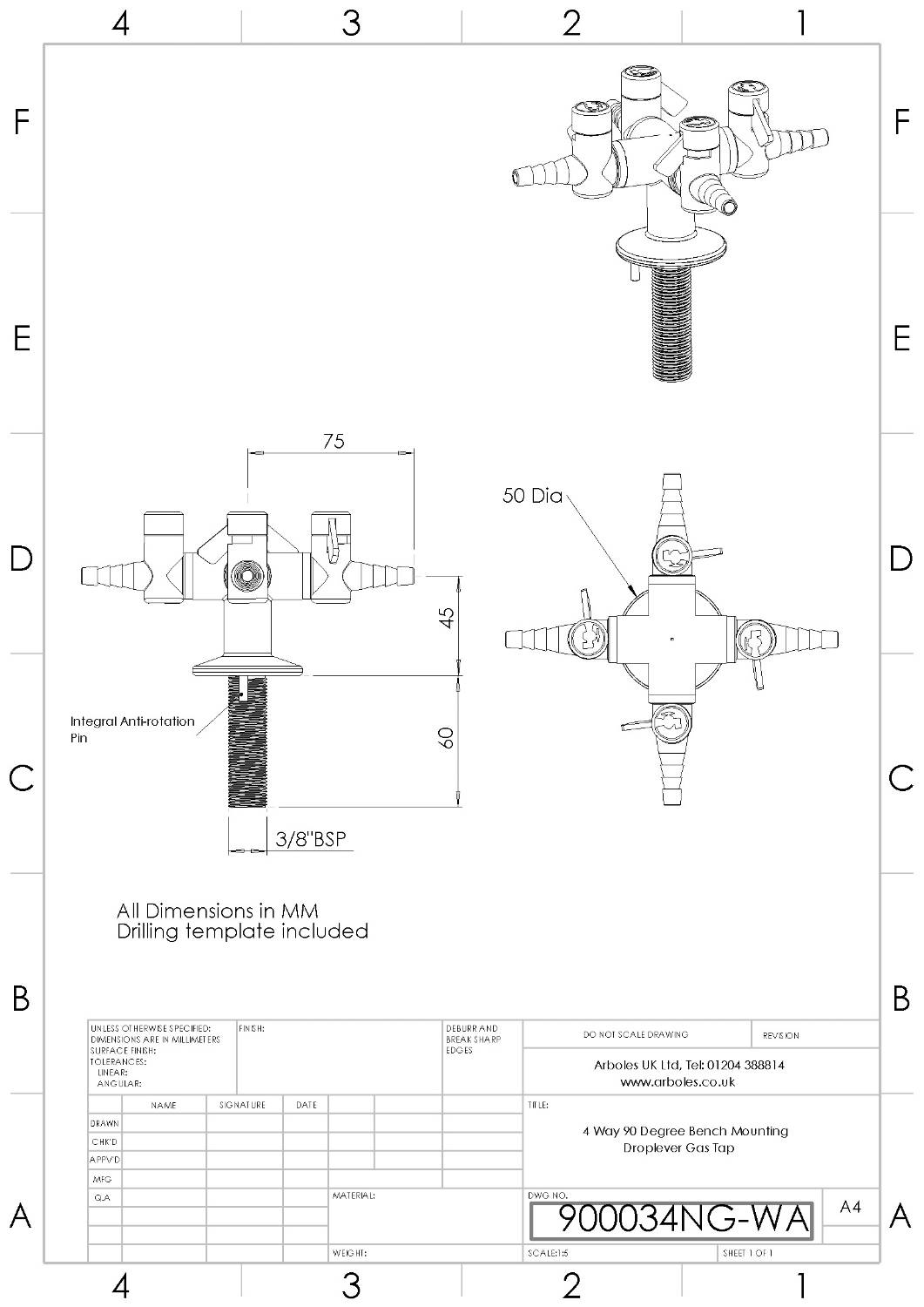

Height

75 mm (overall); 45 mm (nozzle).

Projection

150 mm.
