Verified by manufacturer 8 months ago

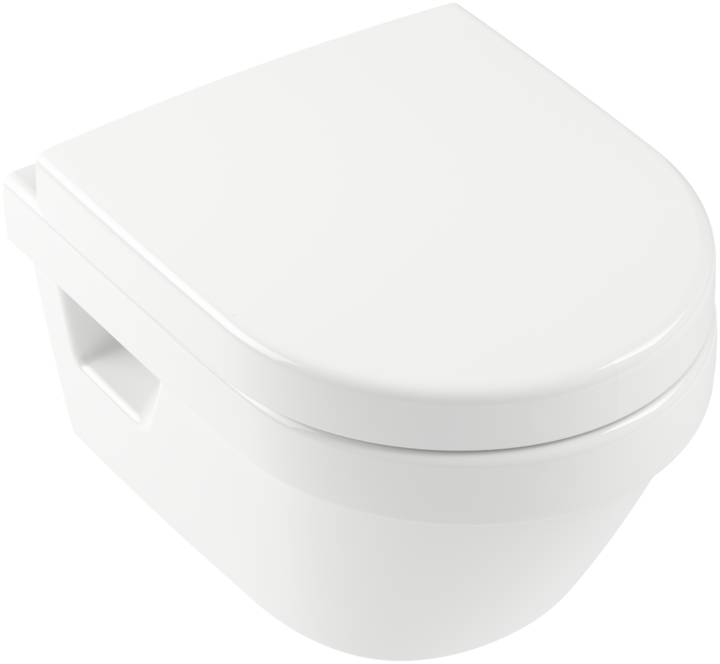

Compact, rimless washdown toilet.
Suitable for washdown toilet.
Compact, rimless washdown toilet.
Features and benefits:
Color | White |
Material | Ceramic Guidance for specification option: Sanitary ceramics |
Shape | Oval |
Width | 350 mm |
Uniclass | |
CAWS | N13/10 WC pans and flushing arrangements N13/300 WCs and cisterns |
Standard | To BS EN 997. |
Form | Wall-mounted, washdown. |
Pan height | 410 mm. |
Materials | |
Body | Ceramic.Guidance for specification option: Sanitary ceramics. |
Finish and colour | White. |
Water supply, outlet and seat holes | |
Water supply | Back inlet. |
Outlet | Horizontal. |
Integral accessories | Toilet seat and cover Compact (9M66S2).Toilet seat and cover Compact (9M66E1). |
Weight | 18 kg. |
Width | 350 mm. |
Depth | 480 mm. |
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
Platform | Compatible | Version |
---|---|---|
- | 1 | |
- | 1 | |
- | 1 | |
- | 1 | |
- | 1 | |
- | 1 |
