ARDEX IndorTec Flexbone VA Bonded Uncoupling Membrane

Verified by manufacturer 4 months ago

Ardex UK Ltd Third party certifications:
  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 45001 Health and Safety Management

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

Advanced, high load-bearing uncoupling membrane for substrates with limited movement.

Jump to:
BOS
+44 (0)1440 714939 Website

Application

Suitable for:

  • Large format tiling in high traffic areas.
  • Ceramic and porcelain tiles, slabs and natural stone with a minimum edge length of 100 mm.
  • Internal flooring; renovation and new construction, domestic and commercial areas in medium/ heavy duty applications.
  • Heated floors, new cement screeds, concrete timber floors and existing floor surfaces.


Application areas:

  • Leisure centres.
  • Bathrooms.
  • Changing rooms.
  • Car showrooms.
  • Domestic kitchens.
  • Shopping malls.
  • Wet rooms.

Description

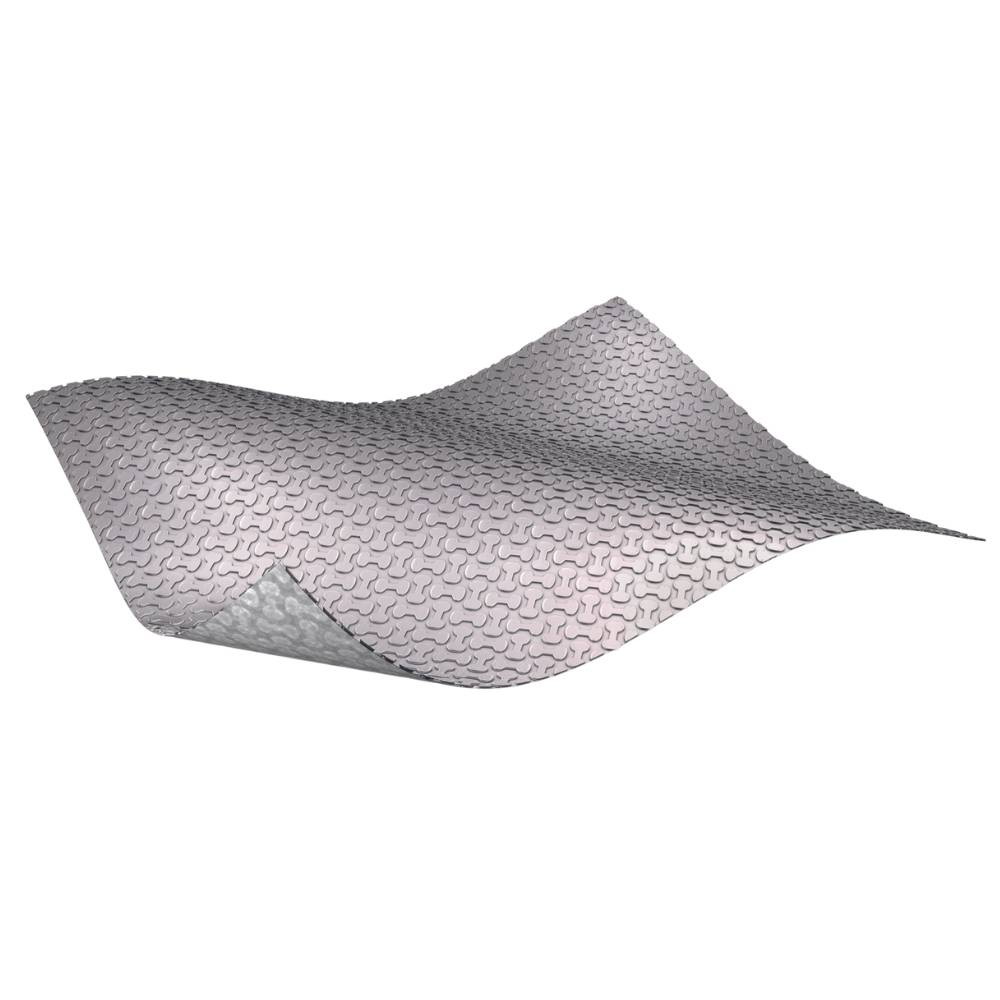

ARDEX IndorTec Flexbone VA is a high load-bearing, waterproof, uncoupling membrane. It accommodates lateral movements for tile installations on floors with limited movement. Its bone-shaped pattern with GripLock technology delivers outstanding tensile bond strength.


Features and benefits:

  • Maximum protection from lateral movement.
  • Has distinctive bone-shaped cavities and GripLock technology for ease of spreading and higher bond strength.
  • Supports and distributes heavy loads from above.
  • Can be tiles immediately after laying.
  • Excellent adhesive shear strength.
  • Excellent tensile strength: stops tiles ‘popping-off’/ cracking under pressure.
  • Water vapour pressure compensating: a fleece laminated to the underside compensates for water vapour pressure.
  • Waterproof: can be used in internal wet areas.
  • Can be stored for approx. 48 months in dry rooms, away from direct sunlight.

General information

Color

Grey

Finish

Other

Material

Plastic

Fleece

Shape

Other

Length

20000 mm

Width

1000 mm

Height

3 mm

Warranty description

Ten year

Uniclass

Pr_25_57_65_60 Plastics sheetsPrimary

CAWS

M40/5 Tiling to

M40/110 Tiling to

M40/115 Natural stone covering to

M40/470 Intermediate substrate

M40/10 Natural stone covering to

M40/27 Intermediate substrate

Specification data - Plastics sheets

Material

Plastic with fleece underside.

Purpose

Uncoupling membrane.

Performance characteristics

-

Tensile strength (minimum)

-

Manufacturer guidance

Consult manufacturer for details.

Water vapour resistance (minimum)

-

Manufacturer guidance

Consult manufacturer for details.

Form

Bone shaped GripLock Technology.

Physical properties

-

Colour

Grey.

Weight (minimum)

1.8 kg per sheet.

Dimensions

-

Thickness (minimum)

3 mm.

Width (minimum)

1 m.

Roll length (minimum)

20 m.

Sustainability data

Country of product manufacture

United Kingdom

Material

Plastic

Fleece

Third party certifications

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Third party certifications

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

ISO 45001 Health and Safety Management

ISO 45001 Health and Safety Management

ISO 45001 Health and Safety Management Certificate

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001 Quality Management System

Literature

ARDEX 10 YEAR UK PRODUCT WARRANTY

ARDEX 10 YEAR UK PRODUCT WARRANTY
