ARDEX-Kingspan Complete Insulated Flooring System for Carpet Tiles
Verified by manufacturer 6 months ago
Complete insulated flooring system from ground floor concrete slab to carpet tiles, incorporating ARDEX screed, smoothing compound, DPM, and adhesive with Kingspan Kooltherm K103 insulation.
Application
For carpet tiles.
Description
This BIM model offers a complete “through-floor” insulated flooring system from a ground concrete slab layer through to the final floor finish. Incorporating ARDEX and Kingspan products, offering enhanced performance qualities and the rapid completion of the flooring installation.

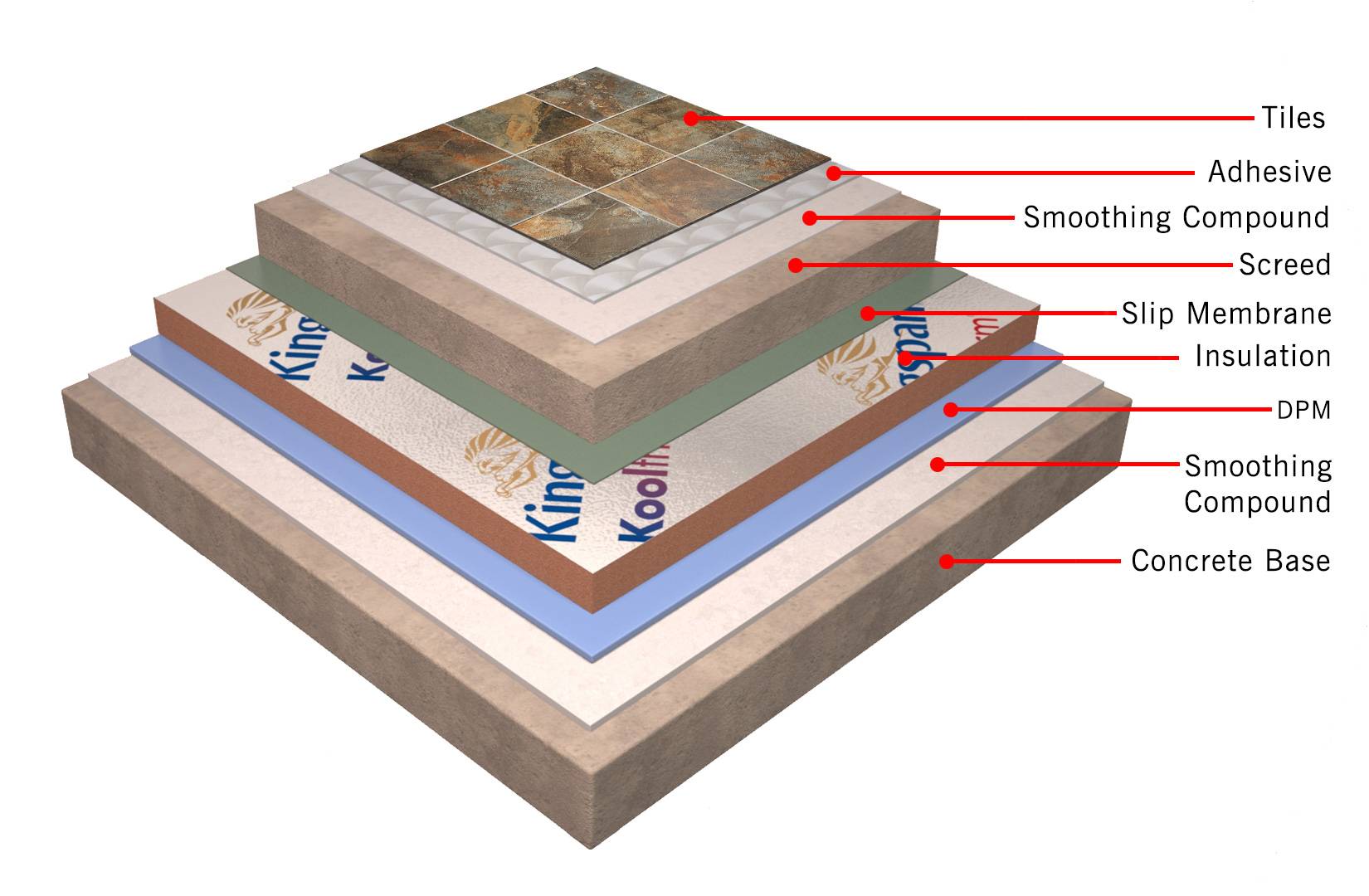

The system model is built up of the following products from the slab upwards:
- Generic concrete slab.
- ARDITEX NA Ultra Rapid Setting Latex Subfloor Levelling Compound.
- Generic damp proof membrane (1200 gauge).
- Kingspan Kooltherm K103 Floorboard (providing a thermal conductivity rating of 0.018 W/m·K and a Green Guide Rating of A+).
- Generic slip membrane.
- ARDEX A 38 Ultra Rapid Drying Cement for Screeds at 75 mm or 65 mm for domestic locations.
- ARDITEX NA Ultra Rapid Setting Latex Subfloor Levelling Compound.
- ARDEX AF 825 Surface Tackifier.
- Generic top floorcovering.
General information
Uniclass | |
CAWS | J42/325 Adhesive M50/130 Carpet tiling |
Product range |
Specification data - Internal floor tiling systems
Substrate preparation | Latex subfloor levelling compound. |
Separating layer | |
Material | Plastics sheets. |
Intermediate substrate | |
Type | Phenolic foam board. |
Bedding | |
Type | Cement sand mortar bed. |
Bonding | Unbonded. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | Revit 2016 | 1 |
Literature
ARDEX Datasheets Booklet
ARDEX RIBA CPD Seminars Brochure
ARDEX Floating Screed System Build with Kingspan Kooltherm Insulation.
