ARDEX RAPIDLAY Membrane

Verified by manufacturer 6 months ago

Ardex UK Ltd Third party certifications:
  • ISO 45001 Health and Safety Management

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

PVC damp proofing and isolating membrane providing a stable, moisture resistant barrier substrate.

Jump to:
BOS
+44 (0)1440 714939 Website

Application

  • Screed or concrete substrates where construction moisture has not fully dried out (5% moisture content, 92% RH maximum).
  • Anhydrite screeds with a maximum of 2% moisture content (carbide method).
  • Areas where sub-floors have been exposed to water spillage.
  • Old sub-floors which do not contain a fully functioning damp proof membrane.
  • Over old, soundly fixed flooring when a temporary covering is to be applied (without adhesive).
  • Suitable for use on heated concrete or cement/ sand screeds up to 27ºC maximum temperature.

Description

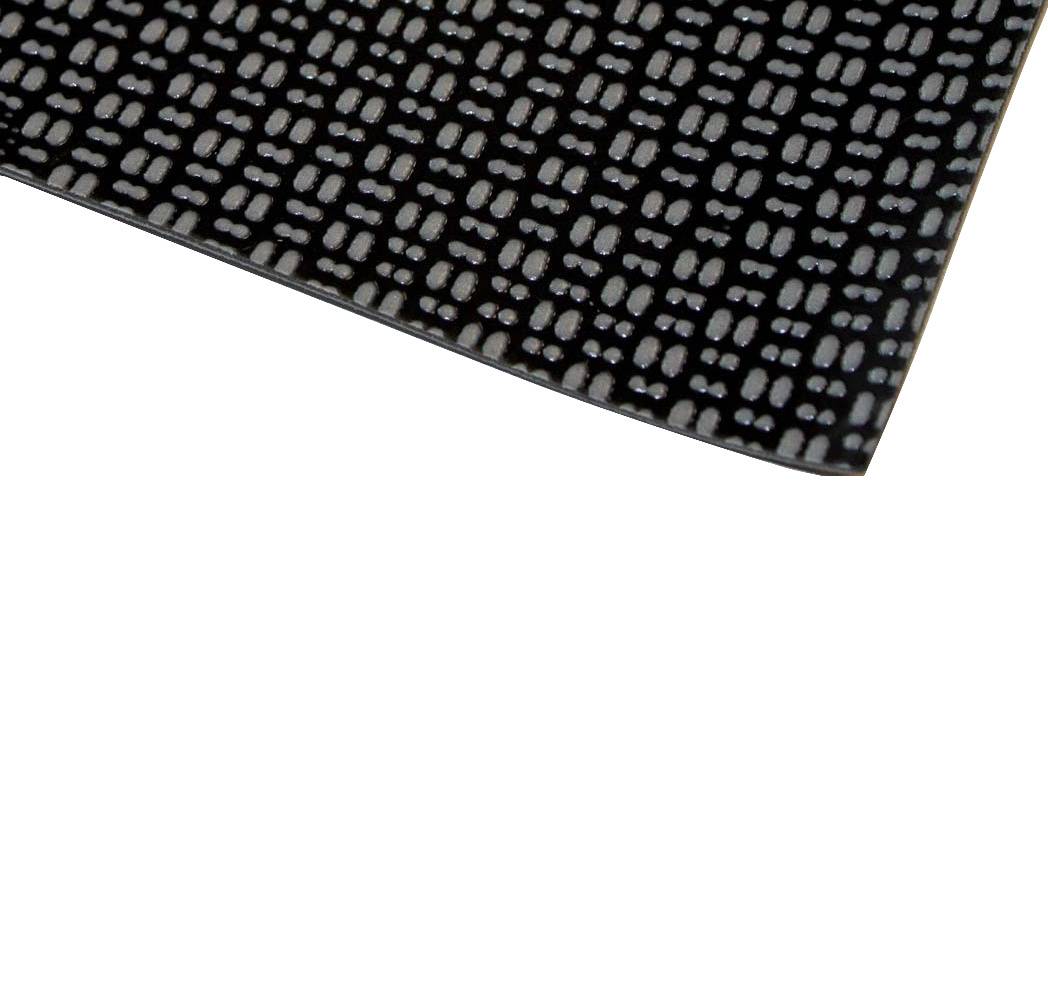

A specially coated and patterned fibreglass reinforced sheet underlay designed to overcome the problems sometimes encountered in laying floor coverings, particularly sheet vinyl flooring, over new or old sub-floors in domestic and light commercial areas.


Features and benefits:

  • It provides a continuous base which is stable and resistant to damp.
  • It cuts down laying time as there is no need to wait for the normal subfloor drying times.
  • It is dimensionally stable.
  • Quick installation can be achieved as it is a sheet system.
  • Allows for a new temporary floor to be laid over an existing floor (without potential adhesive damage on uplifting).
  • Low VOC and solvent free product.


Rapidlay Membrane should not be used in:

  • Areas that are subjected to heavy wheeled traffic such as forklift or pallet trucks, chair castors etc.
  • On timber bases that are not adequately ventilated.
  • On sub-floors that are subject to hydrostatic pressure.
  • On sub-floors which contain an effective damp proof membrane, but exceed a relative humidity of 97% and on sub-floors with no damp proof membrane and a relative humidity above 92%.
  • On magnesite or composite floors.
  • Biologically sensitive areas, or where floorings must be fully adhered, such as prisons.

General information

Color

Black

Material

Polyvinyl chloride (PVC)

Length

25000 mm

Width

1450 mm

Height

1.4 mm

Warranty description

Ten year

Uniclass

Pr_35_31_06_28 Fibre-reinforced levelling screed mixesPrimary

CAWS

M10/280 Unbonded construction

M10/290 Floating construction

M10/40 Floating construction

M40/451 Preparing concrete bases for unbonded bedding

Product range

Uncoupling Matting
Membranes and Waterproofing

Specification data - Fibre-reinforced levelling screed mixes

Size:

1.4 x 1450 x 25 000 mm.

Guidance for specification option:

thickness x width x length

Coverage

36.25 m².

Guidance for specification option:

Per roll.

Sustainability data

Country of product manufacture

United Kingdom

Material

Polyvinyl chloride (PVC)

Recyclability

For disposal considerations see Health and Safety Datasheet at www.ardex.co.uk.
