Aruba hH (High Humidity) - Mineral Tile Suspended Ceiling System

Name: Aruba hH (High Humidity) - Mineral Tile Suspended Ceiling System
Brand: Zentia
SKU: 69F5EVmkmAMkNX7AfyVhwo

Verified by manufacturer 12 days ago

Zentia

Suspended ceiling system with lay-in mineral ceiling tiles.

Jump to:

+44 (0)191 497 1000 Website

Application

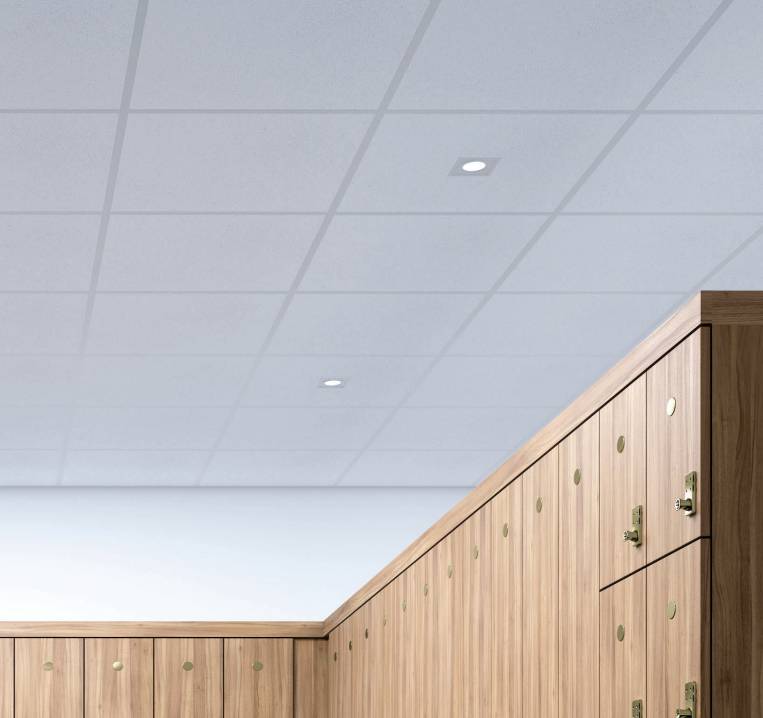

Suspended ceilings in humid areas such as wash rooms and changing rooms.

Description

Aruba hH (High Humidity) is a tough and reliable humidity resistant ceiling tile. Stable at up to 99% Relative Humidity (RH), it is suitable for high humidity areas such as changing rooms.

Features and benefits:

Up to 99% RH.
Offers Class C sound absorption and good attenuation for excellent acoustic performance.
Available in Global White, giving warm and damp spaces a brighter and cooler appearance.
Ideal for high humidity areas such as changing rooms.
Excellent technical performance in humid conditions when used alongside Gridline 24 Corrosive Resistant suspended ceiling grid.

General information

Color	White
Material	Mineral board
Shape	Square
Length	600 mm
Width	600 mm
Height	15 mm
Warranty description	Lifetime 30 year Guidance for specification option: System guarantee.

Uniclass	Ss_30_25_22_51 Modular suspended ceiling systemsPrimary
CAWS	K40/10 Unit/ modular suspended ceilings K40/105 Suspended ceiling system K40/115 Unit/ modular suspended ceiling system

Specification data - Modular suspended ceiling systems

System performance	Guidance for specification option: Insert requirements.
Ceiling support	Gridline 24 butt cut/joggled. Guidance for specification option: Gridline 24 Cross Tees are designed to work with Gridline 24, a 24 mm exposed grid system for suspended ceilings. These cross tees come with standard SureLock clip for secure connections to main runners, providing better alignment for easier ceiling installation and easy disconnection when access to the ceiling soffit is required. Baked polyester paint finish Gridline 24 Corrosive Resistant.
Support fasteners	Guidance for specification option: Insert requirements to suit substrate.
Ceiling units	Mineral infill units.
Barriers in ceiling void	-
Fire barriers	Guidance for specification option: Consult manufacturer for options and insert requirements, or omit.
Acoustic barriers	Guidance for specification option: Consult manufacturer for options and insert requirements, or omit.
Plenum barriers	Guidance for specification option: Consult manufacturer for options and insert requirements, or omit.
System accessories	Guidance for specification option: Consult manufacturer for options and insert requirements, or omit.

Dimensions	600 x 600 x 15 mm. Guidance for specification option: Infill unit dimensions: length x width x thickness.
Acceptable relative air humidity	Infill units: 99%.
Sound absorption	Infill units: αw = 0.60; Class C.
Sound attenuation	Infill units: Dnfw = 34 dB.
Reaction to fire	To EN 13501-1, infull units: Euroclass A2-s1, d0.
Weight	Infill units: 3.6 kg/m².

Sustainability data

Contains Red List materials	No
Country of material origin	Europe
Country of product manufacture	United Kingdom
Material	Mineral board
Recyclability	100%.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	44 %
