AS30/1000 profiled sheeting
Verified by manufacturer 25 days ago
AS30/ 1000R
AS30/ 1000R
A 30 mm deep profiled steel cladding sheet for use on roofs and walls.
Application
- Suitable for roof and wall applications.
- Suitable for fixing to steel purlins, spacer bar systems and timber purlins.
- Suitable to be used alongside matching GRP rooflights.
Description
A 30 mm deep profiled steel cladding sheet for use on roofs and walls.
Features and benefits:
- Available in 0.5mm & 0.7mm thicknesses and a variety finishes.
- Profile features 30 mm deep crowns.
- Condensation control fleece internal coating available.
- Allows rapid completion of the weatherproof envelope.
- Suitable for site cutting only when using a reciprocating or circular saw.
- Warranty periods vary with exposure, material and colour, consult manufacturer.
- Purlin centres for 0.5mm & 0.7 mm sheet in typical multispan applications (maximum): 1.8 m. Wider centres may be possible in certain circumstances, consult manufacturer.
- Manufactured under a Quality Management System accredited to ISO 9001 and an Environmental Management System accredited to ISO 14001.
Fixings:
- General: Trough fixing recommended. Stainless steel or carbon steel self drilling screws with press on or integral caps and 16mm or 19 mm EPDM washers.
- To steel: Fixing must pass through the steel section, leaving minimum 5 mm exposed thread.
- To timber: Fixing must achieve a minimum 40 mm fixing embedment.
General information
Color | Grey Black Brown Blue Green Manufacturer guidance
|
Finish | Coated Guidance for specification option: Plastisol PVC(P) 200μm, Polyester SP 25μm, Colorcoat HPS200 Ultra® 200μm, Colorcoat Prisma® 65μm, Colorcoat® LG 200μm, Colorcoat® GP 200μm Embossed Gloss Grained Leather effect |
Material | Other |
Shape | Trapezoid Square Other |
Length | 1000 mm 2000 mm 3000 mm 4000 mm 5000 mm |
Width | 1000 mm Manufacturer guidanceCover width. |
Height | 30 mm |
Warranty description | Manufacturer guidanceSubject to coil material used. For further information please contact the Steadmans Technical team. |
Uniclass | |
CAWS | H31/10 Metal H31/120 Metal H31/40 Lining |
Specification data - Galvanized carbon steel profiled sheets
Standard | |
Material | Carbon steel. |
Profile | |
Depth (overall) | 30 mm. |
Thickness (nominal) | 0.5 mm.Guidance for specification option: 4.57 kg/m² weight. 0.6 mm.Guidance for specification option: Agri-Steel only. 0.7 mm.Guidance for specification option: 6.49 kg/m² weight. Manufacturer guidanceGauge. |
Form | Trapezoidal. |
Dimensions | |

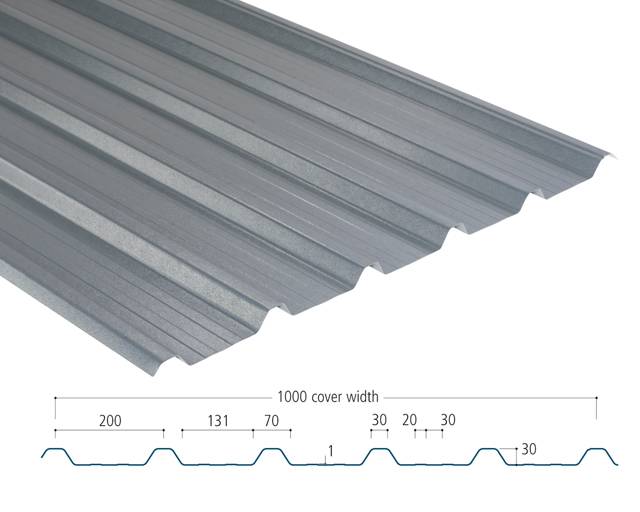

Profile height | 30 mm. |
Valley width | 131 mm. |
Trough width | 70 mm. |
Crown width | 30 mm. |
Pitch | 200 mm. |
Cover width | 1000 mm. |
Top surface (side 1) | |
Top surface finish | Plastisol PVC(P) 200μm.Polyester SP 25μm.Colorcoat HPS200 Ultra® 200μm.Colorcoat® LG 200μm.Colorcoat Prisma® 65μm.Colorcoat® GP 200μm. |
Colour | White (00E55).Goosewing Grey (10A05).Meadowland (12B17).Hamlet (RAL9002).Albatross (18B17).Merlin Grey (18B25).Morland Green (12B21).Honesty (10C31).Wedgewood Blue (18C37).Raven (18B29).Heritage Green (RAL6002).Mushroom (10B19).Ocean Blue (18C39).Anthracite (RAL7016).Olive Green(12B27).Terracotta (04C39).Sargasso (RAL5003).Black (00E53).Juniper Green (12B29).Vandyke Brown (08B29).Manufacturer guidance
|
Reaction to fire | |
External face | (Plastisol): to BS EN13501-1:2018; C-s3,d1; (Polyester): to BS EN13501-1:2018; A2-s1,d0. |
Type | A profiled galvanized steel cladding sheet. |
Suitable for | Roof cladding. |
SurfaceSpreadOfFlame | To BS EN13501-5:2016; Broof t4. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | N/A |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
Single Skin Systems
AS30 Cladding Sheet - Wall
AS30 Cladding Sheet - Roof
