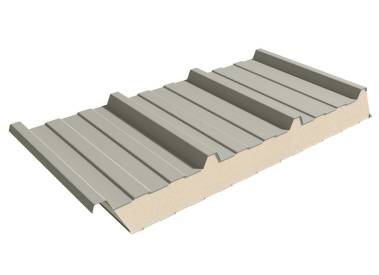

AS35 Composite Roof Panel

Verified by manufacturer 2 months ago

40 mm-thick

Steadmans Variant:

PIR insulated, self-supporting composite panel for roofing.

Jump to:
+44 (0)1697 478277 Website

Application

For roofing applications. AS35 panels are designed to be fixed to steel purlins and side rails using appropriate self-drilling fasteners. They are suitable for a variety of applications, including:

  • Retail parks.
  • Office buildings.
  • Schools.
  • Sports centres.
  • Commercial units.

Description

A self-supporting composite panel suitable for roofing.


Features and benefits:

  • Insulated panel.
  • Available in an extensive range of colours.
  • Plastisol external coating
  • Can be fully integrated with both modern and traditional methods of construction.
  • Polyisocyanurate (PIR) core.
  • CE marked to BS EN 14509:2013 self-supporting double skin metal faced insulating panels.

General information

Color

Other

Black

Blue

Brown

Green

Show more

Finish

Plastisol

Coated

Material

Steel

Polyisocyanurate (PIR)

Composite

Shape

Rectangle

Trapezoid

Length

Bespoke

Guidance for specification option:

Standard lengths 1800–14000 mm.

12000 mm

2000 mm

Width

1000 mm

Manufacturer guidance

Cover width.

Height

40 mm

60 mm

70 mm

80 mm

100 mm

Show more

Manufacturer guidance

Panel thickness.

Warranty description

25 year

Guidance for specification option:

System guarantee.

Uniclass

Pr_25_71_14_22 Carbon steel insulating sandwich panelsPrimary

CAWS

H43/10 Metal insulating sandwich panel

H43/120 Metal insulating sandwich panel

Specification data - Carbon steel insulating sandwich panels

Standard

To BS EN 14509.

Panels

Factory-assembled insulating sandwich panels.

Panel construction

-

Panel external face

-

Material

Steel.

Profile

-

Manufacturer guidance

Consult manufacturer for details.

Thickness

0.5 mm.

Panel internal face

-

Material

Steel.

Profile

-

Manufacturer guidance

Consult manufacturer for details.

Thickness

0.4 mm.

Core insulation

Rigid polyisocyanurate foam (PIR).

Panel dimensions

-

Length

Guidance for specification option:

Insert requirements.

  • Available in lengths between 1800 mm to 14000 mm as standard.
  • Short sheets under 1800 mm and longer sheets up to 22000 mm are available at additional cost.
  • Consult manufacturer for details.

Cover width

1000 mm.

Thickness

40 mm.

Joint type

-

Side or vertical

-

Manufacturer guidance

Consult manufacturer for details and insert requirements.

End or horizontal

-

Manufacturer guidance

Consult manufacturer for details and insert requirements.

Curvature

-

Manufacturer guidance

Consult manufacturer for details and insert requirements or omit.

Taper

-

Manufacturer guidance

Consult manufacturer for details and insert requirements or omit.

Finish as delivered

-

Outer skin

-

Material

Plastisol PVC (P).

Thickness

-

Manufacturer guidance

Consult manufacturer for details.

Colour

-

Manufacturer guidance

Extensive colour range.

Consult manufacturer and insert requirements.

Inner skin

-

Material

Polyester.

Thickness

-

Manufacturer guidance

Consult manufacturer for details.

Colour

White.

Integral accessories

-

Manufacturer guidance

Consult manufacturer for details and insert requirements or omit.

Special features

Self-supporting and capable of spanning supports at 1.5–3.0 m centres.

Fire performance

-

Reaction to fire

-

Core

To BS EN 13501-1: B-s2,d0.

Panel external face

To BS EN 13501-5: Broof(t4).

Panel internal face

To BS EN 13501-1: B-s2,d0.

Fire resistance

-

Manufacturer guidance

Consult manufacturer for details.

Fire performance

Guidance for specification option:

  • AS35 panels have passed the test requirements of LPS 1181:2005; the testing standard of the Loss Prevention Certification Board (LPCB) and have Grade EXT-B and EXT-A approval.
  • Consult manufacturer's literature and insert requirements.

Manufacturer guidance

Fire Performance to LPS 1181:2005.

U-value

0.50 W/m²K.

Span

Single span.

Double span.

Manufacturer guidance

Consult manufacturer's literature for details.

Sustainability data

Country of product manufacture

United Kingdom

Material

Steel

Polyisocyanurate (PIR)

Composite
