AssistCall Master Station - Emergency Assist Alarm call - Emergency Voice Communication System
Verified by manufacturer 10 days ago

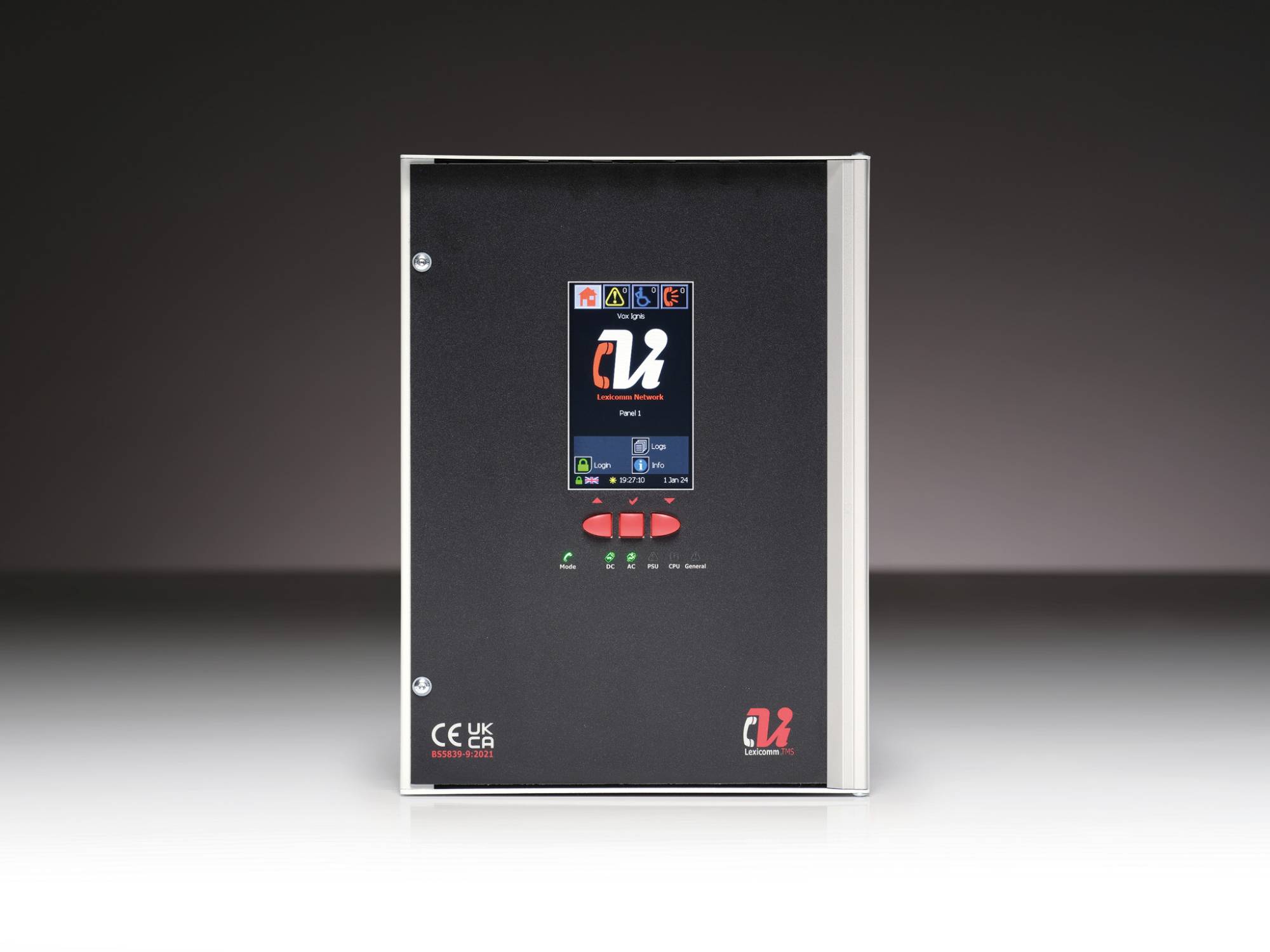

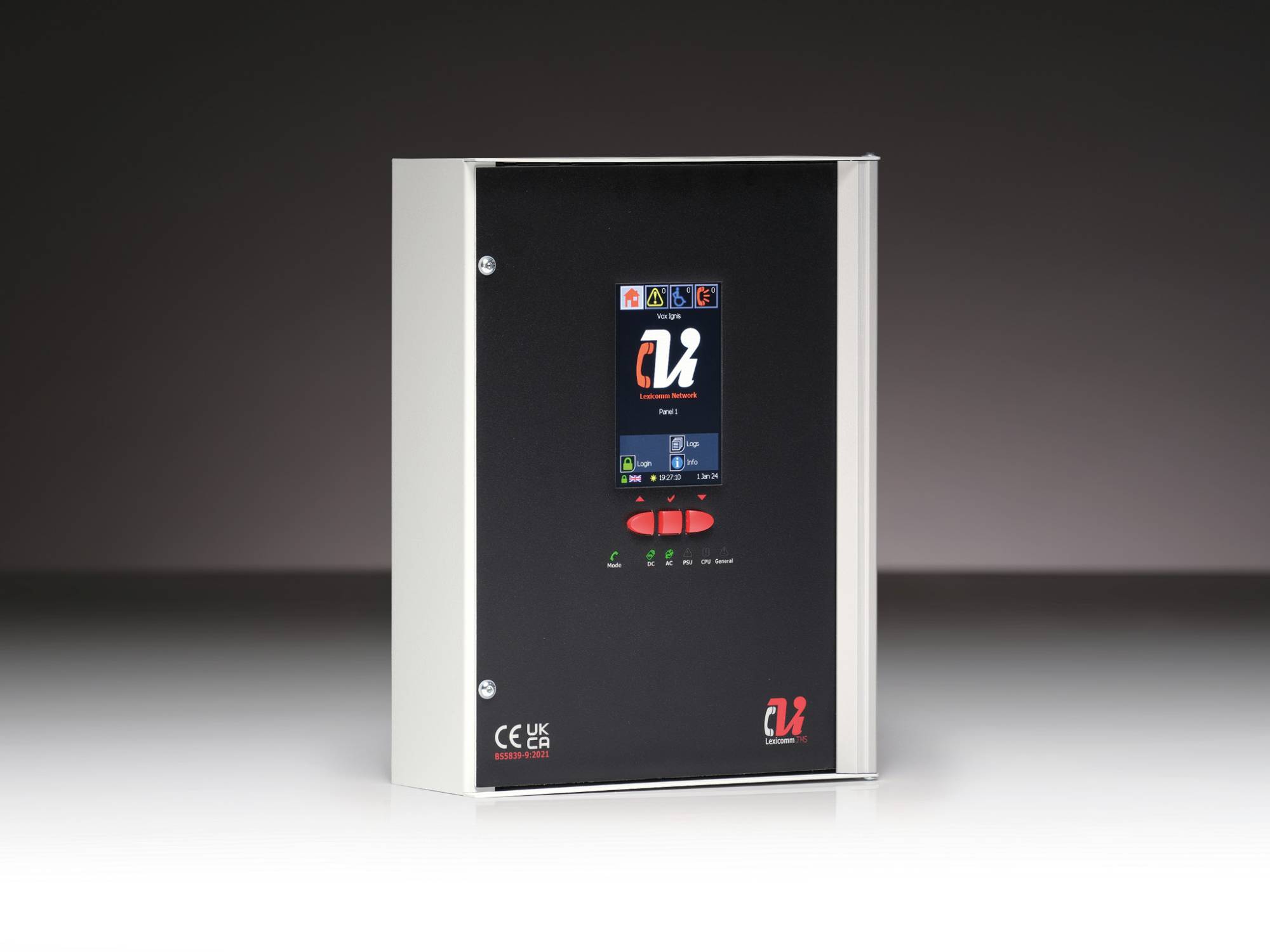

4.3" touchscreen master station for indicating assist calls with eight EVCS lines.
Application
Suitable to control or coordinate the activities of other stations in the system.
Description
The Lexicomm ViLX-ACM3 Master station can accept and display Emergency Assist Alarm calls on combined networks. The unit can additionaly accept up to eight lines of outstation, (Type A fixed phones, Type B refuge hands free points, emergency assist alarm point or jack points in Far East and Middle East applications) as required.
The touch-screen layout has four buttons allowing quick access to the main functions, and permanently displaying the number of current calls, alarms and faults.
Features and benefits:
- Fully programmable.
- Emergency assist alarm calls can be acknowledged by pressing the Icon on screen (as required by BS8300) and will return to alarm if not reset within two minutes.
- In built networking allowing it to form one of the 64 panels on a Lexicomm network installation allowing a total of 512 outstations to be accommodated.
- Each panel can be a master station or ViLX-EX8 network expander.
General information
Color | Black Silver |
Finish | Powder-coated |
Material | Zintec steel Guidance for specification option: Stainless steel. |
Shape | Rectangle |
Length | 95 mm |
Width | 220 mm |
Height | 300 mm |
Warranty description | 18 months |
Uniclass |
Product range |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Zintec steel Guidance for specification option: Stainless steel. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
