Astralite® eLite Ceiling

Verified by manufacturer 24 days ago

Brandon Medical Co Ltd Third party certifications:
  • ISO 9001 Quality Management

    Certificate type

  • QA Certificate

    QA Certificate

    Certificate type

  • IEC International Standards

    IEC International Standards

    Certificate type

  • Certificate of Conformity

    Certificate type

HD-LED Minor Surgical Lighting.

Jump to:
BOS
+44 (0)113 277 7393 Website

Application

Lighting suitable for surgical environments.

Description

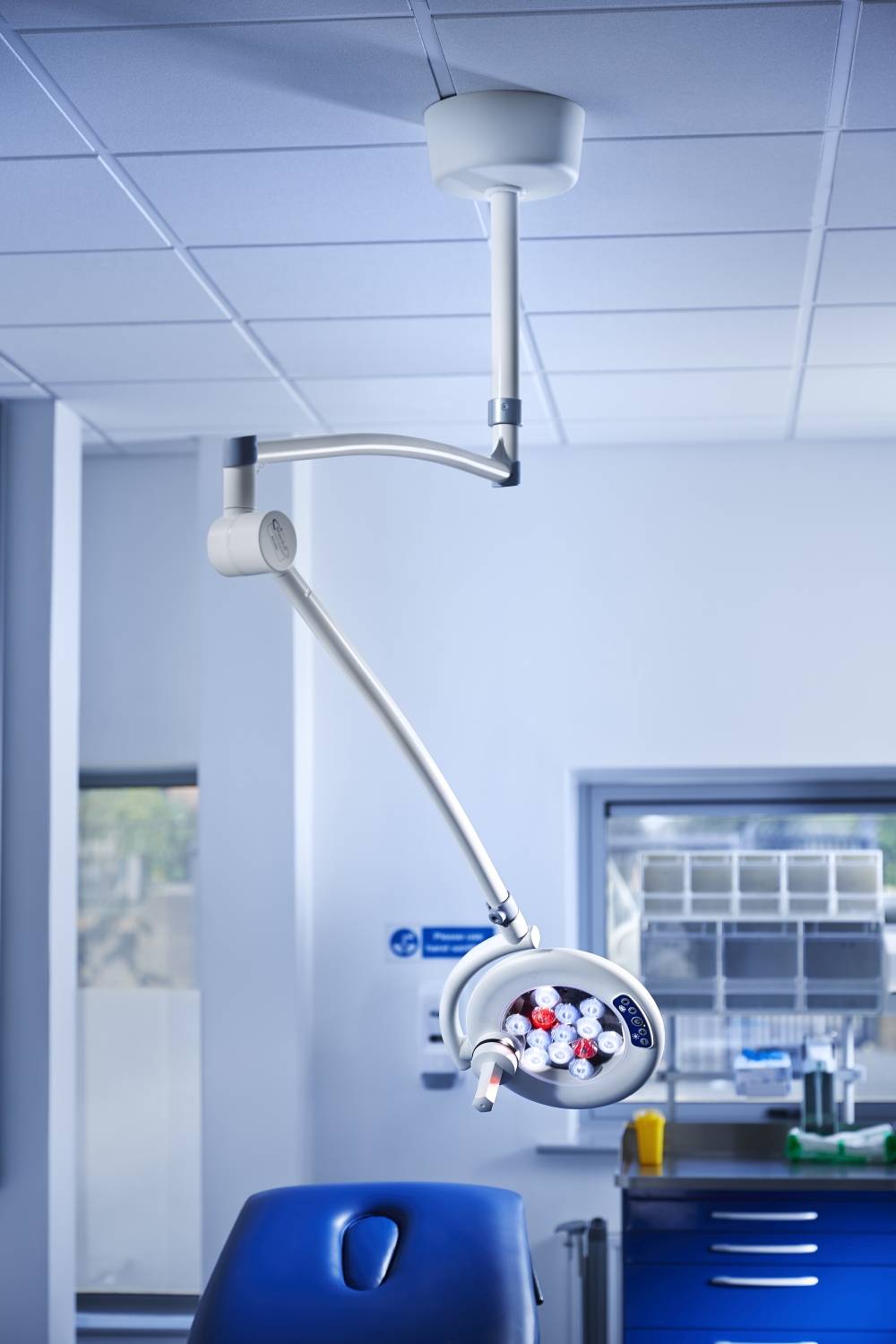

Astralite® HD-LED Minor Surgical Lighting.


Features and benefits:

  • Clear and simple wipe clean controls provide adjustments of intensity and colour, whilst the field size can be adjusted to suit the surgical site using the ergonomic handle.
  • “Auto On” feature turns the light on as soon as the user touches any control.
  • Up to 100 000 lux of intense bright light at 1 m providing ample light for even the most demanding procedure.
  • A large illuminated area of 180 mm diameter makes it easy to illuminate large areas of tissue and to target the light on to the wound.
  • The beams of light have a focus depth of 600 mm to penetrate into deep cavities.
  •  Astralite® reproduces all of the visible colours naturally and accurately with Ra>95 and R9>95.

General information

Color

White

Finish

Anti-microbial

Material

Plastic

Shape

Circle

Length

1800 mm

Width

335 mm

Height

1150 mm

Warranty description

Five year

Uniclass

Pr_70_70_46_78 Self-ballasted LED lampsPrimary

CAWS

V90/510 Luminaires

Specification data - Self-ballasted LED lamps

Standards

To EN 60601-1 and EN 60601-2-41.

Third-party certification

CE marked.

Guidance for specification option:

(93/42/EEC) including amendments 2007/47/EC.

Cap type

LED Fixed.

Wattage

<32 VA.

Colour temperature

3500–5000ºK.

Guidance for specification option:

Six steps.

Colour rendering index (Ra)

>95.

Rated life (minimum)

> 50 000 hours.

Guidance for specification option:

LED luminaires useful life.

Initial lumens (minimum)

100 000 lux.

Rated lamp efficacy (minimum)

260 lm/W.

Dimmable

Yes.

Product Reference

Astralite® eLite Ceiling

Input voltage

100–240 Vac.

Power consumption

<32 VA.

Dimensions

250 mm.

Frequency

50/60 Hz.

Sustainability data

Contains Red List materials

No

Country of material origin

-

Manufacturer guidance

Varies.

Country of product manufacture

United Kingdom

Material

Plastic

Recyclability

-

Manufacturer guidance

Recyclable.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

1

Revit

Revit 2017

1

Third party certifications

ISO 9001 Quality Management

ISO 9001 Quality Management

BQAI ISO 9001-2015

QA Certificate

QA Certificate

EN ISO 13485 2016 Certificate

IEC International Standards

IEC International Standards

Test Report Safety Testing of Astralite 10 Telescopic Light

IEC International Standards

IEC International Standards

EN60601-2:2015

Certificate of Conformity

Certificate of Conformity

Declaration of Conformity EU MDR_Astralite EUDoC005 [Rev 7] 18 Oct 2024

QA Certificate

QA Certificate

BS EN ISO 13485
