Astro Electric Combi Boiler - Electric Combi Boiler

Verified by manufacturer 5 months ago

12 kW - ASTRO12KW.v2

Electric Heating Co Ltd Variant:
Third party certifications:
  • UK Conformity Assessed (UKCA)

    UK Conformity Assessed (UKCA)

    Certificate type

Outputs from 12 kW to 30 kW for heating on demand and instantaneous domestic hot water.

Jump to:
+44 (0)1698 820533 Website

Application

  • Single phase outputs are suitable for small properties that have wet central heating, a shower and hot water outlets for sinks.
  • Not suitable for properties with baths unless using the 3 phase option 24kW or 30kW.
  • Suitable for underfloor heating.
  • The Astro boiler requires additional straight valves (bottom connections) which play an essential role during the installation of your Astro Electric Combi Boiler.
  • The straight valves do not come as standard with the boiler, these should be sourced separately.

Description

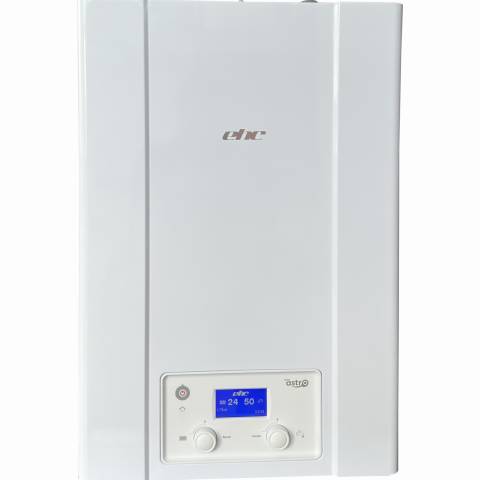

Introducing our new Facelift model of the Fusion Astro Electric Combi Boiler! With enhanced features, it offers an even better heating experience.


The graphical LCD display makes operation intuitive and user-friendly, providing clear information for easy adjustments. The built-in programmer allows you to set heating schedules and customise heating patterns for personalised comfort.


Equipped with a Weather Compensator, the boiler automatically adjusts output for optimal efficiency and year-round comfort. The advanced diagnostic system ensures quick troubleshooting and minimal downtime, simplifying maintenance for service engineers. Our Facelift model also caters to the use of external 3rd party programmers or Smart Controls. This means that if you prefer to integrate your boiler with other smart home systems or utilise specific third-party programmers, you have the freedom to do so.


This Electric Combi Boiler provides a very cost effective alternative to electric storage heating, oil, solid fuel or LPG systems. It is the perfect solution to properties with no access to mains gas supply and homes which have gas boiler restrictions e.g. listed buildings and bed-sit sleeping areas. Not only is the Electric Boiler the ideal choice for wet central heating but is also suited to Underfloor Heating.


The Electric Boiler outputs are 12kW & 14.4kW Single Phase, and 24kW & 30kW Three Phase. The operating temperatures of the boiler can be adjusted using the easy to use Control Panel which boasts a LED display – the temperature outputs range from 30°C-60°C (Hot Water) and 30°C-80°C (Heating).


With superior performance and reliability, the Fusion Astro Electric Combi Boiler provides on demand heat and instantaneous domestic hot water. They are suitable for small Properties that have a Shower and Hot Water outlets for sinks. In homes with larger hot water requirements, it can be combined with a hot water storage cylinder via an ‘S’ Plan configuration.


Consumption of the Astro Boiler is highly efficient, due to its superior inner design. With no flue requirement the Electric Combi Boiler rapidly provides Heating and Domestic Hot Water.


If 3Phase Electricity is available our 24 & 30Kw Astro Boilers would have sufficient flow rates to fill a Bath in a suitable timescale.


Features and benefits:

  • Available in 12 kW and 14.4 kW in single phase, then 3 phase 24 kW and 30 kW outputs.
  • Compact design.
  • 100% efficient.
  • Supply of domestic hot water at constant set temperature.
  • Advanced Diagnostic for Service Engineer
  • Rapid heat up times.
  • Three bar safety protection.
  • Safe operation wit automatic manual air vent.
  • Pressure gauge.
  • Low system pressure warning.
  • Wilo Smart ErP circulation pump.
  • Internal RCD protection.
  • Internal automatic by-pass.
  • Fully modulating control system.
  • Compatible with volt free external programmers.
  • Limit thermostat protection.
  • Automatic pump run to prevent sticking.
  • Large LCD screen.
  • Low running noise.
  • Single phase and three phase boilers available.
  •  Can be installed on internal walls as there is no flue required.
  • 5 year warranty. T&C's apply.


Think advanced heating technology with our range of Electric Boilers and Combination Units, offering a seamless blend of efficiency and innovation. Our Electric Combination Boilers bring reliable heating and hot water solutions to your home. Dive into the world of Electric Heating with our Electric Water Heaters and Electric Water Boilers, ensuring instant and consistent hot water on demand. Whether you're in need of a Water Boiler for domestic use or a Central Heating Boiler for comprehensive home warmth, our UK boiler cater to all your heating needs. Explore the cutting-edge EHC products in our collection, designed to provide efficient and sustainable heating solutions. Elevate your comfort with our Hot Water Boilers, ensuring a cozy and warm home environment.

General information

Color

White

Finish

Gloss

Material

Aluminium

Shape

Rectangle

Length

274 mm

Width

440 mm

Height

650 mm

Warranty description

Five year

Manufacturer guidance

5 Years T's & C's

Uniclass

Pr_60_60_08_27 Electric boilersPrimary

CAWS

T90/322 Boilers, electric

Specification data - Electric boilers

Boiler type

Combi.

Output

12 kW.

Energy efficiency rating

D (heating).
A (hot water).

Mounting

Wall-mounted.

Operating pressure

3.0 bar (heating).
6.0 bar (hot water).

Operating temperature

30℃ to 80℃ (heating)
30℃ to 60℃ (hot water).

Electrical supply type

Single-phase.

Guidance for specification option:

230 V, 50 Hz.

Accessories

Not required.

Astro Compliance Installation Pack - ASTRO-PACK.

Guidance for specification option:

Includes all the key components required to ensure a hassle free and professional install of the Astro Combi Boiler.

Dimensions

740 x 435 x 320 mm.

Manufacturer guidance

Overall height x width x depth.

Weight

38 kg.

Output

5 L/min.

Manufacturer guidance

Hot water output (ΔT = 30℃).

Capacity

40968 Btu.

Manufacturer guidance

Heating capacity.

Pipes

3/4" (heating).
1/2” (hot water).

Manufacturer guidance

Heating circuit/ domestic hot water pipe connections.

Current

52 Amp.

Manufacturer guidance

Load/ Current.

Protection

63 Amp.

Manufacturer guidance

Circuit protective device.

Sustainability data

Contains Red List materials

No

Country of material origin

Turkey

Country of product manufacture

Turkey

Recyclability

Recyclable

Guidance for specification option:

All product and nearly all packaging is recyclable, there is a small amount of polystyrene within the packaging which is non-recyclable.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

90 %

Third party certifications

UK Conformity Assessed (UKCA)

UK Conformity Assessed (UKCA)

CE ASTRO ELECTRIC COMBI CERTIFICATE
