Atlas Concealed Pneumatic Cistern with Chrome Flush Plate
Verified by manufacturer today

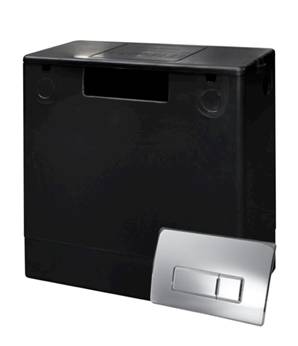

Concealed cistern with chrome flush plate.
Application
For bathroom furniture and in-wall installations.
Description
A concealed cistern for bathroom furniture and in-wall installations. Features a water-saving dual flush valve and delayed action inlet valve. The pack includes a chrome effect push plate.
Features and benefits:
- Two inch outlet.
- Pneumatic dual flush.
- Left or right-handed flush.
- Access to the top and front.
- Fittings and flushpipe included.
- 1.5 m air hose.
General information
Color | Black |
Finish | Chrome |
Material | Plastic |
Shape | Rectangle |
Height | 320 mm |
Uniclass | |
CAWS | N13/10 WC pans and flushing arrangements N13/300 WCs and cisterns |
Specification data - WC cisterns
Form | Concealed. |
Operation | Push button. |
Materials | |
Body | Plastics. |
Finish and colour | Black. |
Capacity | 6/5L.5/3 L.4/2.6 L. |
Water supply, overflow and outlet holes | |
Water supply | Side inlet. |
Integral accessories | Chrome effect push plate, fittings, flushpipe, 1.5 m air hose. |
Sustainability data
Material | Plastic |
Literature
Atlas Pro Concealed Pneumatic Air Gap Cistern & Push Plate Data Sheet
