Automatic Filling Unit
Verified by manufacturer 27 days ago

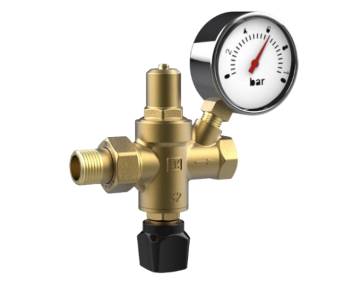

PE112.R.04 - 1/2" Female Bsp With Pressure Gauge
PE112.R.04 - 1/2" Female Bsp With Pressure Gauge
Automatic filling unit consisting of a pressure reducing valve with shut off valve and check valve.
Application
Suitable for use in water supply pipe work for heating systems.
Description
The automatic filling unit PE111R is used in water supply pipe work for heating systems. Consisting of a pressure reducing valve with shut off valve and check valve, it maintains a stable pressure in the whole heating system, and when needed, automatically feeds water into the system.
Features and benefits:
- Built-in filter, stop cock and check valve DN15 – ½”F x ½”M UNION.
- With or without pressure gauge.
- All threads are conform to ISO 228.
General information
Color | Gold |
Finish | Brass |
Material | Brass Rubber Stainless steel |
Shape | Other |
Length | 122 mm |
Height | 140 mm |
Warranty description | Five year |
Uniclass | |
CAWS | T90/425 Valves generally S90/620 Valves generally S90/140 Direct hot water storage supply S90/150 Indirect hot water storage supply S14/393 Pressure regulators |
Specification data - Pressure-regulating valves
Form | Water pressure-reducing. |
Adjustment | Adjustable. |
Operating conditions | |
Temperature (maximum) | 80oC. |
Maximum working pressure | 1.6 MPa. |
Non-adjustable set pressure | 1.5 bar. |
Connections | Threaded to BS EN ISO 228-1. |
Accessories | Manufacturer guidanceConsult manufacturer and insert requirements or omit. |
Pressure Gauge | With pressure gauge. |
Height | 140 mm. |
Length | 122 mm. |
Weight | 0.77 kg. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | Italy |
Material | Brass Rubber Stainless steel |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
