Automatic Rising Bollards - Bollards, parking control
Verified by manufacturer 6 months ago
Height: 600 mm
Height: 600 mm

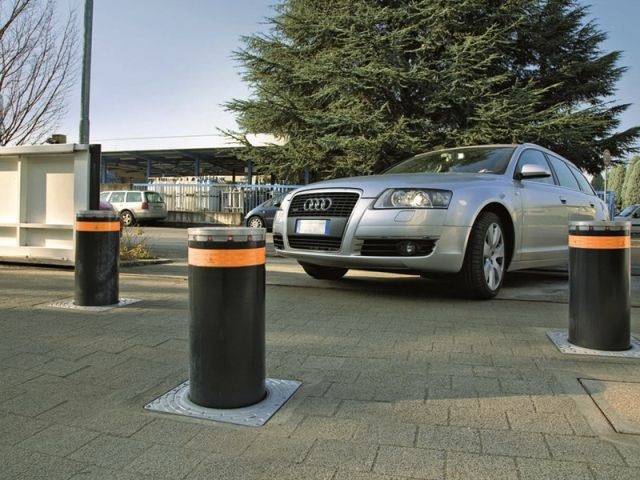

Automatic, rising hydraulic bollards.
Application
Commercial premises; education; driveways.
Description
Beaufort automatic, rising hydraulic bollards.
Features and benefits:
- Available in two heights.
- Activated by any access control system or signalling device.
- Fully integrated hydraulic technology for heavy-duty usage.
- With a standard descent time of 2.8 seconds, there is an extra setting that activates the emergency-release valve and allows a descent time of one second.
- Alternative solution to fixed posts and barriers, allowing regulation of traffic in certain zones with high-vehicle flow (e.g. restricted areas, pedestrian areas, parking and industrial sites, and many more).
General information
Color | Black |
Finish | Powder-coated |
Material | Steel Guidance for specification option: FE 360. |
Shape | Other Guidance for specification option: Cylindrical. |
Width | 275 mm |
Height | 600 mm 800 mm |
Warranty description | 25 year Guidance for specification option: Jacksons' Service Life guarantee provides cover against defects such as design, manufacturing finish and fitness for purpose: consult manufacture for details. 25 month automation guarantee with service contract in second year. |
Uniclass | |
CAWS | Q50/31 Bollards Q50/194 Retracting bollards Q50/190 Bollards |
Specification data - Carbon steel rising bollards
Automation | |
Method of operation | Hydraulic.Guidance for specification option: Fully integrated hydraulic technology for heavy-duty usage; descent time of 2.8 seconds. |
Electrical supply | 230 V a.c. +6% -10%; 50 Hz. |
Controllers | Access control systems.Signalling device. |
Dimensions | |
Size and profile | 275 mm diameter. |
Height | 600 mm. |
Finishes | |
Applied finish | Polyester powder-coated, RAL 9005.Steel FE 360. |
Accessories | Guidance for specification option: Consult manufacturer for details and insert requirements. |
Power consumption | 220 W. |
Rising speed | ~5 seconds. Manufacturer guidanceRising time. |
Speed | ~2.8 seconds. Manufacturer guidanceDescent time. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Steel Guidance for specification option: FE 360. |
Literature
Automatic Rising Bollards Spec Sheet
Case studies
Access control for Tonbridge School
