Application

Suitable for use with all door types.

Description

A range of universal floor springs designed for medium weight doors, available in two strengths.


Features and benefits:

  • FS6000 is a universal floor spring providing a solution for left and right doors.
  • FS6000 – floor spring – doors up to 150 kg.
  • Double action operation available.
  • Dependent on the application “no hold” and 90 degree “hold open” available.
  • Full hydraulic control.
  • Closing range of 180-15 degrees.
  • Latching range 15-0 degrees.
  • Extended spindle inserts – catering for all door types.

General information

Color

Silver

Finish

Zinc plated

Material

Steel

Shape

Other

Warranty description

Other

Guidance for specification option:

30 months.

Uniclass

Pr_30_36_36_29 Floor springsPrimary

CAWS

P21/14 Floor springs

P21/450 Floor springs

Specification data - Floor springs

Materials and finishes

Steel, zinc plated.

Colour

Silver.

Floor spring

FS-6001-00-NS Floor Spring.

Guidance for specification option:

Size 1, no hold open.

FS-6001-90-NS Floor Spring.

Guidance for specification option:

Size 1, hold open.

FS-6002-00-NS Floor Spring.

Guidance for specification option:

Size 2, no hold open.

FS-6002-90-NS Floor Spring.

Guidance for specification option:

Size 2, hold open.

Dimensions

291 x 78 x 50 mm.

Manufacturer guidance

L x W x D.

Door width

Guidance for specification option:

Insert requirements.

  • Size 1 (light spring strength): Up to 800 mm (15 Nm closing force).
  • Size 2 (medium spring strength): 800–1200 mm (28 Nm closing force).

Weight

150 kg.

Manufacturer guidance

Door weight.

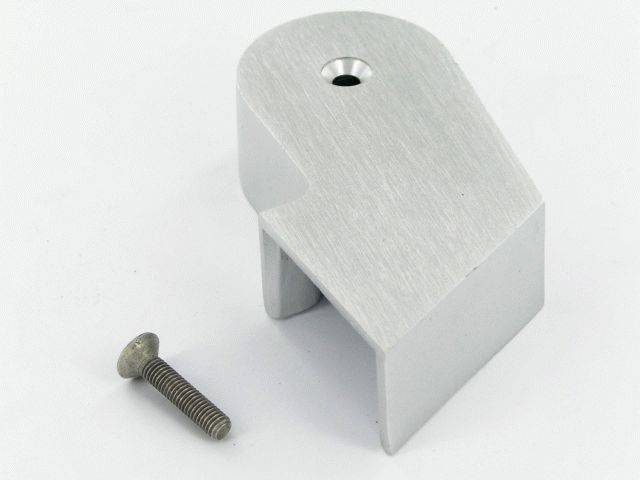

Aluminium cover

FS-6000-00-L.

Guidance for specification option:

Single action offset strap, left hand, mill finish.

FS-6000-00-R.

Guidance for specification option:

Single action offset strap, right hand, mill finish.

FS-6000-01-L.

Guidance for specification option:

Single action offset strap, left hand, silver finish.

FS-6000-01-R.

Guidance for specification option:

Single action offset strap, right hand, silver finish.

FS-6000-02-L.

Guidance for specification option:

Single action offset strap, left hand, dark bronze finish.

Show more

Coverplate

FS-6000-0158.

Guidance for specification option:

Stainless steel, 58 mm pivot point.

FS-6000-0258.

Guidance for specification option:

Bronze, 58 mm pivot point.

FS-6000-0358.

Guidance for specification option:

Brass, 58 mm pivot point.

FS-6000-0165.

Guidance for specification option:

Stainless steel, 65 mm pivot point.

Manufacturer guidance

Cover plate finish:

  • Anodized: Available in two finishes.
  • Mill finish: For powder coating by others after purchase.

Cover plate:

  • Finish: Brass, bronze or stainless steel.
  • Pivot point: 58 mm (all finishes) and 65 mm (stainless steel only).
  • Stainless steel, 58 mm pivot point is a stock item – the other cover plates are not always held in stock and are subject to special order and delivery.

Door strap

FS-6000-13F.

Guidance for specification option:

Straight strap.

FS-60000-16.

Guidance for specification option:

36 mm offset.

Manufacturer guidance

  • Straight strap: Single or double action, centre hung.
  • 36 mm offset: Single action, non handed.

Spindle insert

FS-6000-STD.

Guidance for specification option:

Standard spindle.

FS-6000-125.

Guidance for specification option:

12.5 mm spindle.

FS-6000-200.

Guidance for specification option:

20 mm spindle.

FS-6000-250.

Guidance for specification option:

25 mm spindle.

FS-6000-NT-DA.

Guidance for specification option:

N.T. double action, standard.

Show more

Manufacturer guidance

Available for Axim, N.T., Gibbons and Speedy fittings.

Top centre

FS-4000-0114.

Guidance for specification option:

Retractable.

FS-6000-16T.

Guidance for specification option:

36 mm offset.

Manufacturer guidance

  • Retractable: Single or double action, centre hung.
  • 36 mm offset: Single action, non handed.

Accessories

Not required.

Spindle insert extension.

Guidance for specification option:

Spindle insert extensions: Available up to 50 mm, suitable for all types of doors.

Sustainability data

Contains Red List materials

No

Country of material origin

Taiwan

Country of product manufacture

Taiwan

Recyclability

Recyclable at end of life
