Axxess Abseil

Verified by manufacturer 3 months ago

ADA-RHS-1745

Bettersafe International Variant:

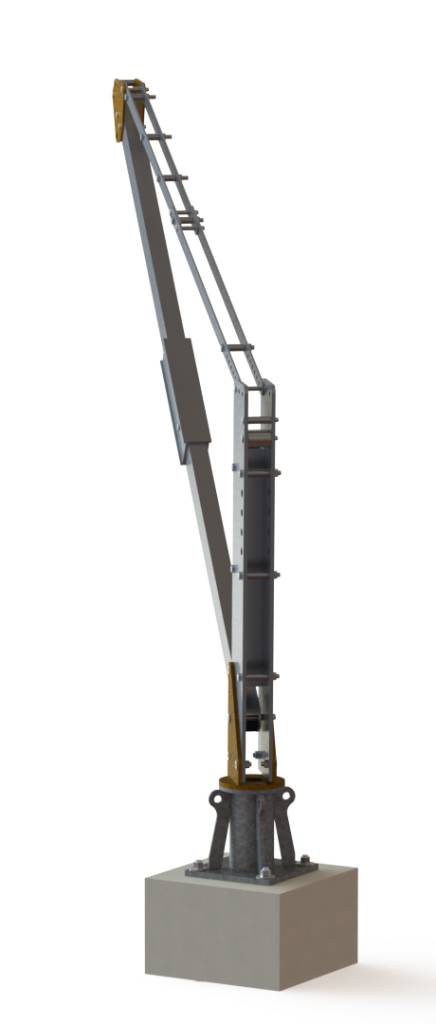

Aluminium davit arm for rope access, used to re-direct ropes from anchorage locations.

Jump to:
+ 44 (0)1260 217437 Website

Application

The range is intended to be used for:

  • A rope access re-direction point (arm).
  • A rope access direct anchorage (socket).
  • The lifting of goods.
  • The lifting of persons.
  • Providing a safety anchor for the prevention of falls (socket).

Description

Aluminium davit arm for rope access, used to re-direct ropes from anchorage locations.


Features and benefits:

  • Designed to be used as a re-direction anchor for live and back up systems.
  • Maximum reach of 1957 mm.
  • 360º rotation.
  • For use with surface mount or flush mount sockets.


The system complies with the current standards and requirements:

  • EN 795: 2012;
  • CEN / TS 16413: 2016;
  • BS 8610: 2017.

Tested independently by SATRA.

General information

Color

Silver

Blue

Bronze

Material

Aluminium

Stainless steel

Steel

Width

1957 mm

1745 mm

1457 mm

Height

2008 mm

2238 mm

2435 mm

2558 mm

Warranty description

Two year

Uniclass

Pr_40_70_75_21 Davit armsPrimary

CAWS

N25/210 Personal fall protection equipment

N25/10 Personal fall protection equipment

Specification data - Davit arms

Standard

EN 795:2012; CEN / TS 16413:2016; BS 8610:2017; IRATA (ICOP).

Loading (maximum)

-

Carrying capacity

One user.

Safe working load

429 kg.

Guidance for specification option:

Working load limit.

Mode of operation

Manual.

Dimensions

-

Height (maximum)

2558 mm.

Guidance for specification option:

At minimum reach (1568.1 mm).

Minimum: 1762 mm.

Reach (maximum)

1745 mm.

Guidance for specification option:

At minimum height (1762 mm).

Minimum: 1568.1 mm.

Manufacturer guidance

Consult manufacturer's literature for further details.

Material

Aluminium; stainless steel; steel.

Factory finish

-

Coating

Manufacturer's standard.

Colour

Silver/ blue.

Guidance for specification option:

Arms/ plates.

Film thickness (minimum)

Manufacturer's standard.

Socket

ADA-002 galvanised steel surface mount.

Guidance for specification option:

With locking locations, cap and insert.

ADA-003 galvanised steel cast in flush mount.

Guidance for specification option:

With locking locations, cap and insert.

ADA-004 galvanised steel resin in flush mount.

Guidance for specification option:

With locking locations, cap and insert.

ADA-005 galvanised steel cast in flush mount.

Guidance for specification option:

With cap and insert.

ADA-006 galvanised steel resin in flush mount.

Guidance for specification option:

With cap and insert.

Show more

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Literature

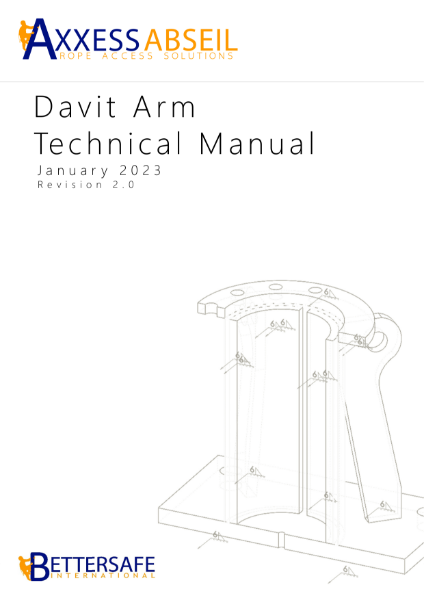

AxxessAbseil Technical Data

AxxessAbseil Technical Data

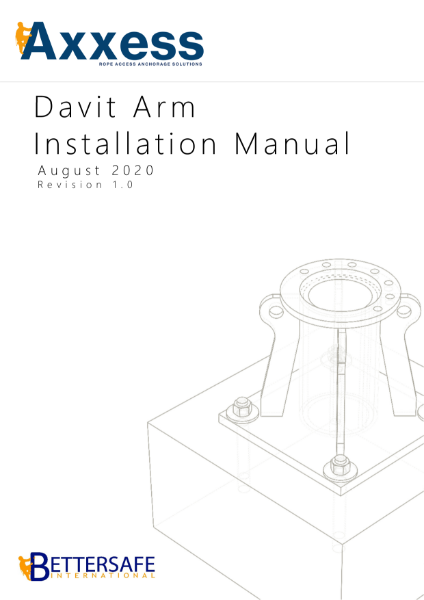

AxxessAbseil Socket Installation

AxxessAbseil Socket Installation

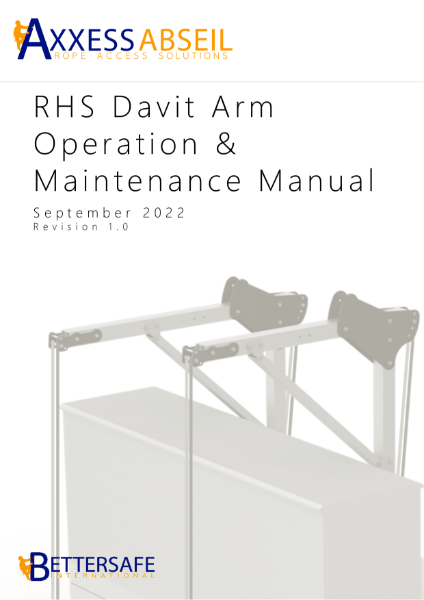

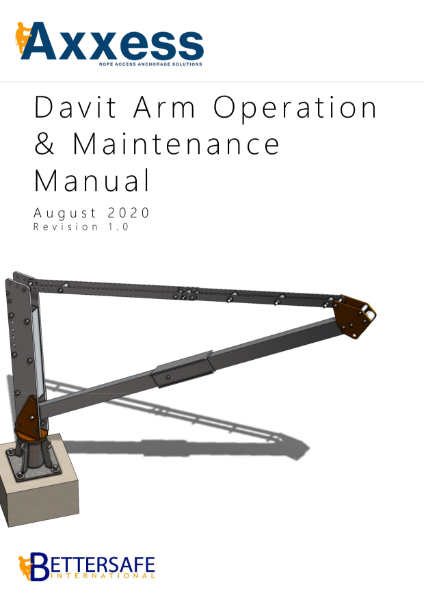

AxxessAbseil RHS O&M

AxxessAbseil RHS O&M

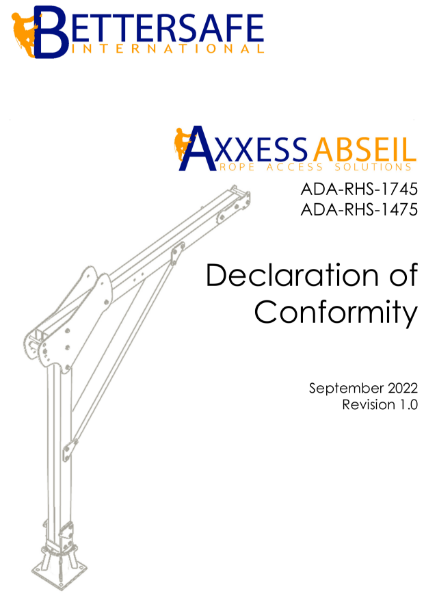

AxxessAbseil RHS Davit Arm Declaration of Conformity

AxxessAbseil RHS Davit Arm Declaration of Conformity

AxxessAbseil O&M - Long Reach O&M

AxxessAbseil O&M - Long Reach O&M

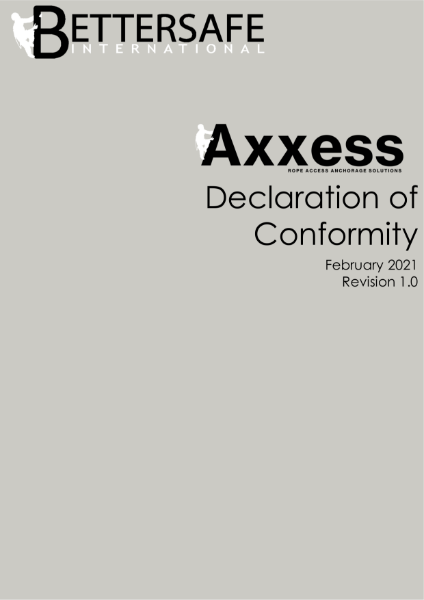

AxxessAbseil Declaration of Conformity

AxxessAbseil Declaration of Conformity

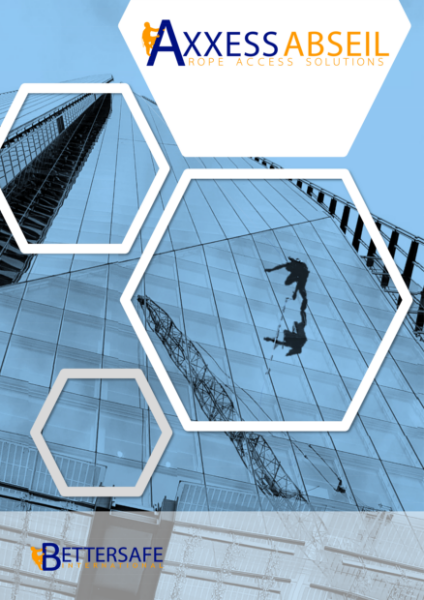

AxxessAbseil Brochure
