AxxessGuard - Edge Protection Systems - Barrier System

Verified by manufacturer 3 months ago

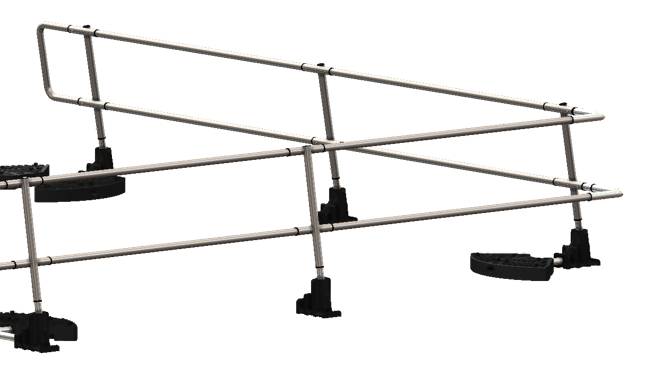

Freestanding for flat roofing

Bettersafe International Variant:
Third party certifications:
  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 45001 Health and Safety Management

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

Modular, pre-galvanised steel guardrail safety system.

Jump to:
+ 44 (0)1260 217437 Website

Application

Suitable for installation and use on new and existing buildings with working platforms, roofs or technical terraces having slopes between 0° and 30° and no public access. A foldable option is available.


Designed for compatibility with Kingspan roofing systems:

  • Standing seam roofing systems
  • Composite roofing systems
  • Composite panels
  • Built up roofing systems
  • Secret fix roofing systems
  • Polymeric single ply membrane roofing systems
  • Bituminous membrane roofing systems
  • Concrete and masonry roofing systems
  • Wall mounted to steel structure
  • Wall mounted to concrete and masonry

Description

Modular, pre-galvanised steel guardrail safety system.


Features and benefits:

  • Lightweight, high-quality construction.
  • Suitable for installation and use on new and existing buildings with working platforms, roofs or technical terraces having slopes between 0° and 30° and no public access.
  • A foldable option is available.
  • Comprising foldable or raked uprights, with hand and knee rails, all connected via grub screws and clamps to allow fast assembly and accurate level adjustment.
  • No requirement for drilling, the system is mounted directly on the platform/roof.
  • Designed and tested to the requirements of EN 13374 class A and class B, BS 13700 and EN 14122-3.

General information

Color

Silver

Other

Guidance for specification option:

Optional powder coating.

Finish

Galvanized

Powder-coated

Material

Steel

PVC-U

Shape

Other

Length

Bespoke

Width

Bespoke

Height

1100 mm

Warranty description

15 year

Uniclass

Ss_25_15_60_53 Metal pedestrian parapet systemsPrimary
Ss_25_15_60_52 Metal modular barrier systems

CAWS

L30/560 Proprietary balustrades

L35/170 Guarding system

L30/55 Proprietary balustrades

Specification data - Metal pedestrian parapet systems

Standard

To EN 13374 class A and class B, BS 13700 and EN 14122-3.

Preparatory work

To system manufacturer’s recommendations.

Posts

AG-001 standard freestanding legs.

Guidance for specification option:

48 and 54 mm diameter pre-galvanized steel tube and recycled PVC.

Manufacturer guidance

To be placed every 2500 mm.

Post foundations

AG-002 weights with AG-006 double weight connectors.

Guidance for specification option:

Recycled PVC. Two at each end (via AG-006) and at 5 m intermediate intervals.

Rails

AG-003 rails.

Guidance for specification option:

48 mm diameter tubular section, 2500 mm long per section. Pre-galvanized.

System accessories

AG-005 D-ends.

Guidance for specification option:

Termination for each run.

Pre-galvanized steel.

AG-004 90° corners.

Guidance for specification option:

54 mm pre-galvanized steel tube.

AG-007 variable corner brackets.

Guidance for specification option:

For corners 90–180°.

Galvanized steel.

AG-008 self-closing gate.

Guidance for specification option:

Galvanized steel.

AG-015 rail joiner.

Guidance for specification option:

54 mm pre-galvanized steel tube.

Fixing

Not applicable.

Colour/ Finish

Standard (galvanized).

Powder-coating, RAL.

Guidance for specification option:

Insert requirements; coating to all parts to specified RAL where required.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

1.37 kg CO₂ eq/kg

Self declared

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

30 %

Third party certifications

Third party certifications

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

ISO 14001

ISO 45001 Health and Safety Management

ISO 45001 Health and Safety Management

ISO 45001:2018

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001:2015

Literature

AxxessGuard Declaration of Conformity

AxxessGuard Declaration of Conformity

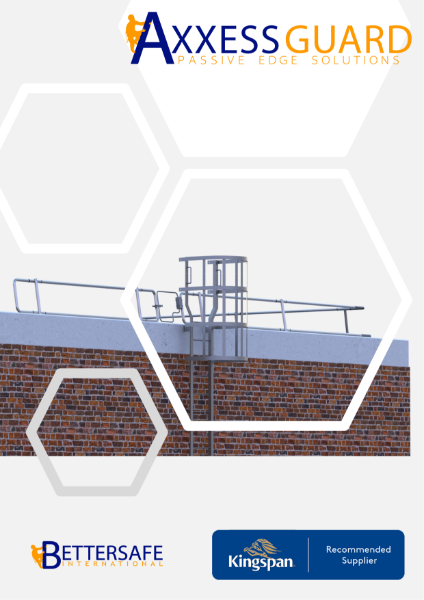

AxxessGuard - Guard Rail for Kingspan Roofing Systems

AxxessGuard - Guard Rail for Kingspan Roofing Systems

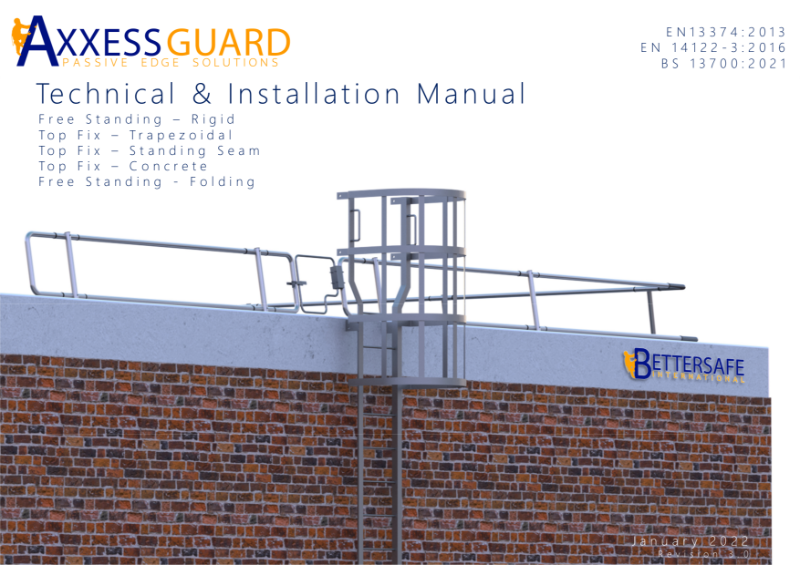

AxxessGuard Technical and Installation Manual

AxxessGuard Technical and Installation Manual

Axxess100 - Kingspan Recommended Supplier Products

Axxess100 - Kingspan Recommended Supplier Products

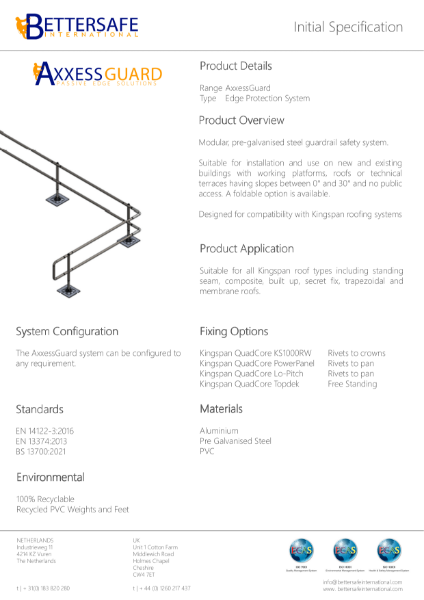

AxxessGuard Initial Specification
