AxxessWalk - Walkway and Access Systems - Roof Access Walkway and Step System
Verified by manufacturer 3 months ago

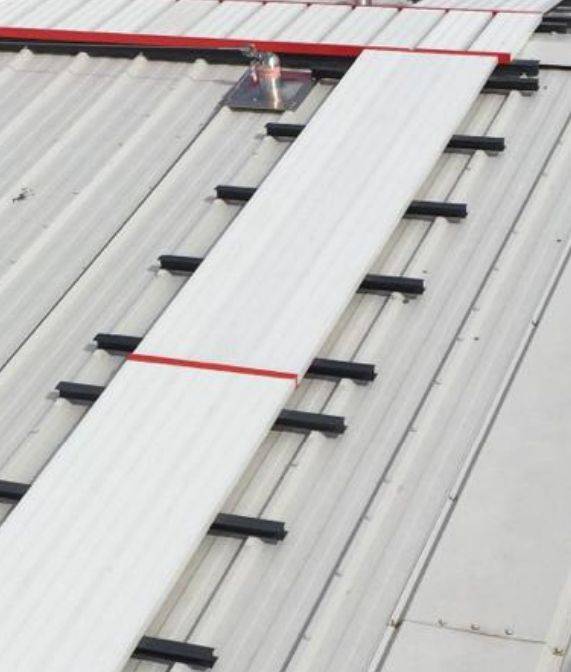

Walkway for trapezoidal roofing

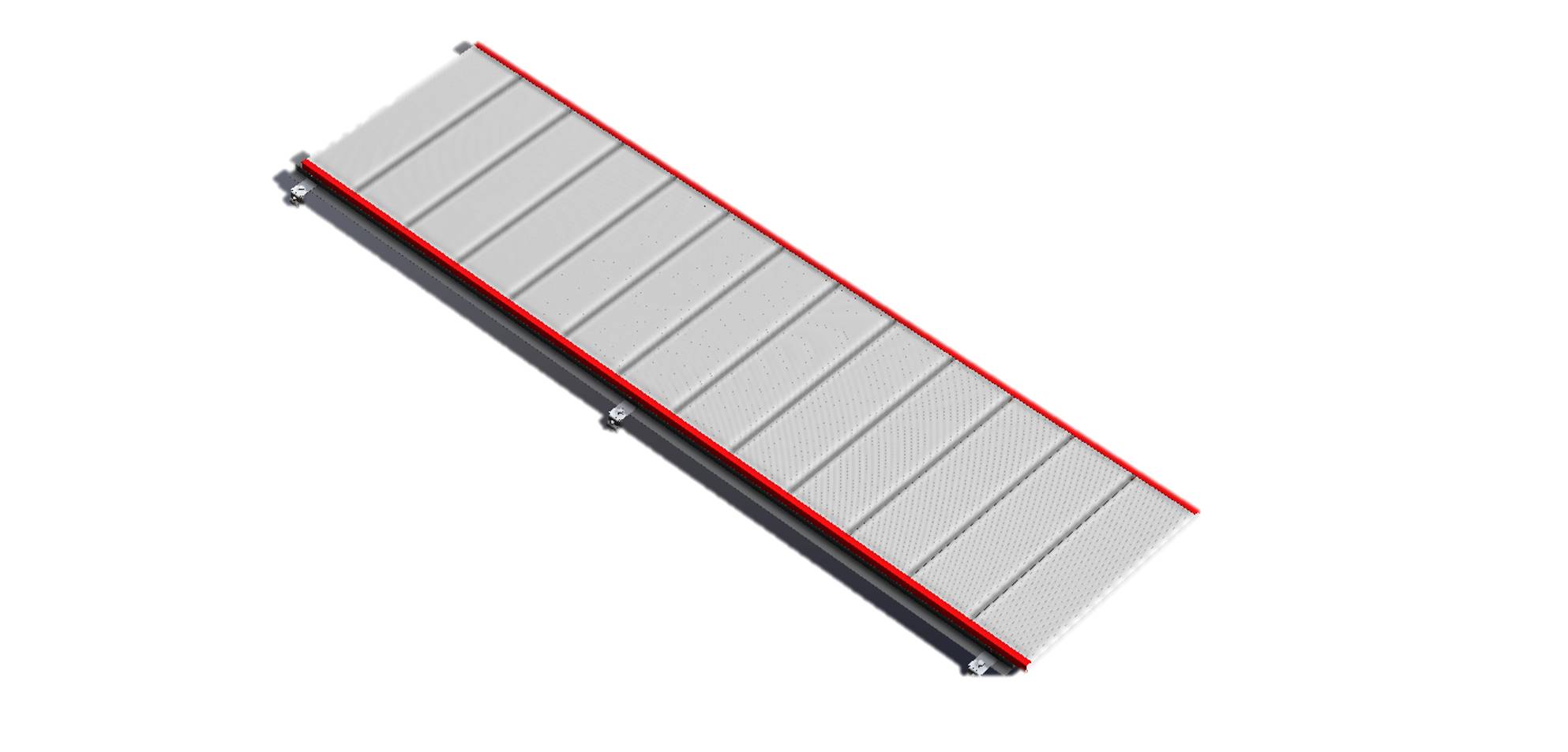

Walkway for trapezoidal roofing
ISO 14001 Environmental Management Systems
Certificate type
ISO 45001 Health and Safety Management
Certificate type
ISO 9001 Quality Management
Certificate type
Lightweight, fast installation, robust and cost effective walkway tested to EN 516.
Application
Suitable for installation and use on new and existing buildings with working platforms, roofs or technical terraces having slopes and no public access, designed for installation to Kingspan roofing systems.
Designed for compatibility with most roofing systems:
- Standing seam roofing systems
- Composite roofing systems
- Composite panels
- Built up roofing systems
- Secret fix roofing systems
- Polymeric single ply membrane roofing systems
- Bituminous membrane roofing systems
- Concrete and masonry roofing systems
- Wall mounted to steel structure
- Wall mounted to concrete and masonry
Description
Lightweight, fast installation, robust and cost effective walkway designed for installation to Kingspan roofing systems, tested to EN 516.
Features and benefits:
- Suitable for installation and use on new and existing buildings with working platforms, roofs or technical terraces having slopes and no public access.
- Comprised of recycled PVC-U boards and I-beams.
- Can be fitted directly to the roofing system using tamper-proof Tek screws or clamps.
- A weighted system is available for flat roofing areas, and the system can be supplied on a levelling system and with steps for inclined areas.
- No requirement for drilling, the system is mounted directly on the platform/ roof.
- Designed and tested to the requirements of EN 516.
General information
Color | White Guidance for specification option: Main board colour. Edges are red as standard. |
Finish | Anti-slip |
Material | PVC-U Guidance for specification option: Boards/ I-beams. Stainless steel Guidance for specification option: Brackets/ fixings/ frame (steps). Aluminium Guidance for specification option: Fixings. |
Shape | Rectangle |
Length | Bespoke |
Width | 675 mm |
Height | Bespoke |
Warranty description | 15 year |
Uniclass | |
CAWS | L35/160 Working platform system L35/140 High level walkway system L35/120 Duckboard system L30/45 Ramps/ walkways L30/460 Walkways L35/340 High level walkways L35/350 Stairs |
Specification data - Working platform and walkway systems
System performance | To EN 516. |
Frame | |
Section | Manufacturer's standard. |
Fixing to superstructure | SFS IRIUS Tek screws with sealant strips.Guidance for specification option: To attach I-beams to crowns of the profile. |
Decking and flooring | |
Material | AW-002 PVC-U metal profile short boards, 90° to profile.AW-003 PVC-U metal profile short boards, 90° to profile, levelled.AW-004 PVC-U metal profile long boards, in line with profile.Manufacturer guidanceFlush fit joining system included as required. Boards are white with red edging; I-beams are grey. Uses recycled PVC-U as standard. |
Applied anti-slip treatment | Manufacturer's standard. |
Balustrade guarding system | AxxessGuard.Guidance for specification option: Consult manufacturer for details and insert reference (AxxessGuard specified separately). Not required. |
Handrail system | AxxessGuard.Guidance for specification option: Consult manufacturer for details and insert reference (AxxessGuard specified separately). Not required. |
System accessories | None.AW-EXTRA SUPPORT 90.Guidance for specification option: For use with AW-002 only. Extra Over KS1000LP supports 90° to profile (per 3000 mm of AW-002). AW-EXTRA SUPPORT L/B.Guidance for specification option: For use with AW-004 only. Extra Over KS1000LP supports in line with profile (per 3000 mm of AW-004). |
Configuration | Guidance for specification option: Insert drawing, schedule or similar. Where applicable, include:
|
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 258 kg CO₂ eq/kg Self declared |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
Third party certifications
Third party certifications
ISO 14001 Environmental Management Systems
ISO 14001
ISO 45001 Health and Safety Management
ISO 45001:2018
ISO 9001 Quality Management
ISO 9001:2015
Literature
AxxessWalk Declaration of Conformity
AxxessWalk - Roof Walkway systems for Kingspan Roofing Systems
AxxessWalk Technical and Installation Manual
Axxess100 - Kingspan Recommended Supplier Products
AxxessWalk Initial Specification
