Bailey Platinum Modular Aluminium Rainscreen Cladding System - Secret Fix, Drain & Ventilated

Verified by manufacturer 10 days ago

Bailey - Total Building Envelope

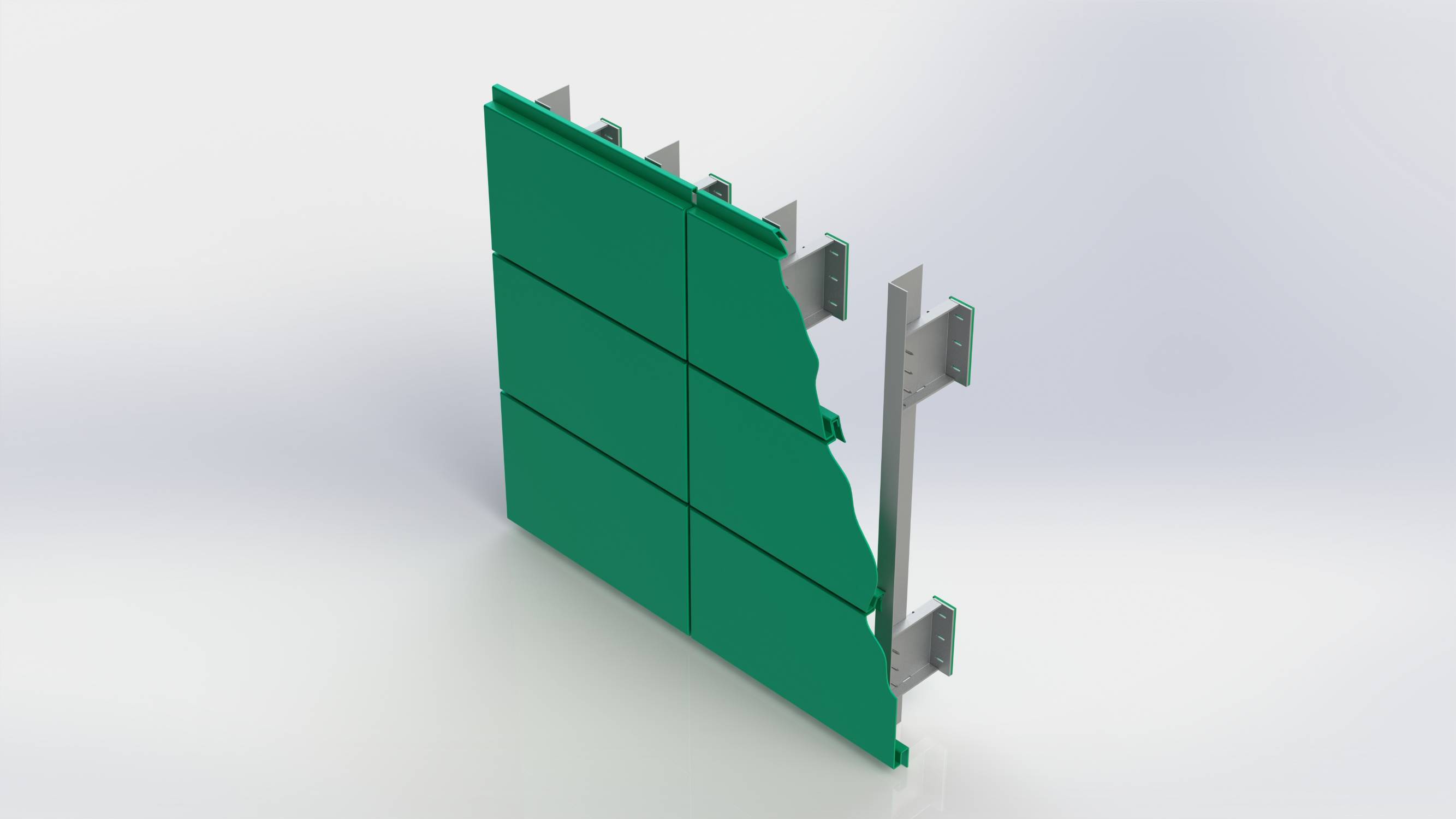

A versatile secret fix cassette rainscreen panel.

Jump to:
+44 (0) 1403 261844 Website

Application

  • Suitable for panels up to 1300 mm wide x 3470mm long, subject to technical verification.
  • Tested panel size is 1000mm wide x 3000mm long
  • Used in conjunction with Bailey Samson™ Helping Hand Support System.

Description

A versatile secret fix rainscreen system that can be utilized in a wide range of sizes and materials. It has a robust ‘male’ and ‘female’ joint method that is easy to fit making it one of the best looking rainscreen systems available.

Features and benefits:

  • Hidden fixings improve aesthetics.
  • Panels have an unbroken finish across façade without the need for shadow gaps or recesses between panels.
  • Reduction of fixings possible.
  • Improved panel strength on joints.
  • Interlocking joint for easy panel to panel installation.
  • Express joints available from 3-40 mm wide.
  • Fewer fixings required making installation faster.
  • Fully fire tested system to BR 135 (third edition) and BS EN 13501, with an A2 - s1, d0 fire classification in any powder coated finish.
  • CWCT sequence B tested.
  • Very good for horizontal panels.

General information

Color

Clear

Beige

Black

Blue

Bronze

Show more

Finish

Anodized

Powder-coated

Mill

Painted

PVdF

Show more

Material

Aluminium

Stainless steel

Copper

Zinc

Bronze

Show more

Manufacturer guidance

Whilst aluminium is the standard material, this product is also available in other material choices such as; Corten weathering steel, Stainless steel, Zinc, Copper and Bronze

Shape

Square

Rectangle

Triangle

Other

Manufacturer guidance

A full range of shapes are available please consult Bailey Total Building Envelope for further guidance.

Length

Bespoke

Manufacturer guidance

Sizes available upon request.

Width

Bespoke

Manufacturer guidance

Sizes available upon request.

Height

Bespoke

Manufacturer guidance

Sizes available upon request.

Warranty description

40 year

Uniclass

Ss_25_20_70_25 Drained and back-ventilated rainscreen cladding systemsPrimary
Ss_25_20_70_65 Pressure equalized rainscreen cladding systems

CAWS

H92/120 Rainscreen cladding

Product range

Rainscreen Cladding Systems

Specification data - Drained and back-ventilated rainscreen cladding systems

Secondary support structure

Not Required.

Samson Helping Hand Brackets with Horizontal Rails.

Samson Helping Hand Brackets with Vertical Rails.

Cladding panels

-

Material

Aluminium cassette panels.

Panel joints

Labyrinth joints.

System accessories

Not required.

Mechanically fixed stiffeners.

Fusion (aluminium honeycomb).

Guidance for specification option:

Aluminium honeycomb that is bonded to the back of the standard rainscreen systems to ensure flatness and robustness

Product Reference

Bailey Platinum Modular™ Rainscreen Panel

Material Finish

PPC.

Anodized.

Corten.

Thickness

40 mm.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

Europe

Manufacturing plant location

Material

Aluminium

Stainless steel

Copper

Zinc

Bronze

Show more

Manufacturer guidance

Whilst aluminium is the standard material, this product is also available in other material choices such as; Corten weathering steel, Stainless steel, Zinc, Copper and Bronze

Recyclability

100%

Expected Life

40 year
