Balcony Profiles

Verified by manufacturer 5 months ago

BAA100 10 mm Balcony Profile

Genesis Global Systems Limited Variant:

A range of aluminium edging profiles designed to protect the edges of tiles on terraces and balconies.

Jump to:
+44 (0)1642 713000 Website

Application

For protecting the edges of tiles on terraces and balconies.

Description

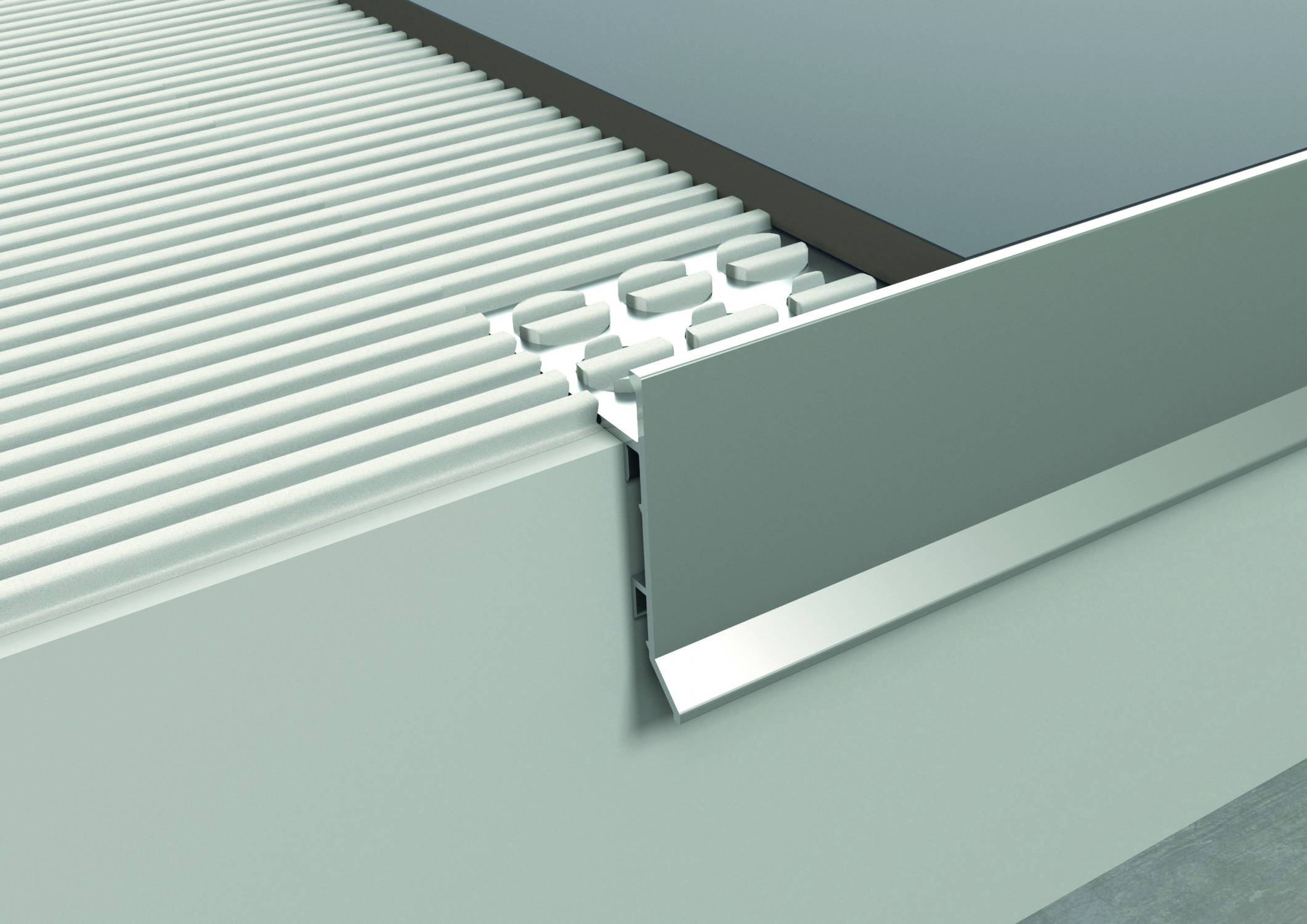

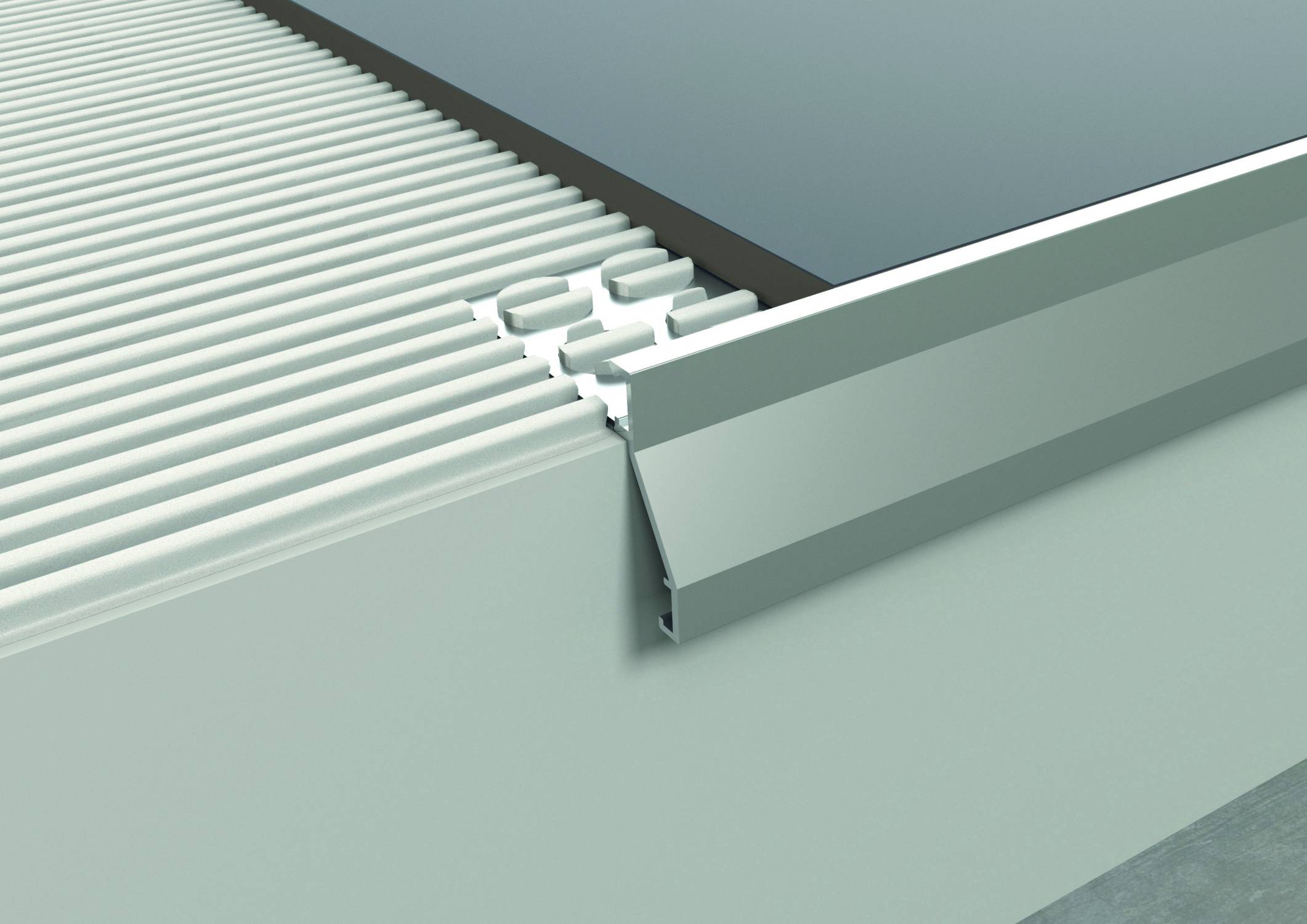

Aluminium edging profiles designed to protect the edges of tiles on terraces and balconies and to allow the correct water dispersion away from the fascia providing protection and aesthetic longevity. The profile is provided with a perforated anchoring flange that ensures perfect fastening of the profile to the substrate and a vertical side, protecting the edge of the flooring, partly bent outwards in order to allow the downflow of water.


Features and benefits:

  • Two shapes are available - flat surface (BAF) and sloped (BAA).
  • Available in Matt Black, Anthracite and Matt Silver.
  • Designed with drip edges to guide water away.
  • Large punched flanges allow secure installation and adhesive bedding.
  • Finishes allow aesthetic touch to the edges of any balcony.
  • Available in both 10 and 12 mm heights, with standard lengths of 2.5 m.
  • Connectors, internal and external corners available for both the BAA and BAF.

General information

Color

Silver

Black

Grey

Finish

Matt

Material

Aluminium

Shape

Other

Length

2500 mm

Width

42 mm

44 mm

53 mm

55 mm

Height

10 mm

12 mm

Uniclass

Pr_35_90_43_22 Edge trimsPrimary

CAWS

M41/110 Terrazzo tiling

M41/110 Terrazzo tiling

M41/140 Marble tiling

M40/120 Mosaic to

M40/12 Mosaic to

M40/115 Natural stone covering to

M40/10 Natural stone covering to

M40/5 Tiling to

M40/110 Tiling to

Specification data - Edge trims

Material

Aluminium.

Finish

Anodized.

Colour or pattern

17 Matt Black.

81 Matt Silver.

82 Anthracite.

Profile

BAA.

Size

42 x 10 mm.

Fixing

Adhesive.

Accessories

BACA10 Connector.

BAEA10 External Corner.

BAIA10 Internal Corner.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Literature

Balcony Profiles Data Sheet

Balcony Profiles Data Sheet
