BBS3 Single Steel Security Doorset LPS1175 SR3, 4 & 5
Verified by manufacturer 13 days ago

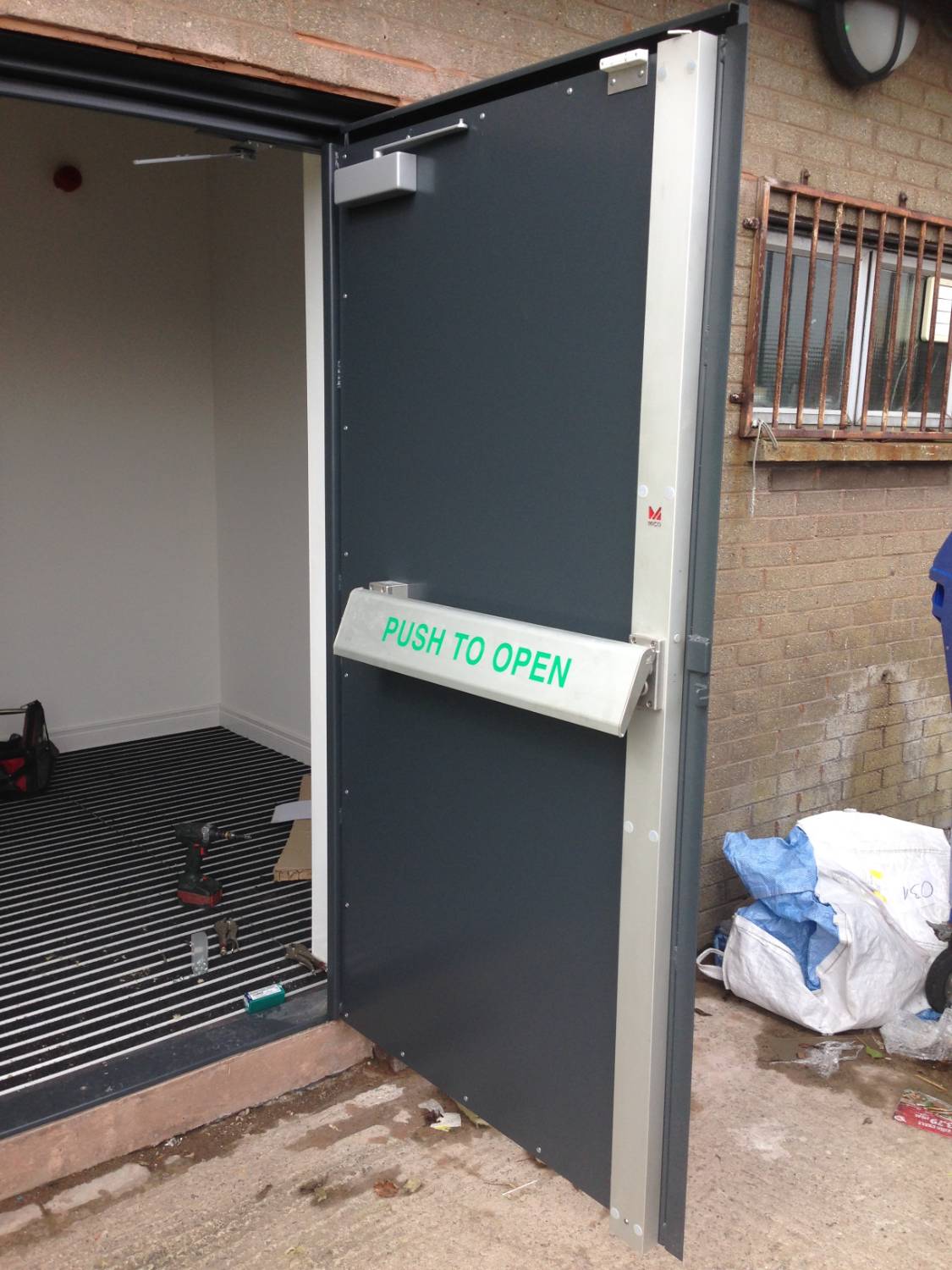

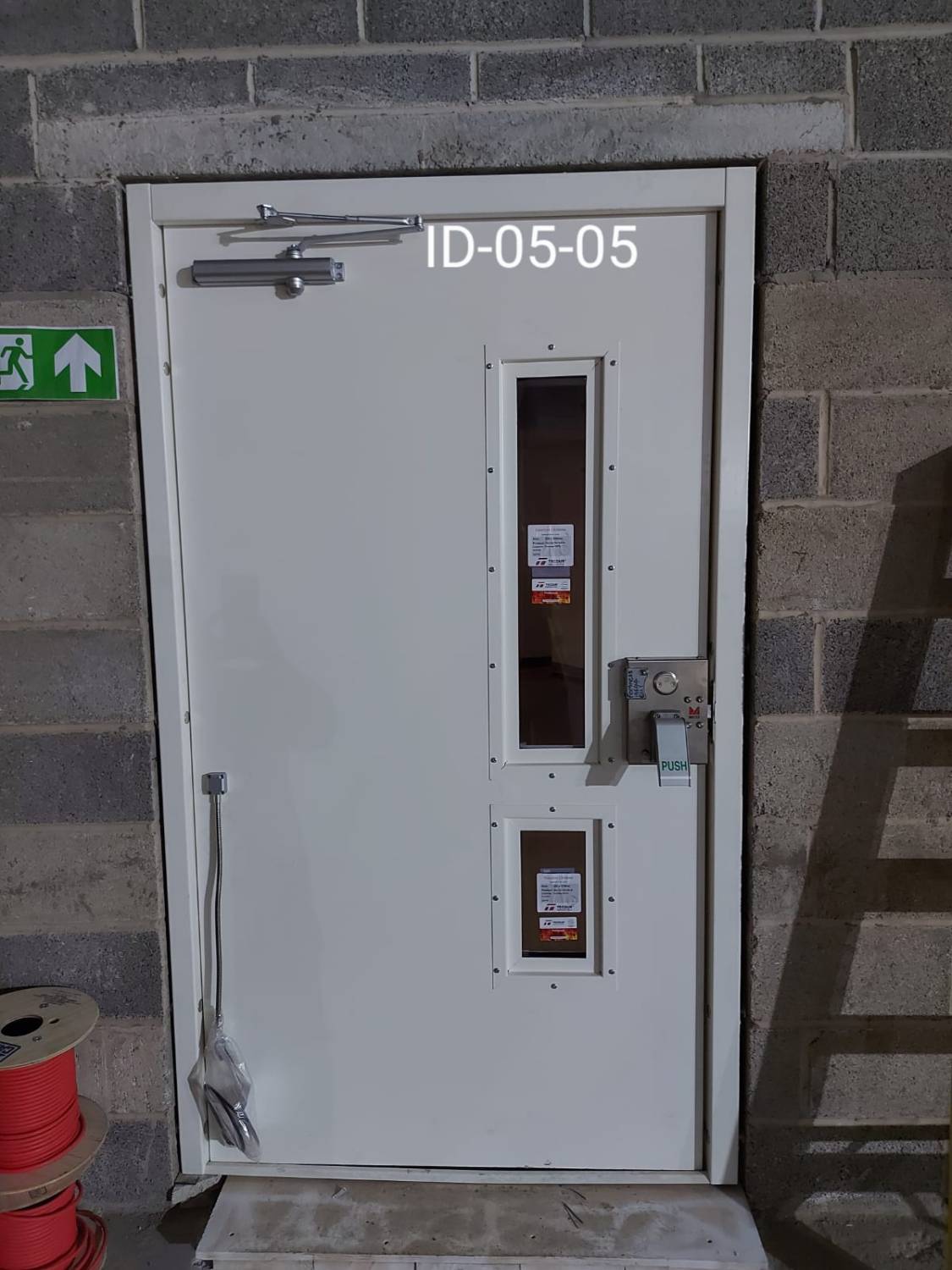

Single steel security door set (LPS1175 SR3, 4 & 5).
Application
Enhanced range of steel security doors are suitable for sites deemed to be within medium to high risk applications.
Description
A steel door set with an all metal construction certified to security rating SR3/4 and 5 by the Loss Prevention Certification Board (LPCB).
General information
Material | Steel |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | L20/480 Doorsets L20/55 Doorsets |
Specification data - Carbon steel doorsets
Standard | BS EN 12206-1, BS EN 1634-3. |
Third-party certification | LPS1175. |
Configuration | Single leaf. |
Doorset size | Manufacturer guidanceStructural opening size: Standard 1000 x 2100 mm. |
Performance | |
Fire resistance | |
Integrity | 120 minutes. |
Acoustic performance | Rw 22 dB (when incorporating acoustic seals). |
Thermal | Up to U-value 2.2 W/m²K insulated.Guidance for specification option: Insulation Material Thermal performance: U-value 0.363 W/m²K. |
Explosion resistance | |
Blast duration | Blast rated ISO16995 Cat. B. |
Frame | |
Material | 120 mm deep one-piece welded frame. |
Threshold | 14 mm rise. |
Finish | |
Coating | Powder coating to BS EN 12206-1. |
Colour | Manufacturer guidanceDoor leaf and frame are supplied BS EN 12206-1 polyester power coated (PPC) to the Fortress Pro-tec range of 29 BS and RAL colours from DuPont®. Matt PPC finishes only. All finishes are applied in-house using an electrostatic process. Under normal circumstances average film thickness of 60-80μm (microns) is applied. Non-standard colours are available on request - this may increase lead times. Poly Zinc Marine grade PPC available upon request. |
Door leaf | |
Thickness | 55 mm. |
Material | One skin of 3 and 1.2 mm steel sheet. |
Finish | |
External colour | As Frame.RAL 1021.RAL 3005.RAL 3020.RAL 5003.RAL 5005.RAL 5010.RAL 5013.RAL 5015.RAL 6005.RAL 6029.RAL 7016.RAL 7021.RAL 7031.RAL 7035.RAL 7037.RAL 8016.RAL 9001.RAL 9005 (BLACK).RAL 9006 (SILVER).RAL 9007.RAL 9010 (WHITE).RAL 9910.BS 00A05.BS 08B29.BS 04E53.BS 12B27.BS 18B25.BS 18E53.RAL 1015.Manufacturer guidanceDoor leaf and frame are supplied BS EN 12206-1 polyester power coated (PPC) to the Fortress Pro-tec range of 29 BS and RAL colours from DuPont®. Matt PPC finishes only. All finishes are applied in-house using an electrostatic process. Under normal circumstances average film thickness of 60-80μm (microns) is applied. Non-standard colours are available on request - this may increase lead times. Poly Zinc Marine grade PPC available upon request. |
Internal colour | As External.RAL 1021.RAL 3005.RAL 3020.RAL 5003.RAL 5005.RAL 5010.RAL 5013.RAL 5015.RAL 6005.RAL 6029.RAL 7016.RAL 7021.RAL 7031.RAL 7035.RAL 7037.RAL 8016.RAL 9001.RAL 9005 (BLACK).RAL 9006 (SILVER).RAL 9007.RAL 9010 (WHITE).RAL 9910.BS 00A05.BS 08B29.BS 04E53.BS 12B27.BS 18B25.BS 18E53.RAL 1015. |
Hardware | Door Viewer.Escutcheons and Double Euro Cylinder.Fortress Door closer.Fortress Friction stays.Fortress Kick/push plates.Fortress MICO Panic bolt.Fortress MICO Panic latch.Fortress MICO Sash lockFortress Pull Handles.Lever handleSurelock McGill surface mounted hardware. |
Accessories | Over panel (Solid).Side panels (solid).SR3 louvre.SR3 vision. |
Security | SR5. SR4. SR3. |
Air permeability | 2.0 m³/hr/m². |
Sustainability data
Material | Steel |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
