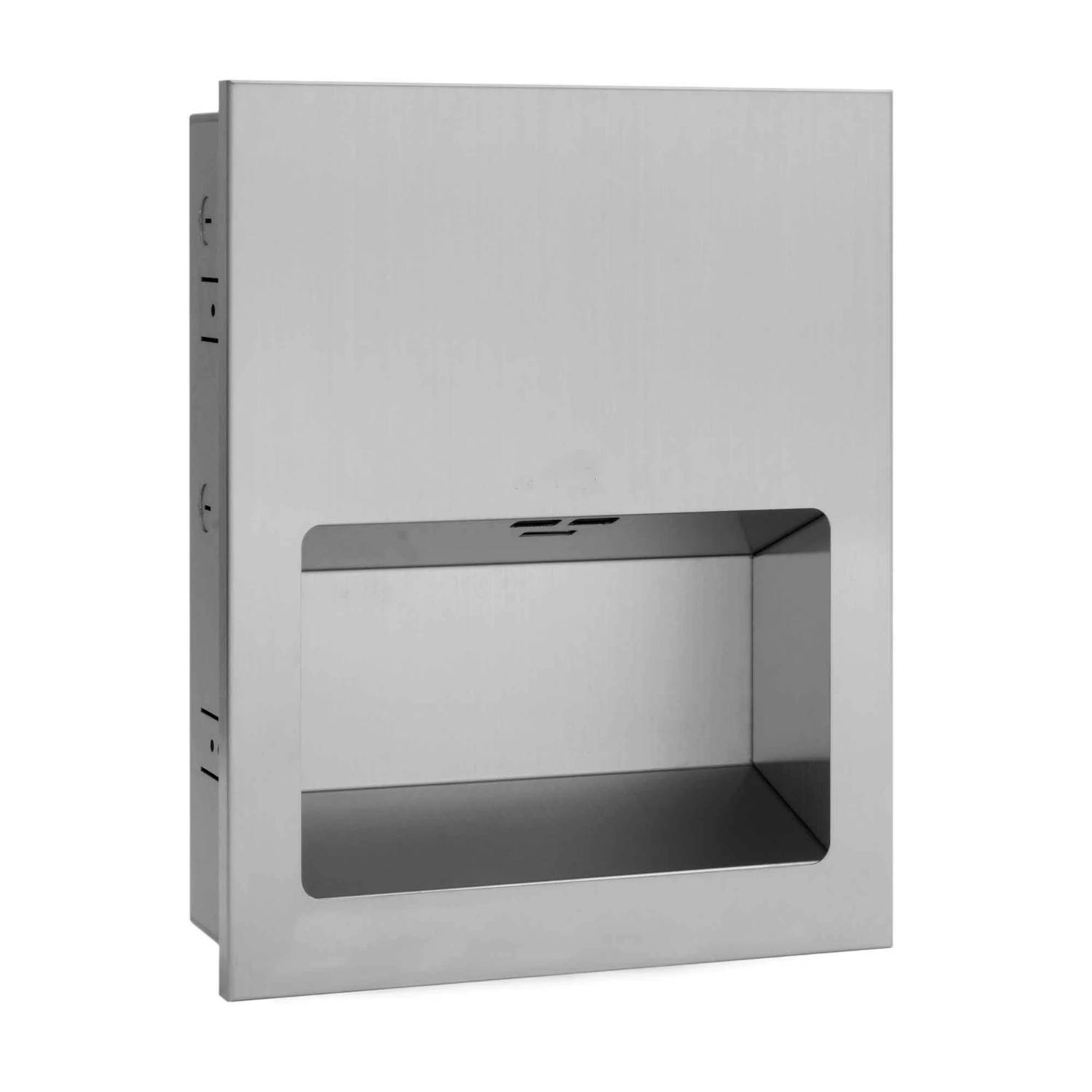

BC27-2SCA Dolphin Velocity Recessed Hand Dryer

Verified by manufacturer 2 months ago

Dolphin Solutions

Eco slimline recessed hand dryer.

Jump to:
+44 (0)1424 202224 Website

Application

Suitable for commercial washroom applications.

Description

Eco slimline recessed hand dryer.


Features and benefits:

  • Satin stainless steel fascia.
  • Dries hands within 15 seconds, reducing the CO2 emissions.
  • Ultra-slim recessed hand-dryer, 88 mm recess depth and projection of 16 mm.
  • Infrared, self-adjusting sensor.
  • SKA-compliant product.


Technical characteristics:

  • Current: <5 A.
  • Standby power less than 0.5 W.
  • Brush motor speed: 16 000–29 000 rpm.
  • Average reuse rate under WEEE Directive: 78%.
  • Average recovery rate under WEEE Directive: 96%.
  • Heater element: 250–500W (adjustable and with an on/ off switch facility).


General information

Finish

Satin

Material

Stainless steel

Shape

Rectangle

Length

400 mm

Width

320 mm

Height

10 mm

Warranty description

Three year

Uniclass

Pr_40_70_62_37 Hand dryersPrimary

CAWS

N13/472 Hand dryers

V90/590 Equipment

Product range

Hot air dryers / Recessed hand dryers

Specification data - Hand dryers

Form

Recessed hand-dryer.

Electrical supply

-

Power rating

500–1000 W.

Rated operational voltage (Ue)

220–240 V a.c.

Frequency

50/ 60 Hz.

Body

-

Material

Stainless steel.

Finish

Satin.

Ingress protection (minimum)

IPX24-rated and Class 1-rated isolation.

Dimensions

400 x 320 x 10 mm.

Noise level at 1 m (maximum)

75 dB(A).

Projection

16 mm.

Power consumption

1000 W (74.3 dB)/ 70 m/s (102 m³/h).

Guidance for specification option:

High speed with element on.

500 W (68.9 dB)/ 45.5 m/s (71 m³/h).

Guidance for specification option:

Low speed with element on.

500 W (74.3 dB)/ 70 m/s (102 m³/h).

Guidance for specification option:

High speed with element off.

250 W (68.9 dB)/ 45.5 m/s (71 m³/h).

Guidance for specification option:

Low speed with element off.

Manufacturer guidance

Power consumption/ output.

OutletTemperatureRange

55°C (131°F) at 25°C (77°F) ambient temperature.

Air speed

91.3 m³/h.
