BC5491BM Dolphin Behind Mirror Soap Dispenser
Verified by manufacturer 3 months ago
BC5491BM
BC5491BM

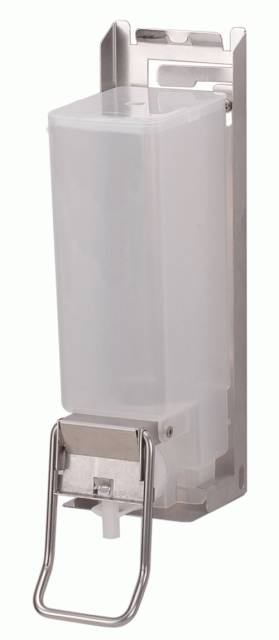

A stainless steel, soap dispenser for concealed mounting behind a mirror.
Application
Suitable for commercial washroom application.
Description
A stainless steel, soap dispenser for concealed mounting behind a mirror.
Features and benefits:
- 1200 ml capacity.
- Detachable refill receptacle.
- Stainless steel operating lever.
- Designed to be fitted behind a hinged mirror.
- Disinfectant, standard liquid soap and foam soap models available.
- Grade 304 (1.4301) stainless steel back plate.
General information
Color | Silver |
Material | Stainless steel Guidance for specification option: Grade 304 (1.4301). |
Shape | Rectangle |
Length | 335 mm |
Width | 94 mm |
Uniclass | |
CAWS | N13/458 Soap dispensers |
Product range |
Specification data - Soap dispensers
Form | Surface mounted. |
Materials | |
Body | Stainless steel, grade 304 (1.4301). |
Operation | Push button. |
Integral accessories | Detachable refill receptacle. |
Dimensions | 335 x 94 mm. |
Projection | 140 mm. |
Capacity | 1200 ml. |
Soap container | 1.5 ml per pump. Manufacturer guidanceSoap usage. |
Type | Liquid soap model. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
