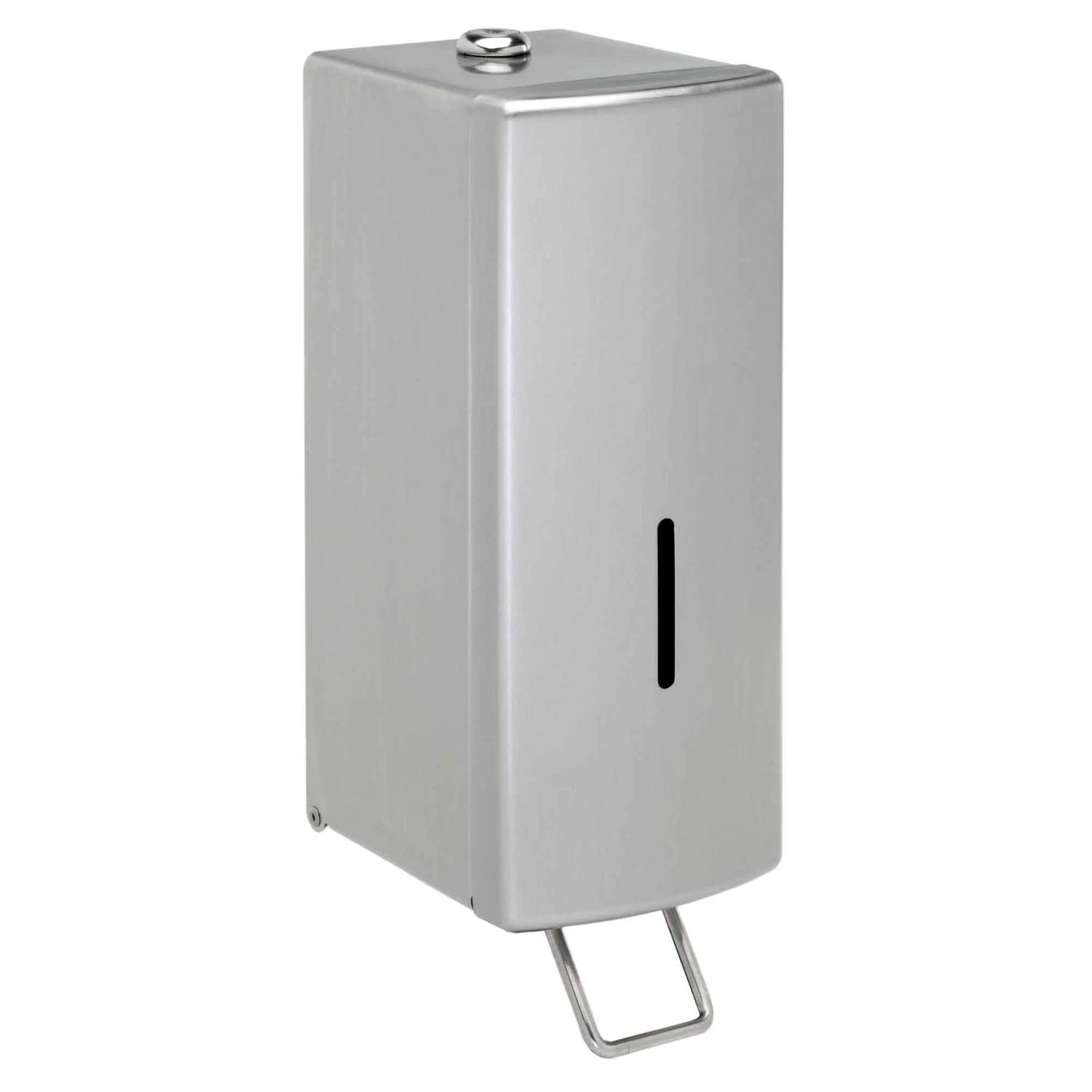

BC823 Dolphin Liquid Soap Dispenser

Verified by manufacturer 2 months ago

BC823

Dolphin Solutions Variant:

A surface mounted soap dispenser.

Jump to:
+44 (0)1424 202224 Website

Application

Suitable for commercial washroom application.

Description

A surface mounted soap dispenser.


Features and benefits:

  • 1000 ml capacity refillable dispenser.
  • Vandal resistant metal keyed locking mechanism.
  • ‘Keyed alike’ to the complete suite of Dolphin dispensers shown below.
  • Unique and robust inner plastic soap tank and pump assembly that resists corrosion.
  • Robust 1.430 (304) grade stainless steel (or carbon steel on BC823W) back and front plates.
  • Clever internal design allows within seconds the removal and refitting of the inner pump and tank assembly for cleaning or replacement purposes.
  • Uses standard liquid hand soap, anti-bacterial soap, and alcohol hand sanitizer (maximum 70% alcohol content).
  • Available in satin stainless steel, polished stainless steel, and white metal.

General information

Color

Silver

White

Finish

Satin

Polished

Material

Metal

Stainless steel

Guidance for specification option:

Grade 1.430 (304).

Shape

Rectangle

Length

293 mm

Width

100 mm

Height

121 mm

Uniclass

Pr_40_70_22_81 Soap dispensersPrimary

CAWS

N13/458 Soap dispensers

Product range

Soap dispensers / Surface mounted

Specification data - Soap dispensers

Form

Surface mounted.

Materials

-

Body

Stainless steel, grade1.430 (304).

Finish and colour

Satin.

Operation

Push button.

Dimensions

293 x 100 x 121 mm.

Capacity

1000 ml.

Manufacturer guidance

Refillable dispenser.

BIM objects

Platform Compatible Version
Revit
-

1

IFC
-

1
