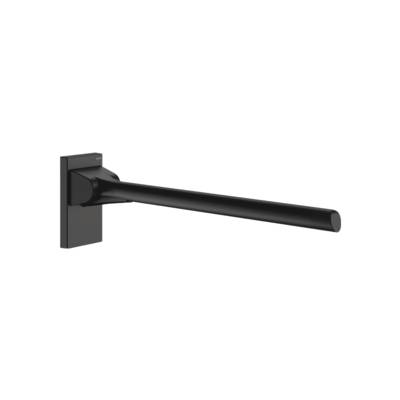

Be-Line® Drop-Down Grab Bar - 650 mm
Verified by manufacturer 10 months ago
Matte Black - 511960BK
Matte Black - 511960BK
Drop-down support rail.
Application
- Suitable for use in washroom areas.
- In the lowered position use as a grab bar, as a support for standing and for assisting movement, for WCs or showers.
Description
Be-Line® drop-down support rail for people with reduced mobility.
Features and benefits:
- Allows side access in the raised position.
- Removable: easy to remove with anti-theft locking system.
- Reduces the number of bars in a facility, allowing installation only when required. Example: hotels or hospitals providing short-term accommodation for disabled people.
- Drop-down rail retained in upright position. Slowed down descent.
- Aluminium tube.
- Rounded profile Ø42 mm with ergonomic flat front face that prevents rotation for an optimal grip.
- Powder-coated aluminium finish provides a good visual contrast with walls.
- Uniform surface for easy maintenance and hygiene.
- Concealed fixings secured to wall by a 304 stainless steel plate, 5 mm thick.
- Supplied with stainless steel screws for concrete walls.
- Tested to over 200 kg. Maximum recommended user weight: 135 kg.
- Without leg and with leg options.
- Available in three finishes: matte black, metallised anthracite and matte white.
- CE marked.
- 30-year warranty.
General information
Color | Black White Grey |
Finish | Matt Powder-coated |
Material | Aluminium |
Shape | Other |
Length | 650 mm |
Width | 120 mm |
Height | 210 mm 720 mm 760 mm 780 mm 905 mm |
Warranty description | 30 year |
Uniclass | |
CAWS | N13/69 Support rails and grab bars N13/436 Handrails and grab bars |
Specification data - Support rails
Form | Hinged. |
Diameter | 42 mm. |
Materials | |
Body | Aluminium. |
Finish and colour | Powder-coated, matte black. |
Fixings | Stainless steel screws, Ø8 x 70 mm. |
Height | 210 mm, 720 mm when raised. |
Length | 650 mm. |
Width | 120 mm. |
Sustainability data
Country of product manufacture | United Kingdom |
Literature

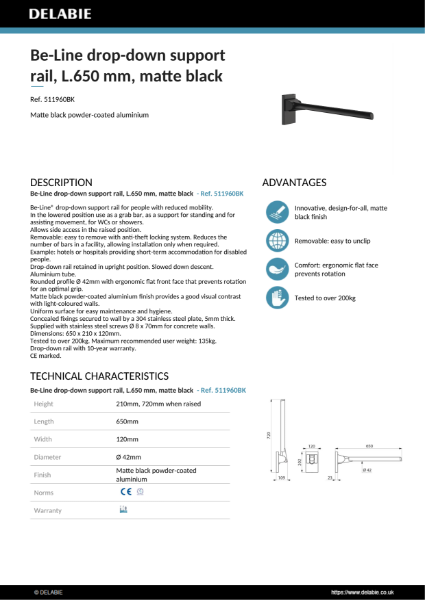

Be-Line Drop-Down Grab Bar - 650 mm - Matte Black Product Data Sheet

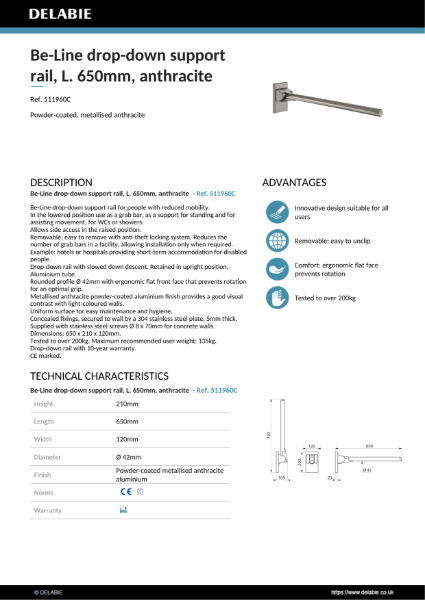

Be-Line Drop-Down Grab Bar - 650 mm - Metallised Anthracite Product Data Sheet
Be-Line Drop-Down Grab Bar - 650 mm - Matte White Product Data Sheet
Be-Line Drop-Down Grab Bar with Leg - 650 mm - Matte Black Product Data Sheet
Be-Line Drop-Down Grab Bar with Leg - 650 mm Product Data Sheet

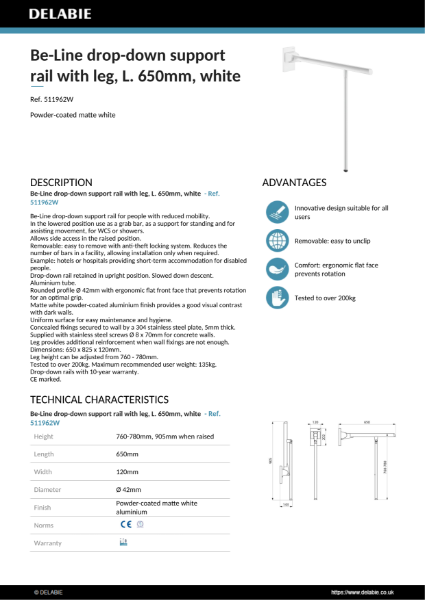

Be-Line Drop-Down Grab Bar with Leg - 650 mm - Matte White Product Data Sheet
