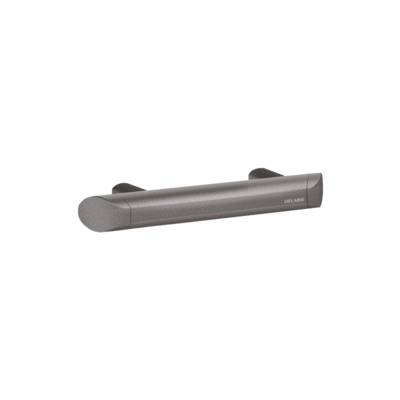

Be-Line® Grab Bars - Anthracite
Verified by manufacturer 10 months ago
Metallised Anthracite, 300 mm - 511903C
Metallised Anthracite, 300 mm - 511903C
Metallised anthracite, powder-coated aluminium grab bars.
Application
- Suitable for use in washroom areas.
- For use as a handrail or grab bar for WCs, showers or baths.
Description
Be-Line® metallised aluminium grab bars, for people with reduced mobility.
Features and benefits:
- Aluminium tube, 3 mm thick.
- Solid aluminium fixing points.
- Rounded profile Ø35 mm with ergonomic flat front face that prevents rotation for an optimal grip.
- Metallised anthracite powder-coated finish provides a good visual contrast with the wall.
- Uniform surface for easy maintenance and hygiene.
- Minimal gap between the bar and the wall prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
- Concealed fixings.
- Supplied with stainless steel screws for concrete walls.
- Tested to over 200 kg. Maximum recommended user weight: 135 kg.
- Available in multiple lengths.
- Doc M compliant option available in 450 mm and 600 mm.
- CE marked.
- 30-year warranty.
General information
Color | Grey |
Finish | Metallic Powder-coated |
Material | Aluminium |
Shape | Other |
Length | 300 mm 400 mm 450 mm 500 mm 600 mm |
Width | 35 mm Manufacturer guidanceDiameter. |
Warranty description | 30 year |
Uniclass | |
CAWS | N13/69 Support rails and grab bars N13/436 Handrails and grab bars |
Specification data - Support rails
Form | Fixed. |
Diameter | 35 mm. |
Materials | |
Body | Aluminium. |
Finish and colour | Powder-coated, metallised anthracite. |
Fixings | Stainless steel screws, Ø8 x 70 mm. |
Length | 300 mm centre-to-centre. |
Overall length | 413 mm. |
Sustainability data
Country of product manufacture | United Kingdom |
Literature

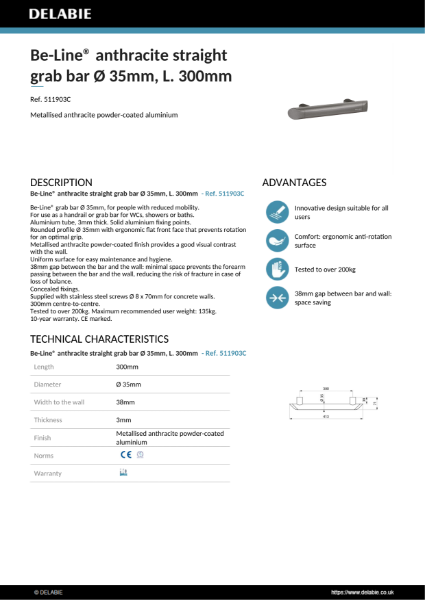

Be-Line® Grab Bars - Anthracite, 300 mm Product Data Sheet
