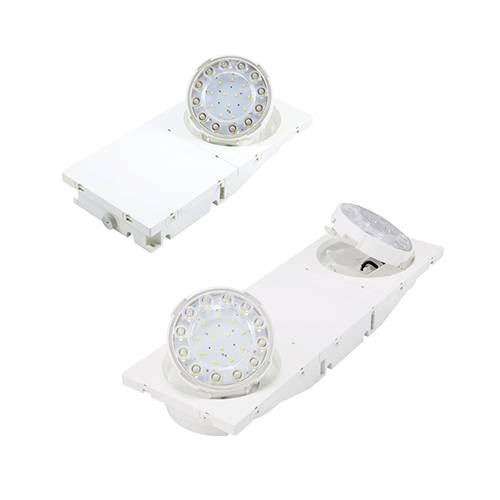

BeamTech CG-S - Central Battery Safety Luminaire

BeamTech CG-S is a central battery emergency lighting beam light with one or two high-intensity light heads. It provides a flexible solution for both wide-area anti-panic lighting and narrow illumination of escape routes or to highlight safety equipment like fire extinguishers in accordance to EN1838. It is designed as an aesthetic alternative to traditional emergency beam light solutions, making it a good choice for public areas. While its IP65 ingress protection and IK07 impact resistance also make it well equipped for industrial applications such as factories or warehouses.

Features and benefits:

• LED safety luminaire with high ingress protection class (IP65) with one or two adjustable light heads with 400 lm each.
• Light heads are rotatable in two axes in 15° steps and are equipped with a locking mechanism preventing accidental change of light head configuration.
• Narrow or wide beam option can be configured individually per light head via jumper switches.
• For better aesthetics of the product the two IP65 cable glands are integrated in the power supply unit so that they are invisible after installation.
• One product applicable for escape route illumination, open area illumination or for illuminating points of emphasis in accordance with EN 1838.
• Narrow beam option enables escape illumination from up to 30 m height and gives a maximum spacing between luminaires up to 29 m (with two light heads).
• Wide beam option for wide area lighting with up to 16 m height and up to 20 m spacing (with two light heads).
• Shortened inspection effort due to CEWA GUARD technology.
• Automatic function monitoring for up to 20 luminaires per circuit.
• Reduced installation cost through STAR Technology.
• Freely programmable mixed operation, allowing the switching of luminaire modes within one circuit.
