VW3 Vista Weld 3 Ladder

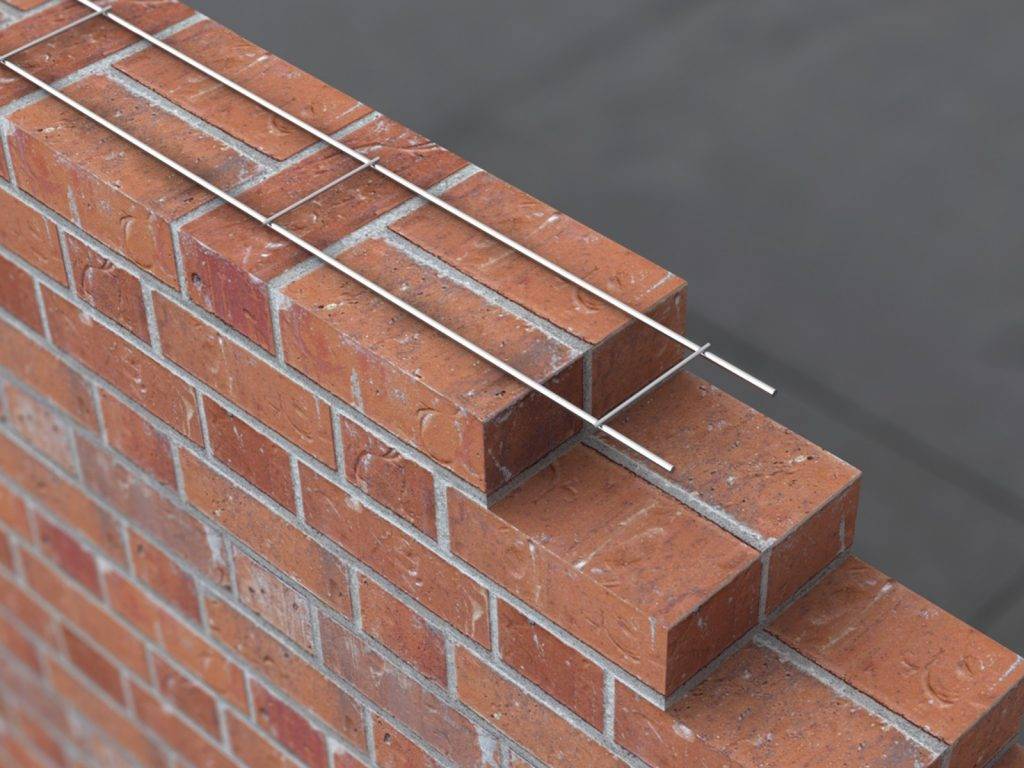

Range of ladders to increase the rigidity of masonry panels by introducing steel into the bed joint of the wall.
Bed joint reinforcement to provide:
Range of ladders to increase the rigidity of masonry panels by introducing steel into the bed joint of the wall.
Feature and benefits:
Vista Weld 3 Ladder/ Vista Weld Ladder/ Vista Weld 5 Ladder:
Vista Tie Span:
Double Vista Weld:
Bed reinforcement range also includes coil mesh for crack control (specified separately).
Color | Silver |
Material | Stainless steel Manufacturer guidanceSelected models also available in galvanized steel, consult manufacture for details. |
Shape | Rectangle |
Length | 2700 mm |
Width | 60 mm Guidance for specification option: All products except DVW and VTS. 100 mm Guidance for specification option: All products except DVW and VTS. 150 mm Guidance for specification option: All products except DVW and VTS. 175 mm Guidance for specification option: All products except double ladder. 200 mm Guidance for specification option: Double ladder only. |
Uniclass | |
CAWS | F30/270 Meshwork joint reinforcement |
SKU Code | VW, VW3, VW5, VTS, DVW |
Standard | Conforms to BS 5628: Part 2 2000. |
Configuration of bed joint reinforcement | Welded wire ladder. Guidance for specification option:
|
Dimensions | |
Wire size | 3 mm. |
Ladder or truss width (overall) | 60 mm. Guidance for specification option: VW3-060-STST; To suit wall width of 100 mm. 100 mm. Guidance for specification option: VW3-100-STST; To suit wall width of 140 mm. 150 mm. Guidance for specification option: VW3-150-STST; To suit wall width of 200 mm. 175 mm. Guidance for specification option: VW3-175-STST; To suit wall width of 215 mm. Manufacturer guidanceSupplied in packs of ten. 2700 mm-long as standard. |
Reinforcement material | Stainless steel. Guidance for specification option: Grade 304 S15. Manufacturer guidanceAlso available in galvanized steel; consult manufacturer for details. |
Third party accreditation | UKCA marked. |
Accessories | None. WINDOW Window Reveal Support. Guidance for specification option:
|
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Recyclability | Recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Wall Ties Brochure

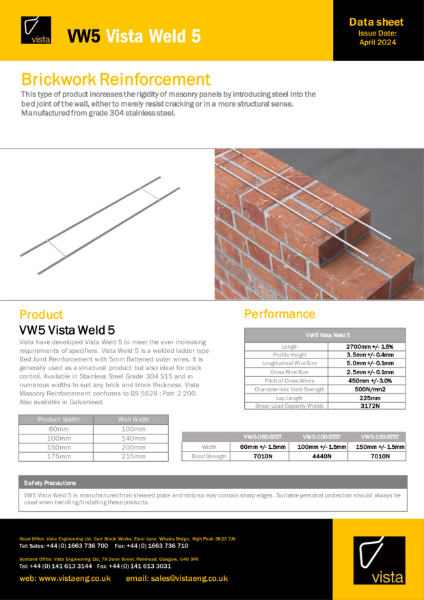

VW5 Vista Weld 5 Ladder Data Sheet
VW-060-STST Declaration of Performance
VW-100-STST Declaration of Performance

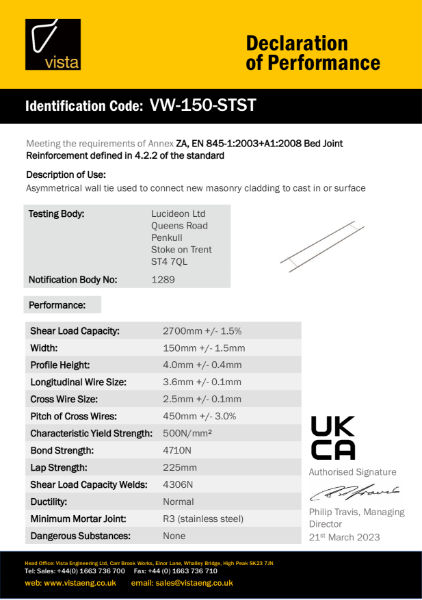

VW-150-STST Declaration of Performance

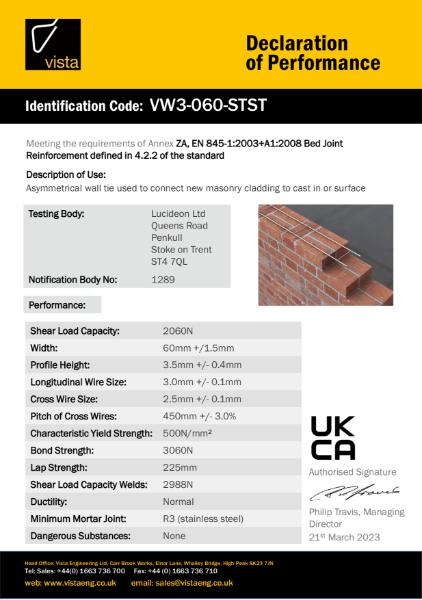

VW3-060-STST Declaration of Performance
VW3-100-STST Declaration of Performance
VW3-150-STST Declaration of Performance
VW5-060-STST Declaration of Performance

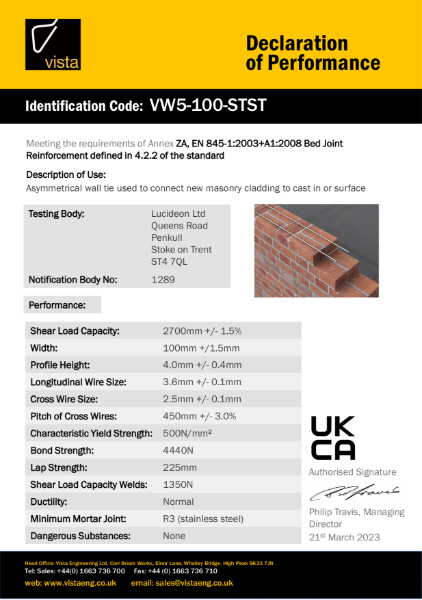

VW5-100-STST Declaration of Performance

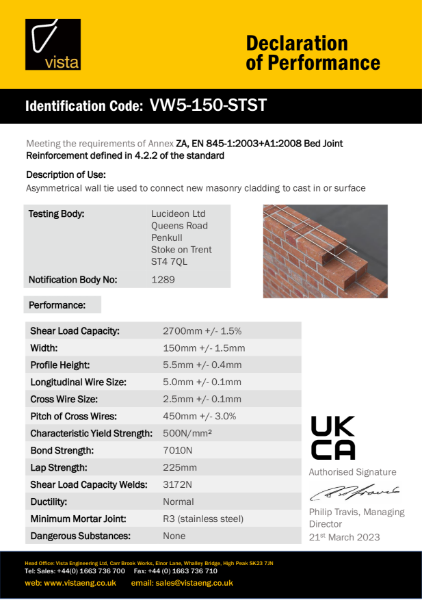

VW5-150-STST Declaration of Performance
