BEH600V - PSA Heavy Grade SD Vinyl Edge Banded Panel - Raised Access Floor Panel

Verified by manufacturer 1 month ago

Bathgate Flooring Ltd

Raised Access Floor Panel, Heavy Grade, gravity-laid, steel-encapsulated panel, with vinyl covering and edge banding.

Jump to:
BOS
+44 (0) 1432 347700 Website

Application

Internal, Commercial, Office, access floor panel.

Description

Access Floor Panel. Heavy Grade, gravity-laid panel, consisting of a high-grade, FSC®-certified, 38 mm thick, high-density particle board core in a sandwich construction with a steel top and bottom sheet, covered with standard static dissipative Gerflor Mipolam EL7 Robust Vinyl or other approved covering. A full-depth acrylonitrile butadiene styrene (ABS) edge band is then applied, creating a fully encapsulated 600 mm² panel.

The panel is fully tested by an independent, UKAS-accredited laboratory to the PSA MOB PF2 PS/SPU March 1992 Heavy Grade specification, and is certified as being fully compliant.


Features and benefits:

  • FSC® certified.
  • Designed to be loose-laid with complete electrical continuity.
  • High resistance to damage.
  • Can be perforated for airflow.
  • Manufactured in the UK.

General information

Color

Grey

Other

Guidance for specification option:

Customer specified vinyl finish.

Finish

Galvanized

Material

Steel

Acrylonitrile butadiene styrene (ABS)

Particleboard

Vinyl

Shape

Square

Length

600 mm

Width

600 mm

Height

42 mm

Warranty description

25 year

Uniclass

Pr_25_71_42_71 Raised access floor panels with finishPrimary

CAWS

K41/130 Raised access floor

K41/130 Raised access floor

K41/315 Floor panels

K41/315 Floor panels

Specification data - Raised access floor panels with finish

Casing

-

Material

Steel.

Factory finishes

Galvanized.

Core

HD particleboard.

Panel size

600 x 600 x 42 mm.

Manufacturer guidance

Width x length x height.

Dimensional deviations

To MOB PF2 PS/SPU.

Guidance for specification option:

Heavy grade.

Weight (maximum)

45 kg/m².

Panel fixing

Gravity laid.

Integral finish

-

Material

Gerflor mipolam EL7 robust vinyl.

Guidance for specification option:

Standard.

Special order.

Guidance for specification option:

Insert requirement.

Fixing

Factory-bonded.

Edges

Full-depth acrylonitrile butadiene styrene (ABS) edge band.

Colour

-

Manufacturer guidance

Consult manufacturer and insert requirements.

Perforations

Not required.

Required.

Guidance for specification option:

Insert requirements.

Loading

Point load: 4.5 kN (25 x 25 mm); Working load safety factor: 3x; Uniform distributed load: >12 kN/m².

SurfaceSpreadOfFlame

Class 0.

Sustainability data

Country of material origin

Germany

Guidance for specification option:

particleboard core

Manufacturer guidance

For Steel or Vinyl - see manufacturer

Country of product manufacture

United Kingdom

Material

Steel

Acrylonitrile butadiene styrene (ABS)

Particleboard

Vinyl

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

15.1 kg CO₂ eq/kg

Self declared

Recyclability

-

Manufacturer guidance

Wood Steel and Vinyl to be separated prior to recycling

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Literature

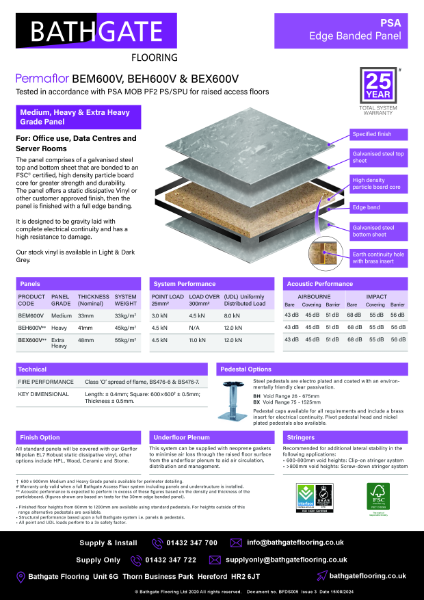

BEM600V, BEH600V & BEX600V
