Betatrak 63A Feed Unit - Powertrack

Verified by manufacturer 1 month ago

CMD Ltd

Infeed unit for each Betatrak track option.

Jump to:
BOS
+44 (0)1709 829511 Website

Application

For use with Betatrak powertracks.

Description

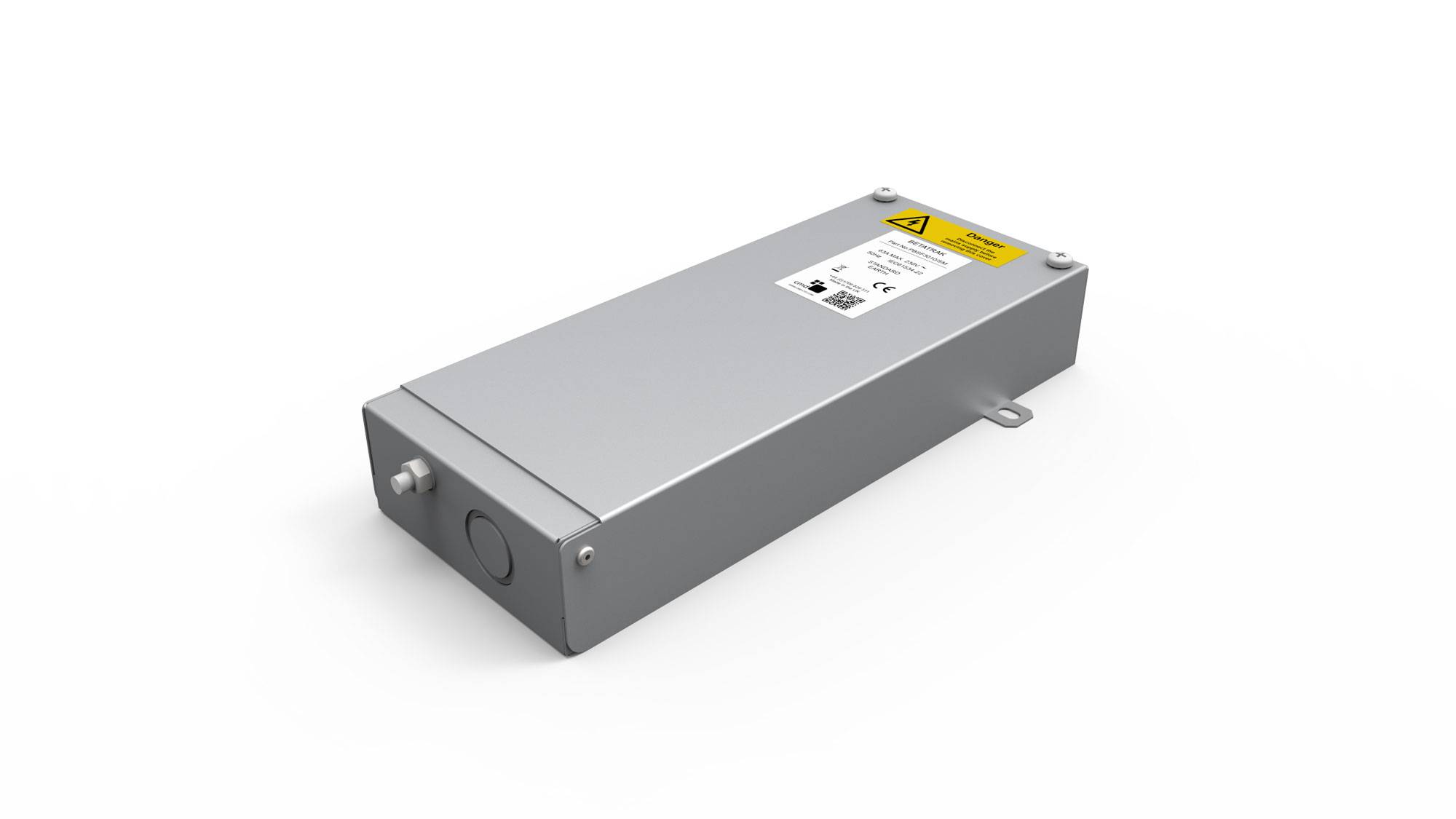

Betatrak infeed unit for each track option (Standard Earth, Clean Earth (C/E) low noise, Auxilliary Earth, Dual Circuit and 3-Phase). The unit consists of a connector block housed inside a hinged metal housing.

General information

Color

Silver

Finish

Galvanized

Material

Steel

Shape

Rectangle

Length

257.5 mm

Width

132.2 mm

Height

50.1 mm

Warranty description

One year

Uniclass

Pr_60_70_48_07 Busbar trunking feed unitsPrimary

Specification data - Busbar trunking feed units

Unit type

Trunking feed.

Rated current (InA)

63 A.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Steel

Recyclability

100%

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit

Revit 2016

2

IFC

IFC2X3

1
