Bfl-s1 Fire Rated Composite Decking Whiteriver Portland Montana
Verified by manufacturer 2 months ago
Montana Soft Grey Bfl-s1 Fire Rated Decking
Montana Soft Grey Bfl-s1 Fire Rated Decking
DoP
Certificate type
Bfl-S1 Fire Rated Composite decking.
Application

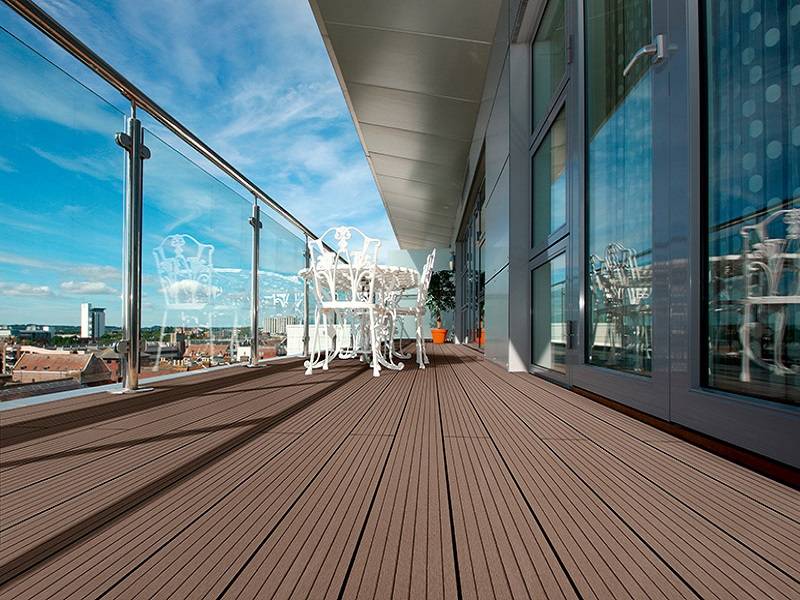

Decking, balconies, roof terraces, podium decks, gardens.
Description

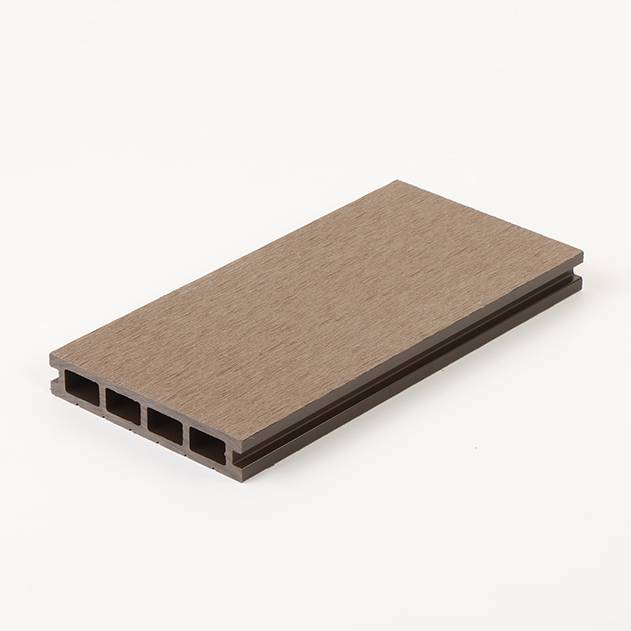

Portland Montana hollow deck board, manufactured using a wood and HDPE mix, creating a revolutionary composite.
It comes with a hollow construction and with the option of a reversible smooth or grooved surface.
Features and benefits:
- Joist spacing: Residential 400 mm and Commercial: 300 mm.
- User-friendly material.
- No need to be stained or sealed.
- Fire rating to EN 13501-1, Bfl-s1.
- Ten year warranty.
General information
Color | Grey Brown |
Finish | Grooved Smooth |
Material | Composite High density polyethylene (HDPE) |
Shape | Rectangle |
Length | 3600 mm |
Width | 135 mm |
Height | 25 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | Q55/370 Composite sections Q55/380 Deck boards |
Specification data - Wood-plastics composite deck boards
Standard | To EN 13501-1 and EN 13893. |
Third-party certification | CE certified. |
Profile | Side one: grooved; Side two: smooth. |
Finished size | |
Section | 135 x 25 mm. |
Length | 3600 mm. |
Reaction to fire | To EN 13501-1, Bfl-s1. |
Colour | Soft grey. |
Installation | Hidden clip system. |
Accessories | Not required. Finishing trims. Matching railings. |
Coverage | 0.504 m². Guidance for specification option: (including gap for clip). Manufacturer guidanceBoard |
Wet | Smooth side: 36; Grooved side: 32. Guidance for specification option: For best slip resistance please install smooth side up. |
Following drying | Smooth side: 45; Grooved side: 42. Guidance for specification option: For best slip resistance please install smooth side up. |
Density | To EN 15534-1: 2014 +A1: 2017 Section 6.2 ISO 1183-1: 2004 Method A: 139 g/cm³. |
Flexural strength | 34.4 MPa. |
Impact resistance | To EN 15534-1:2014 Section 7.1.1 EN ISO 179-1:2010: 3.7 kJ/m². |
Water absorption | 2.26%. |
Breaking load | To EN 15534 -1: 2014 Annex A: ≥ 4619 N. Guidance for specification option: Maximum. |
Coefficient of thermal expansion | ASTM D696: -16; 44.9 x 10-6/ °C. |
Loading capability | 0.43 m²/ m³. |
Sustainability data
Material | Composite High density polyethylene (HDPE) |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications
DoP
Whiteriver-Group-CE-Cert-Portland-Collection
Literature

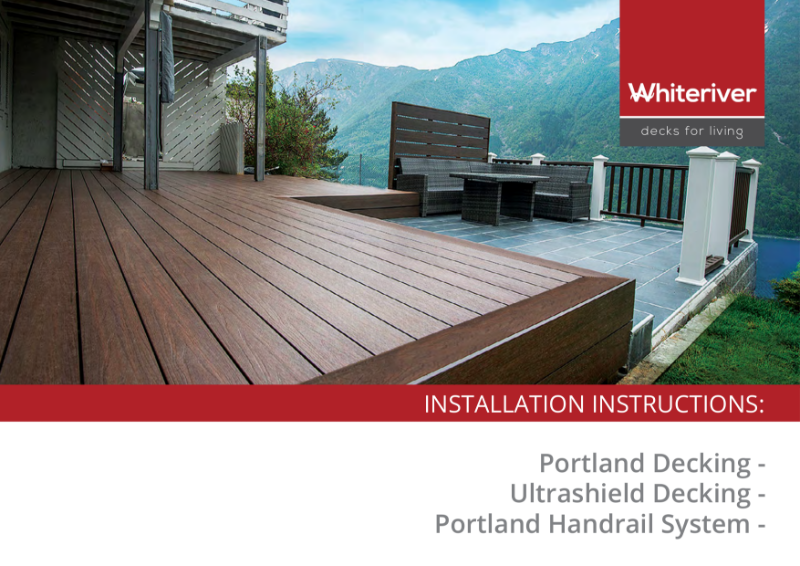

Installation-Instructions-2021
Composite-Care-and-Maintenance-2023-1
