Bifold Door

Verified by manufacturer over a year ago

Glideline Ltd

Aluminum bifold doors.

Jump to:
BOS
+44 (0)800 772 3342 Website

Application

Suitable for residential applications.

Description

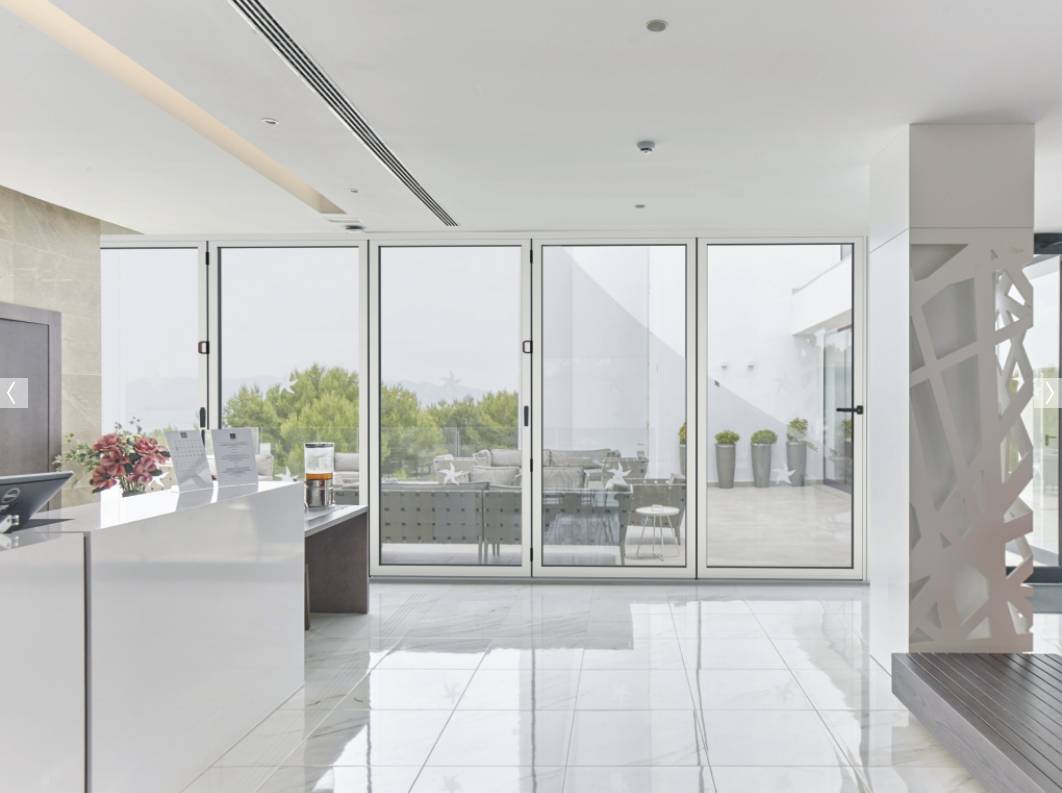

Aluminium bifold external doors.


Features and benefits:

  • Up to 14 sashes.
  • Available in a wide range of colours.
  • Maximum glazing thickness 45 mm.
  • Maximum width of panels 1200 mm.
  • Maximum height of panels 3000 mm.
  • Maximum weight of panels 120 kg.

General information

Color

Black

Blue

Bronze

Brown

Copper

Show more

Manufacturer guidance

Standard powder-coat colours are RAL 7016M Anthracite Grey Matt, RAL 9005M Jet Black Matt and RAL 9010G Pure White Gloss.

Finish

Powder-coated

Guidance for specification option:

RAL finish and wood effect.

Anodized

Material

Aluminium

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Manufacturer guidance

Maximum panel width 1200 mm.

Height

Bespoke

Manufacturer guidance

Maximum panel height 3000 mm.

Warranty description

Ten year

Uniclass

Pr_30_59_24_81 Sliding folding doorsetsPrimary

CAWS

L20/60 Doors

L20/530 Sliding folding external doors

Specification data - Sliding folding doorsets

Air permeability

To EN 12207, Class 4.

Manufacturer guidance

Reference test: 2701 x 2517 mm. 3 sashes. Set-up: 330.

Watertightness

To EN 12208, Class 9A.

Manufacturer guidance

Reference test: 2701 x 2517 mm. 3 sashes. Set-up: 330.

Wind resistance

To EN 12210, Class A3.

Manufacturer guidance

Reference test: 2701 x 2517 mm. 3 sashes. Set-up: 330.

U-value

-

Manufacturer guidance

U value from 1.1 W/m²K. Consult manufacturer and insert requirements.

Sub sill

90 mm.

150 mm.

180 mm.

230 mm.

Options

Configuration of sliding panel direction.

Guidance for specification option:

Consult manufacturer and insert requirements.

Lock configuration of master/slave.

Guidance for specification option:

Consult manufacturer and insert requirements.

Open in.

Open out.

Embed the lower frame in the floor.

Show more

Sustainability data

Country of product manufacture

United Kingdom

Recyclability

Glass and aluminium 100% recyclable

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

40 %

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1
