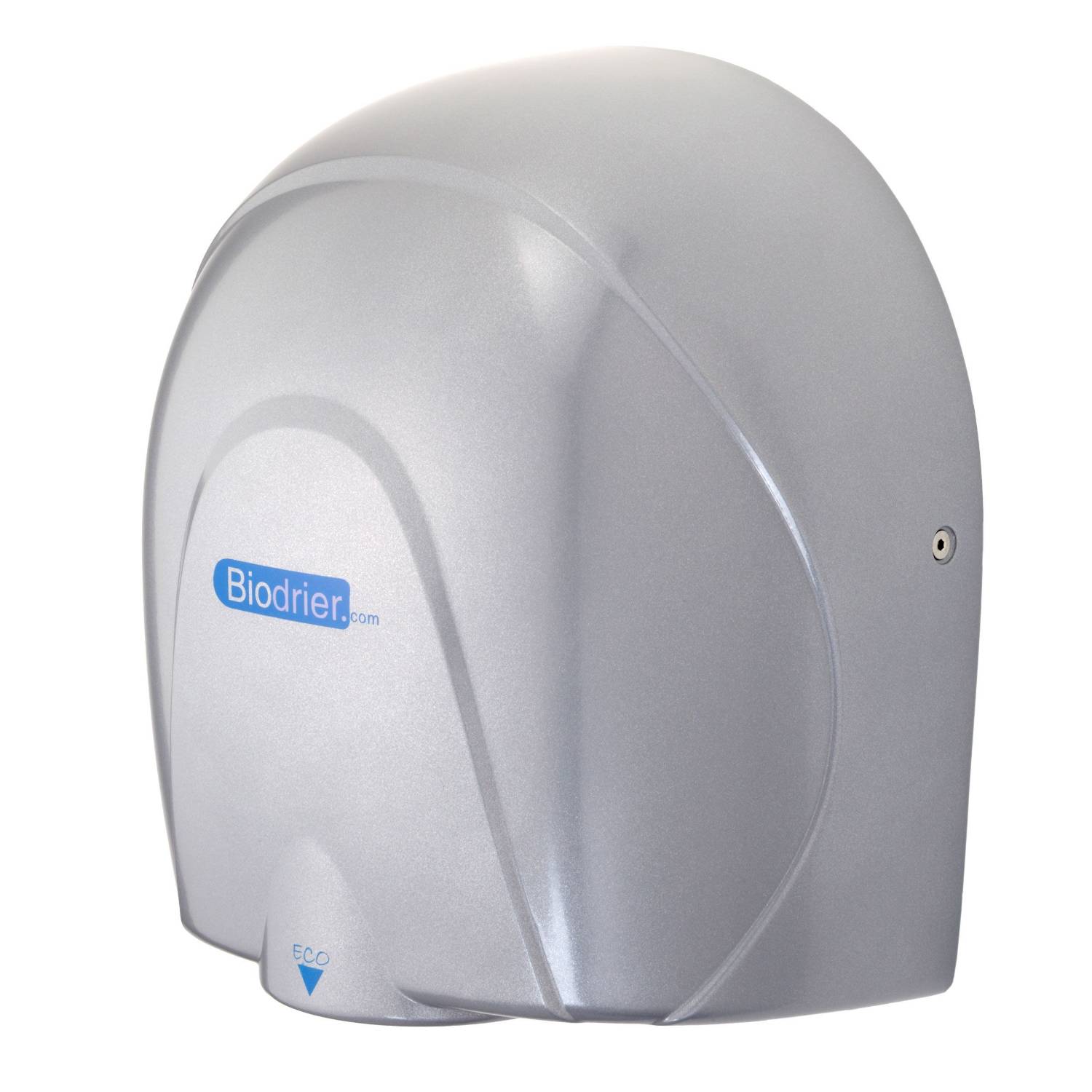

Biodrier Eco Hand Dryer - Compact Jet Hand Dryer
Verified by manufacturer 1 month ago
Silver - HD-BE08S
Silver - HD-BE08S
Modern, energy-efficient, fast hand dryer, perfect for washrooms.
Application
Hand dryer for washrooms, bathrooms and toilets.
- Suitable for low, medium and high usage.
- Suitable for the following locations in particular: offices, schools/colleges/universities, bars/restaurants/hotels, hospitality settings, retail settings, airports, and cinemas.
Description
Sleek, modern hand dryer suitable for use in compact washrooms where efficiency is key.
Installed in the world's tallest building, the Burj Khalifa!
Available in white, silver, and chrome.
Features and benefits:
- Fast drying: under 10 seconds.
- Low energy: uses just 900 W energy.
- Guarantee: 5 year warranty with an unrivalled three years rapid-response, on-site breakdown cover.
- Powerful: a compact jet hand dryer, which is small yet powerful.
- Low noise: 76 dBA @ 1 metre for this hand dryer.
- IP22 rating.
- Modern design: sleek and modern hand dryer - perfect for any style of washroom!
- High quality: die cast aluminium construction
- Low maintenance: hand dryer can be easily & swiftly cleaned with a damp cloth, making it ideal for busy environments.
- Environmentally friendly: All Biodrier hand dryers use 90% less energy than conventional hand dryers.
General information
Color | Silver Guidance for specification option: Silver or chrome. White Other |
Finish | Satin Chrome Smooth |
Material | Aluminium |
Shape | Other |
Length | 175 mm Guidance for specification option: Depth. |
Width | 280 mm |
Height | 300 mm |
Warranty description | Five year Guidance for specification option: 3 years on-site warranty. |
Uniclass | |
CAWS | N13/64 Hand dryers N13/472 Hand dryers |
Product range |
Specification data - Hand dryers
Form | High-velocity air. |
Operation | Automatic.Guidance for specification option: Infrared, self-adjusting. |
Timer | Fixed.Guidance for specification option: 60 seconds auto shut-off. |
Electrical supply | |
Power rating | 0.9 kW. |
Rated operational voltage (Ue) | 220–240 V a.c. |
Frequency | 50 Hz. |
Final connection | Guidance for specification option: Insert requirements. Consult manufacturer's installation manual for details. |
Body | |
Material | Die cast aluminium. |
Finish | Satin. |
Colour | Silver. |
Ingress protection (minimum) | IP22.Guidance for specification option: Isolation class I. |
Dimensions | 300 x 280 x 175 mmGuidance for specification option: Height x width x depth. |
Noise level at 1 m (maximum) | 76 dB(A). |
Features | Hands only. |
Integral accessories | Heater element (250 W thermal protected). |
Drying time | <10 seconds. |
Air speed | 64 m/s. |
Weight | 4.5 kg. |
Motor type | 650 W adjustable brush type. |
Approvals | UKCA marked; CE marked; UKAS ISO 9001:2008 Quality Management; ETL listed; TÜV approved, SafeContractor approved; WEEE compliant; GreenSpec®. |
Sustainability data
Contains Red List materials | No |
Country of material origin | China |
Country of product manufacture | China |
Material | Aluminium |
Recyclability | Yes, the plastic can be recycled. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
Biodrier Eco (HD-BE08) Leaflet
Biodrier Eco (HD-BE08) User Manual
Biodrier Eco (HD-BE08) Installation Template
Biodrier Brochure
Case studies
Hand Dryer Case Study (Primary School) - Chaddesden Park Primary School, Derby
Hand Dryer Case Study - Burj Khalifa, Dubai
