Verified by manufacturer 1 month ago
Silver - HD-BE1000S
HACCP International Product Compliance Certification
Certificate type

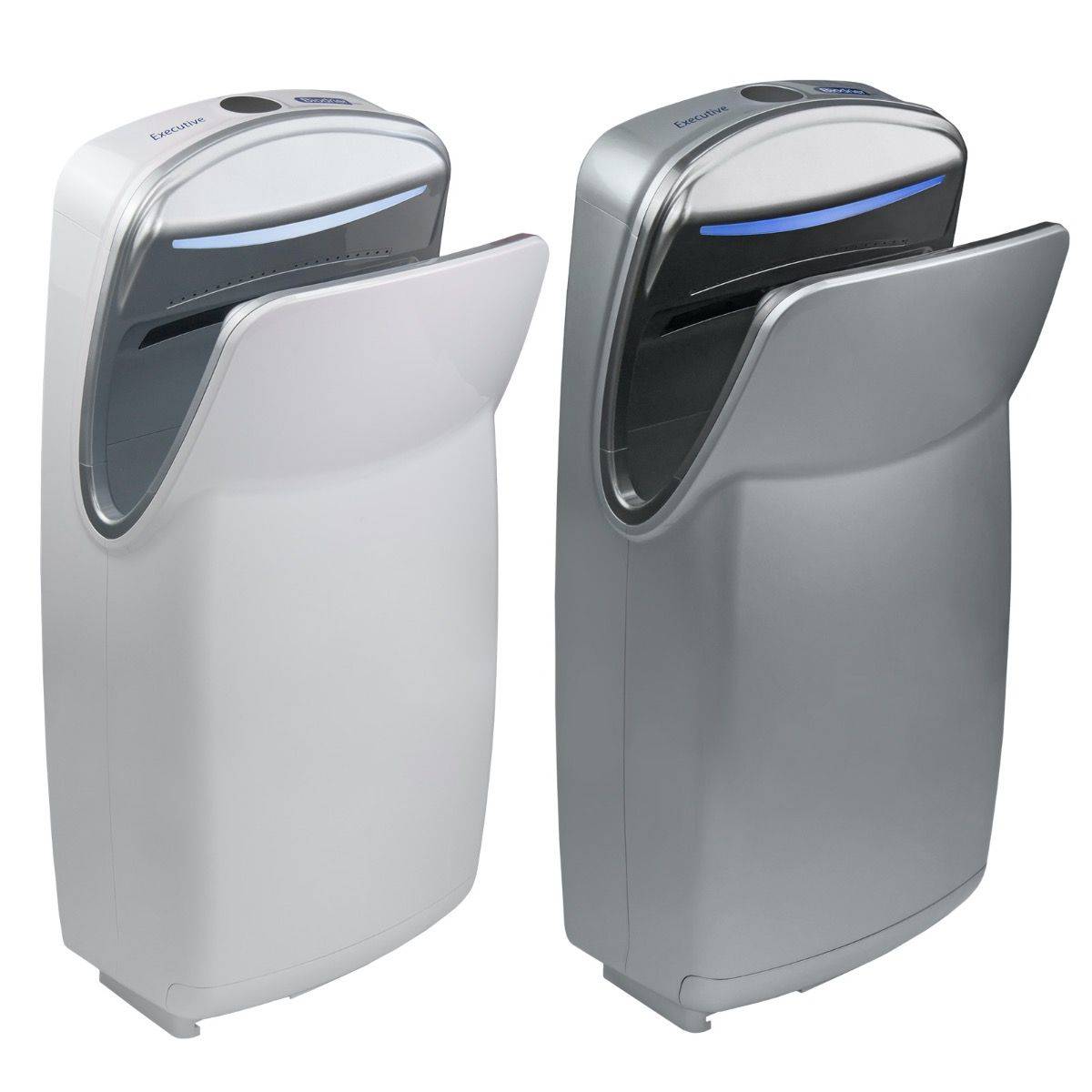

Hygienic, HACCP certified, and ultra-efficient hand dryer for high-traffic washrooms.
Hand dryer for washrooms, bathrooms and toilets.
A hygienic, powerful, and ultra-efficient hand dryer, perfect for high-traffic washrooms.
Available in white, silver, black and blue.
Features and benefits:
Color | Silver White Blue Black |
Finish | Metallic Anti-microbial Smooth |
Material | Acrylonitrile butadiene styrene (ABS) |
Shape | Rectangle |
Length | 230 mm Guidance for specification option: Depth. |
Width | 330 mm |
Height | 670 mm |
Warranty description | Five year Guidance for specification option: 3 years on-site warranty. Contact manufacturer for further details. |
Uniclass | |
CAWS | N13/64 Hand dryers N13/472 Hand dryers |
Product range |
Form | High-velocity air through HEPA filter. |
Operation | Automatic.Guidance for specification option: Infrared. |
Timer | Fixed.Guidance for specification option: 20 seconds auto shut-off. |
Electrical supply | |
Power rating | 0.7–1.0 kW. |
Rated operational voltage (Ue) | 220–240 V a.c. |
Frequency | 50–60 Hz. |
Final connection | Guidance for specification option: Insert requirements. Consult manufacturer's installation manual for details. |
Body | |
Material | ABS plastics. |
Finish | Fireproof ABS, 94V0, PMMA, UV coated. |
Colour | Silver.Guidance for specification option: HD-BE1000S. |
Ingress protection (minimum) | IP33.Guidance for specification option: Class II isolation. |
Dimensions | 670 x 300 x 230 mmGuidance for specification option: Height x width x depth. |
Noise level at 1 m (maximum) | 58–80 dB(A).Guidance for specification option: Depending on motor settings; consult manufacturer for details. |
Features | Hands-in. |
Accessories | None. Antibacterial UV sterilization. Remote control check system. Guidance for specification option: For diagnostics. |
Integral accessories | Antibacterial H13 HEPA filter. Guidance for specification option: Filter sensor LED indicates when filter needs to be changed (after 25 000 uses). |
Drying time | <10 seconds. |
Air speed | 155 m/s at 1 kW. |
Weight | 9 kg. |
Motor type | 30 000 rpm, two-speed adjustable brushless motor. |
Approvals | UKCA marked; CE marked; UKAS ISO 9001:2008 Quality Management; ETL listed; TÜV approved; SafeContractor approved; WEEE compliant; GreenSpec®; GS; RoHS2; HACCP. |
Country of material origin | China |
Country of product manufacture | China |
Material | Acrylonitrile butadiene styrene (ABS) |
Recyclability | Consult manufacturer for more details. |
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
Platform | Compatible | Version |
---|---|---|
- | 1 | |
- | 1 |
