BioZone

Verified by manufacturer 2 months ago

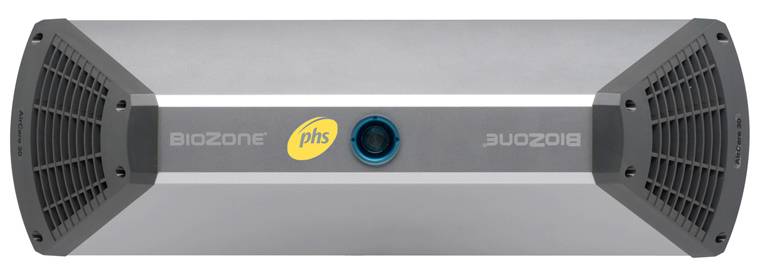

phs Warner Howard

BioZone is an advanced air purification system that improves the hygiene in the air and on surfaces.

Jump to:
BOS
+44 (0)370 8504352 Website

Application

Highly effective in washrooms, doctors' waiting rooms, nursing homes and food preparation areas.


Description

BioZone is an advanced air purification system which improves the hygiene in the air and on surfaces. With its combination of sterilizing techniques, it destroys viruses and helps resolve permanent odour problems by killing the bacteria which cause them.

Features and benefits:

  • Completely automated and chemical-free.
  • Kills 99.999% of bacteria.
  • Minimal maintenance – requires simple annual UV bulb replacements.
  • Quiet, compact unit; can be fitted to wall or ceiling.
  • Runs continuously for maximum effectiveness.

General information

Color

Grey

Silver

Finish

Brushed

Material

Steel

Glass

Shape

Rectangle

Length

401 mm

Width

131 mm

Height

91 mm

Warranty description

One year

Uniclass

Pr_40_20_76_02 Air freshenersPrimary

Product range

Aircare Range

Specification data - Air fresheners

Form

Wall mounted.

Materials

-

Finish and colour

Grey.

Equipment electrical power

16–24 W.

Product Reference

Biozone

UV lamp

AC10.

AC20.

AC30.

Weight

1.13 kg.

Cable length

4000 mm.

Rated operational voltage

230 V a.c.

Electrical supply

50 Hz.

Sustainability data

Material

Steel

Glass

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

1

Revit

Revit 2016

1

Literature

Biozone air purification system

Biozone air purification system

Biozone Spec Sheet

Biozone Spec Sheet
