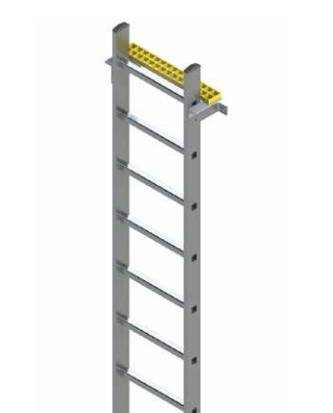

BL-A Fixed Vertical Ladder

Verified by manufacturer 2 months ago

BL-A-1

Access 360 Variant:

Aluminium fixed vertical ladder up to 2.8 m.

Jump to:
+44 (0)1827 718222 Website

Description

Industrial standard fixed vertical ladder available to suit floor to ceiling heights of between 2–6 m (special sizes available upon request). Available in aluminium or galvanized steel. Ladder up safety post also available for use with the ladder.


Features and benefits:

  • Manufactured to meet the requirements of BS 4211:2005.

General information

Color

Other

Finish

Mill

Material

Aluminium

Warranty description

-

Manufacturer guidance

Manufacturer's warranty.

Uniclass

Ss_35_10_30_62 Permanently-fixed vertical ladder systemsPrimary

CAWS

L35/130 Ladder system

Specification data - Permanently-fixed vertical ladder systems

Stiles

Alloy Class 1, 73 x 25 mm.

Rungs

Class 1 heavy duty square.

Assembly connectors

Stainless steel hexagon head screws

System accessories

None.

Ladder up safety post.

Guidance for specification option:

Also available for use with the ladder.

Brackets

50 x 10 mm alloy bar stand-off brackets.

Guidance for specification option:

Clear stand-off distance from wall: 127 mm.

OverallWidth

488 mm.

Height

2000–2800 mm.

Weight

12–14 kg.

Sustainability data

Material

Aluminium

Literature

TYPE BL Fixed Vertical Ladder - No Safety Cage

TYPE BL Fixed Vertical Ladder - No Safety Cage

SUBMITTAL DRAWINGS - TYPE BL FIXED LADDER

SUBMITTAL DRAWINGS - TYPE BL FIXED LADDER
