Black Smooth - Clay Bricks
Verified by manufacturer 5 months ago

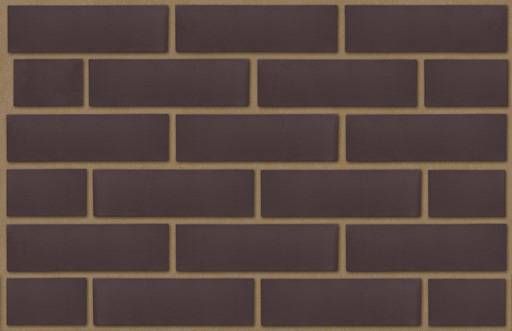

Smooth facing brick.
Application
Brickwork applications.
Description
Smooth facing brick.
General information
Color | Black |
Finish | Smooth |
Material | Clay |
Shape | Rectangle |
Length | 215 mm |
Width | 102 mm |
Height | 65 mm |
Uniclass | |
CAWS | Q10/130 Clay brick Q10/20 Clay brick F10/110 Clay facing brickwork |
Specification data - Clay bricks
Standard | To BS EN 771-1. |
Brick description | Facing brick. |
Work size (length x width x height) | 215 x 102 x 65 mm. |
Tolerances | |
Mean value | T2. |
Range | R2. |
Compressive strength | |
Mean compressive strength (minimum) | 40 N/mm². |
Durability designation | F2 S2. |
Density | |
Gross dry | 1300 kg/m³. |
Water absorption | 6%. |
Configuration | Vertically perforated. |
Thermal conductivity | 1.12 W/mK. |
Water vapour permeability | 50/100 µ. |
Bond strength | 0.15 N/mm². |
Reaction to fire | Class A1. |
Sustainability data
Country of material origin | Spain |
Country of product manufacture | Spain |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
