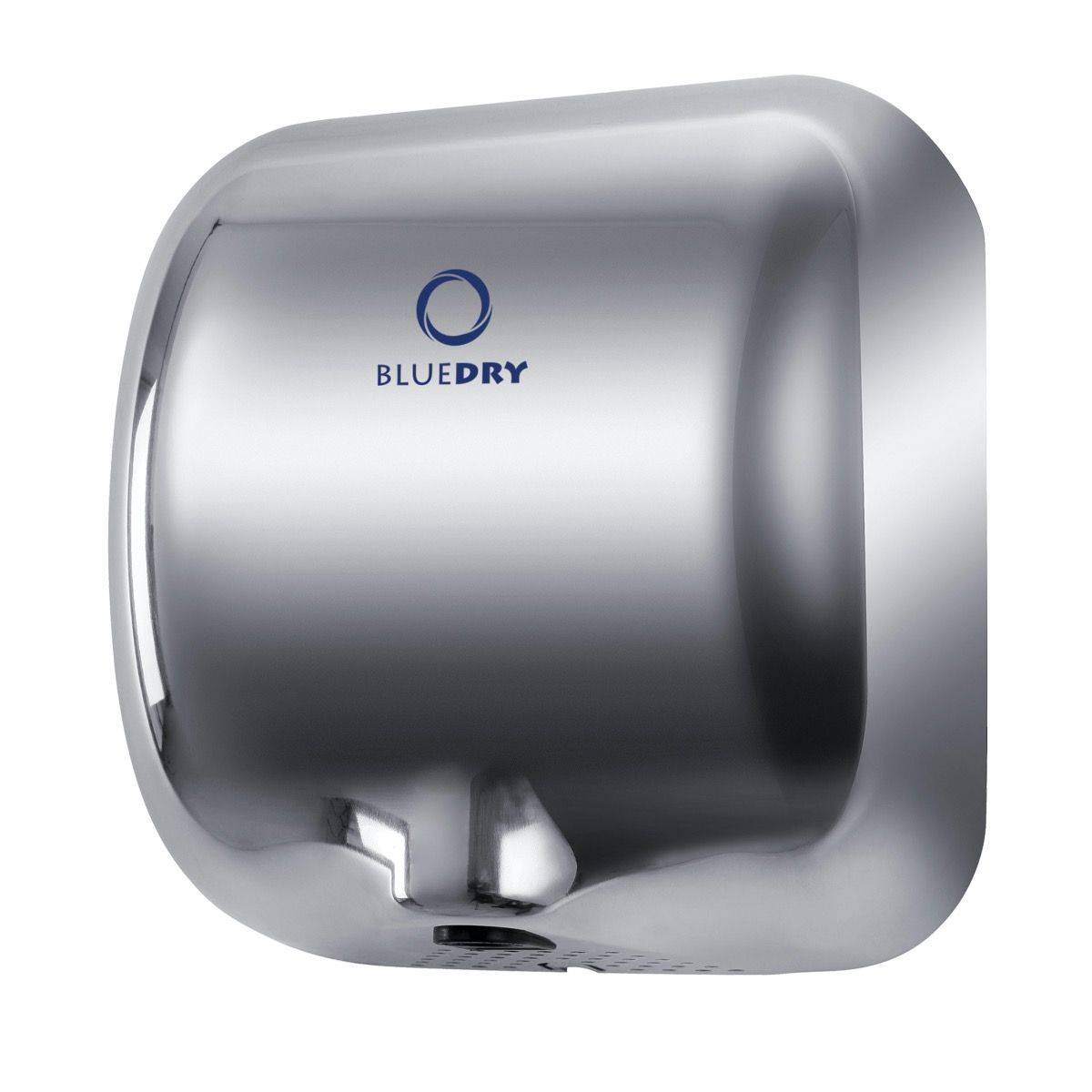

BlueDry Eco Hand Dryer - Compact Jet Hand Dryer
Verified by manufacturer 1 month ago
Polished stainless steel (chrome) - HD-BD1000PS
Polished stainless steel (chrome) - HD-BD1000PS
High-speed, eco-friendly, hands-under hand dryer.
Application
Hand dryer for washrooms, bathrooms and toilets.
- Suitable for low, medium and high usage.
- Suitable for the following locations in particular: offices, schools/colleges/universities, bars/restaurants/hotels, hospitality settings, retail settings, airports, and cinemas.
Description
A high-speed, eco-friendly, hands-under hand dryer.
This hand dryer model is actually our best-seller across the UK!
Available in white, brushed stainless steel and polished stainless steel.
Features and benefits:
- Fast drying: 8-10 second dry times.
- Low energy: uses just 550-1800 W energy.
- Heating control: option to turn the heater on/off for this hand dryer - in warmer temperatures, this allows for the heater to be switched off to save energy, and more money.
- Low noise: 74 dBA @ 1m.
- Modern design: sleek modern design, with a blue LED light to guide the user to the airflow.
- Vandal proof: smooth, sturdy hand dryer shell with no seams, ensuring the hand dryer is vandal resistant.
- IPX1 Rating.
- Guarantee: 2-year warranty
General information
Color | Silver Guidance for specification option: Silver or chrome. White |
Finish | Brushed Polished Powder-coated |
Material | Stainless steel |
Shape | Rectangle Other |
Length | 170 mm Guidance for specification option: Depth. |
Width | 290 mm |
Height | 320 mm |
Warranty description | Two year |
Uniclass | |
CAWS | N13/64 Hand dryers N13/472 Hand dryers |
Product range |
Specification data - Hand dryers
Form | High-velocity air. |
Operation | Automatic.Guidance for specification option: Sensor range: 50–150 mm. |
Timer | Fixed.Guidance for specification option: Consult manufacturer for details. |
Electrical supply | |
Power rating | 1.8 kW (hot); 0.55 kW (cold). |
Rated operational voltage (Ue) | 220–240 V a.c. |
Frequency | 50 Hz. |
Final connection | Guidance for specification option: Insert requirements. Consult manufacturer's installation manual for details. |
Body | |
Material | Stainless steel grade 304. |
Finish | Polished. |
Colour | Chrome. |
Ingress protection (minimum) | IPX1.Guidance for specification option: Isolation class I. |
Dimensions | 320 x 290 x 170 mmGuidance for specification option: Height x width x depth. |
Noise level at 1 m (maximum) | 74 dB(A). |
Features | Hands only. |
Integral accessories | Heater element. Guidance for specification option:
|
Drying time | 8–10 seconds. |
Air speed | 60 m/s. |
Weight | 4.4 kg. |
Motor type | Brush, 25 000 rpm. |
Approvals | UKCA marked; CE marked; CCC marked; UKAS ISO 9001 Quality Management; ETL listed; TÜV approved. Guidance for specification option: Consult manufacturer for further details. |
Sustainability data
Contains Red List materials | No |
Country of material origin | China |
Country of product manufacture | China |
Material | Stainless steel |
Recyclability | Consult manufacturer for more details. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
BlueDry Eco (HD-BD1000) User Manual
BlueDry Eco (HD-BD1000) Installation Template
BlueDry Brochure
