BlueDry Jet Blade Hand Dryer - Hands-In Dryer
Verified by manufacturer 1 month ago

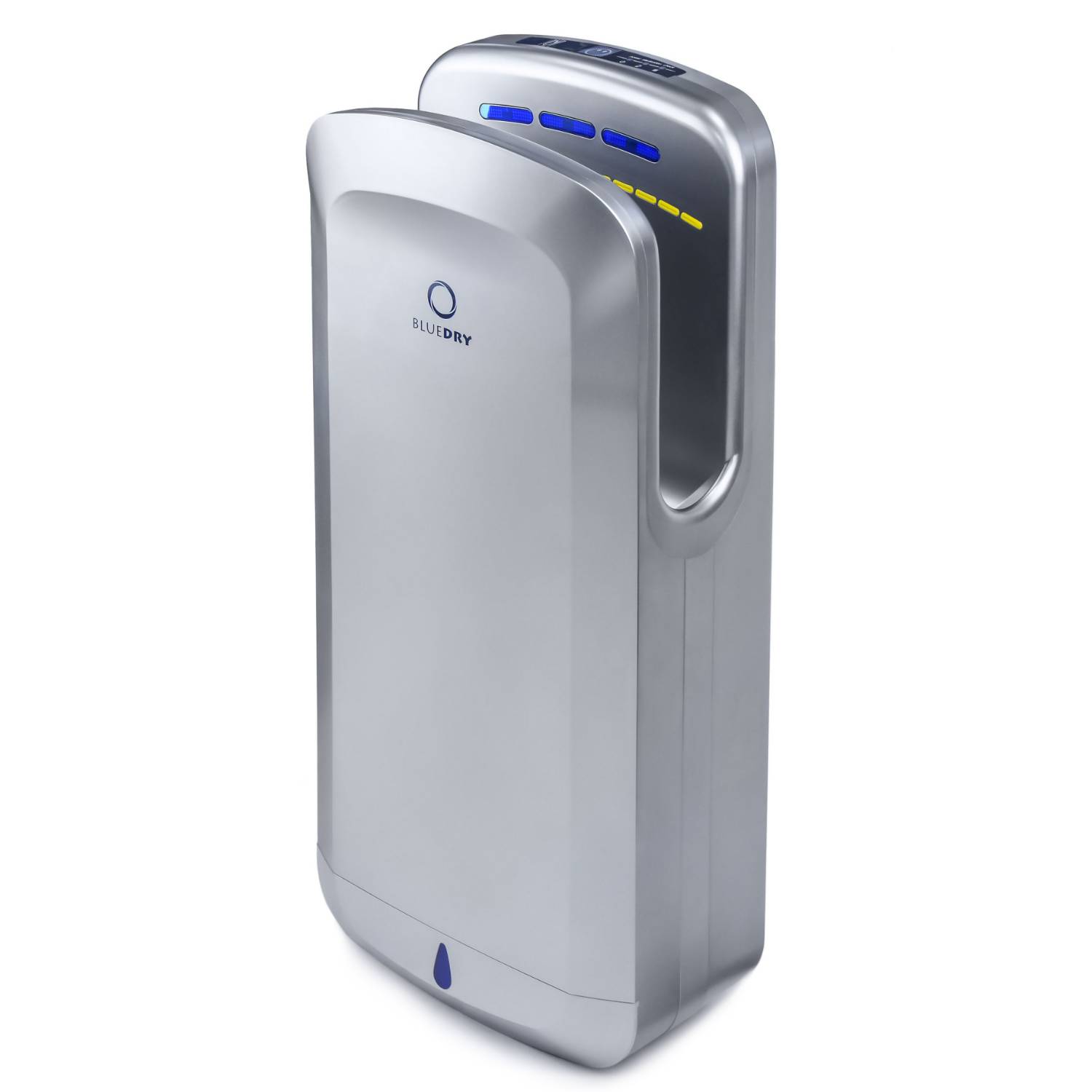

Silver - HD-BD1091S
Silver - HD-BD1091S
Hygienic, ultra high-speed, hands-in hand dryer, with intelligent heating.
Application
Hand dryer for washrooms, bathrooms and toilets.
- Suitable for low, medium and high usage.
- Suitable for the following locations in particular: offices, schools/colleges/universities, bars/restaurants/hotels, hospitality settings, retail settings, airports, and cinemas.
Description
A hygienic, high-speed, hands-in hand dryer.

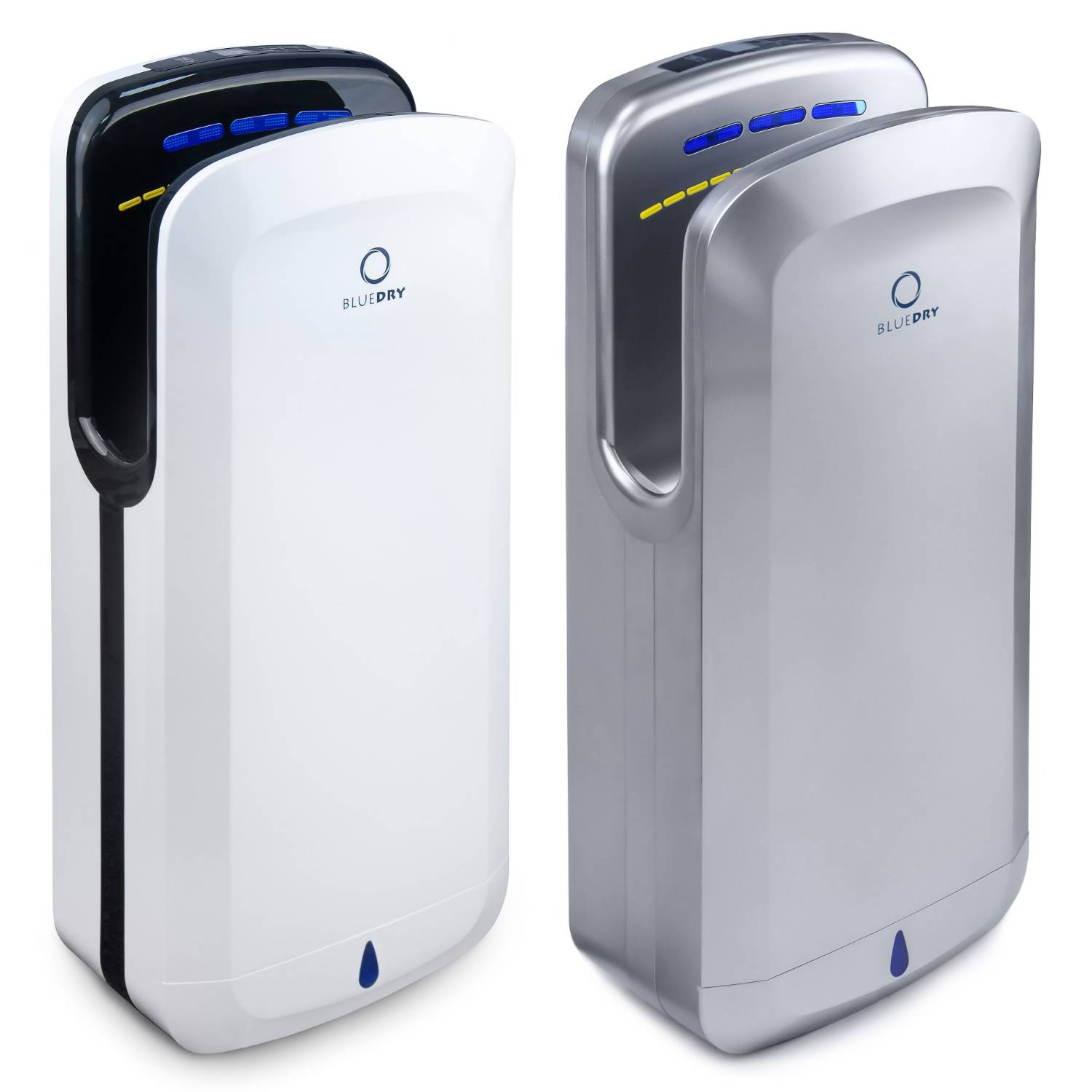

Available in white and black, or silver.
Features and benefits:
- Fast drying: 7–9 second dry times for this hand dryer.
- Low energy: uses just 700-1650 W energy.
- Hygienic: this hand dryer is fitted with a high grade HEPA filter and antibacterial coating to maximise hygiene.
- Intelligent heating: automatically adjusts the heater in the hand dryer depending on the ambient temperature of the air surrounding the dryer - on a warmer day, will reduce the heater element to save energy, and money.
- Low noise: as low as 65 dBA @ 1 m.
- Modern design: Slimline modern hand dryer design, with a blue LED light to guide the user to the airflow.
- IPX1 Rating.
- Adjustable motor/air speed: reduce noise levels or keep the machine at maximum efficiency.
- Added Benefits: Drip tray with the option to plumb to the waste permanently.
- Guarantee: 2-year warranty
General information
Color | White Other Guidance for specification option: White/ black. Black Silver |
Finish | Smooth |
Material | Acrylonitrile butadiene styrene (ABS) Guidance for specification option: Cover. |
Shape | Rectangle |
Length | 184 mm Guidance for specification option: Depth. |
Width | 298 mm |
Height | 669 mm |
Warranty description | Two year |
Uniclass | |
CAWS | N13/64 Hand dryers N13/472 Hand dryers |
Product range |
Specification data - Hand dryers
Form | High-velocity air through HEPA filter. |
Operation | Automatic.Guidance for specification option: Sensor range: 10–600 mm. |
Timer | Manufacturer's standard.Guidance for specification option: Consult manufacturer for details. |
Electrical supply | |
Power rating | 1.65 kW (hot); 0.7 kW (cold).Guidance for specification option: Hot: 7A; cold: 3.1 A. |
Rated operational voltage (Ue) | 220–240 V a.c. |
Frequency | 50 Hz.60 Hz. |
Final connection | Guidance for specification option: Insert requirements. Consult manufacturer's installation manual for details. |
Body | |
Material | ABS plastics. |
Finish | Antibacterial coating. |
Colour | Silver. |
Ingress protection (minimum) | IPX1. |
Dimensions | 669 x 298 x 184 mm.Guidance for specification option: Height x width x depth. |
Noise level at 1 m (maximum) | 65 dB(A). |
Features | Hands-in. |
Integral accessories | Antibacterial HEPA air filter. Guidance for specification option: Blue LED light guides the user to the airflow and adds a cool modern touch. The drip tray also has the option to plumb to the waste permanently, consult manufacturer for details. |
Drying time | 7–9 seconds. |
Air speed | 85–105 m/s (adjustable). Guidance for specification option: Air output temperature: 40°C (when room temperature = 25°C). |
Weight | 10.5 kg. |
Motor type | 22 000 rpm, brushless, two-step motor speed. |
Approvals | UKCA marked; CE marked; CCC marked; UKAS ISO 9001 Quality Management; ETL listed; TÜV approved. Guidance for specification option: Consult manufacturer for further details. |
Sustainability data
Contains Red List materials | No |
Country of material origin | China |
Country of product manufacture | China |
Material | Acrylonitrile butadiene styrene (ABS) Guidance for specification option: Cover. |
Recyclability | Consult manufacturer for more details. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
BlueDry Jet Blade (HD-BD1091) User Manual

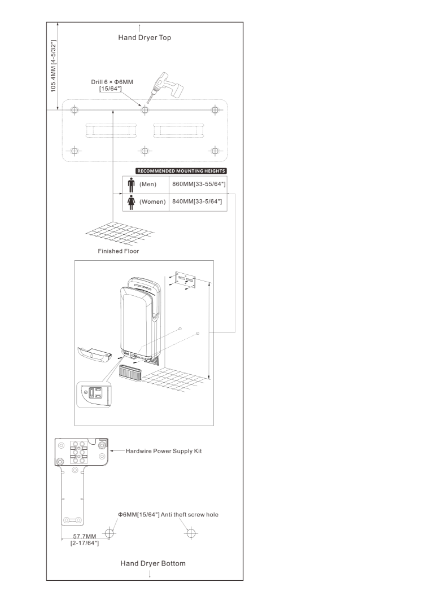

BlueDry Jet Blade (HD-BD1091) Installation Template
BlueDry Brochure
