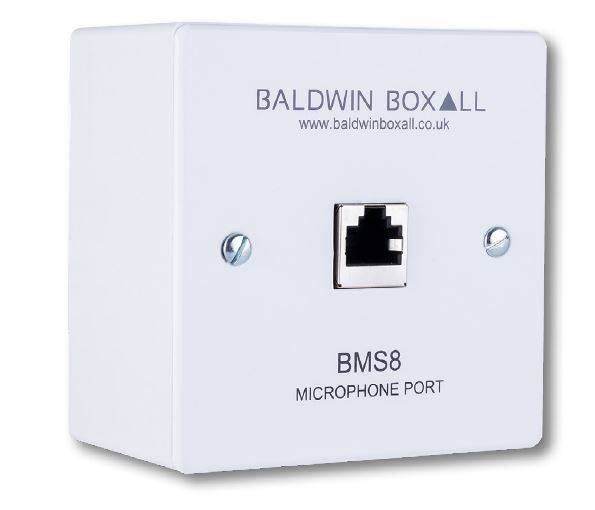

BMS8 Voice Alarm Control Microphone Termination Box

Verified by manufacturer 4 months ago

Baldwin Boxall Communications Ltd Third party certifications:
  • Made in Britain

    Made in Britain

    Certificate type

Wall mounted box for microphone connection to the VIGIL voice alarm or public address system.

Jump to:
BOS
+44 (0)1892 664422 Website

Application

Microphone termination box designed for wall mounting - single gang.

Description

The BMS8 is a voice alarm control microphone termination box.


Features and benefits:

  • Complies to EN54-16.
  • Complies to BS 5839-8.
  • Surface mounting unit - singe gang.
  • RJ45 microphone local connection.
  • For BDM400 series microphones and BVRDTSM.
  • 9 x Site Wiring Screw Terminations (0.2—4.0 mm² (30—12 AWG) solid cable / 0.2-2.5 mm²(30—12 AWG) stranded cable).
  • Dimensions (H x W x D): 85 x 85 x 50 mm.
  • Seven year warranty.

General information

Color

White

Finish

Powder-coated

Material

Steel

Plastic

Shape

Square

Length

85 mm

Width

85 mm

Height

50 mm

Warranty description

Seven year

Uniclass

Pr_75_75_94_96 Voice alarm emergency microphonesPrimary

CAWS

W53/115 Emergency voice communication systems

Specification data - Voice alarm emergency microphones

Standard

To BS EN 54-16 and BS 5839: part 8.

Microphone

Guidance for specification option:

For BDM400 series microphones and BVRDTSM.

Connection ports

RJ45.

Enclosure

-

Material

Steel front plate and plastic back box.

Colour

White.

Mounting method

Wall mount - single gang.

Finish

Powder-coated.

Height

50 mm.

Width

85 mm.

Length

85 mm.

Life expectancy

15 year.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Third party certifications

Made in Britain

Made in Britain

Made in Britain membership
