BPH100G and M Bathroom Panel Heaters

Verified by manufacturer 8 months ago

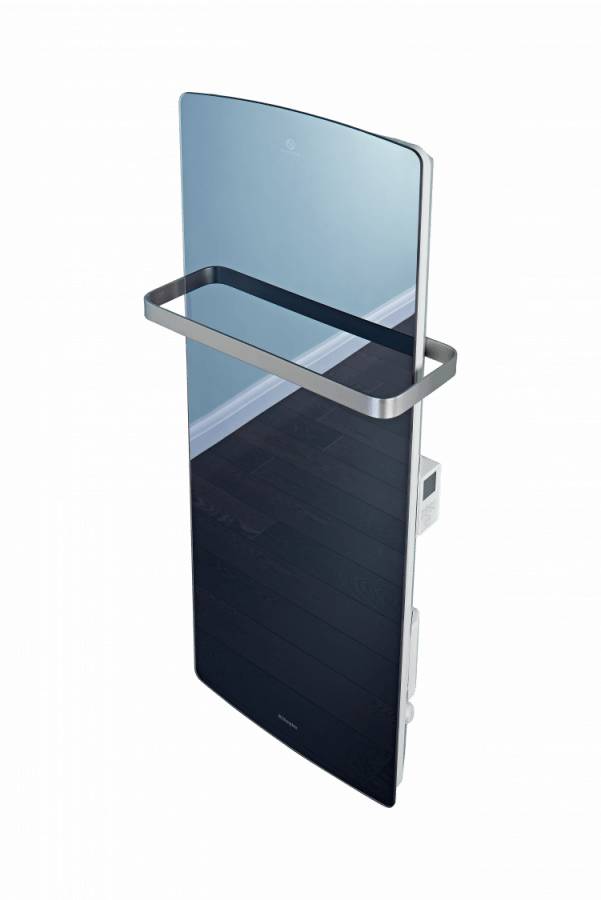

BPH100G - Glass front panel

Glen Dimplex Heating and Ventilation Variant:

A bathroom heater with rails for drying and airing towels.

Jump to:
+44 (0)344 8793587 Website

Application

Suitable for domestic applications.

Description

A bathroom heater which provides high-comfort convected heat and towel warming radiant heat with the added convenience of rails for drying and airing towels


Features and benefits:

  • 3 in 1 design for space heating with towel drying and airing facilities.
  • Available with a modern metal facia or tinted mirror effect with de-misting capability.
  • Customisable heating with four time and temperature settings per day.
  • Adaptive start pre-heating and open window detection auto-shutdown.
  • Slimline design that covers traditional panel heater fixing marks.
  • Smartphone app controllable via the Dimplex Control system.

General information

Color

White

Finish

Powder-coated

Mirrored

Material

Steel

Shape

Rectangle

Width

418 mm

430 mm

Height

1073 mm

1100 mm

Warranty description

Two year

Uniclass

Pr_70_60_36_26 Electric heated towel railsPrimary

CAWS

V90/590 Equipment

V90/590 Equipment

T90/470 Towel warmer radiators

Specification data - Electric heated towel rails

Third party certification

UKCA, CE and BEAB.

Power rating

1000 W.

Ingress protection (minimum)

To BS EN 60529, IP25.

Controls

Digitally controlled, electronic thermostat.

Guidance for specification option:

Accurate to (±0.2°C). Setpoint range (7-30°C).

Timer modes: 7 Day Programmable User Timer, Out All Day, Home All Day.

Continuous heat modes: Eco, Manual, Frost Protect.

Finish

Mirror front panel.

Accessories

None.

Dimplex Hub and Radio Frequency Module (RFM).

Guidance for specification option:

Required for this product to connect to the Dimplex Control system and be controlled via the Dimplex Control smartphone app.

Heating element

Extuded aluminum plate element.

Guidance for specification option:

Operated via an advanced controller equipped with seasonal adjustment to prevent room temperature overshoot.

Safety features

Thermal cutout (auto reset type) and overheat detection.

Battery back-up

CR2032 Lithium manganese dioxide 3V coin cell battery.

Guidance for specification option:

To backup real time clock. Battery life >5 years.

Supply

1.3 m fitted, 3 core for fused spur installation, 1/N/PE-230–240V, 50 Hz Class I, with earth wire.

Width

418 mm.

Sustainability data

Country of product manufacture

United Kingdom

Literature

BPH Series B Spec Sheet

BPH Series B Spec Sheet
