BrickClad
Verified by manufacturer 3 months ago

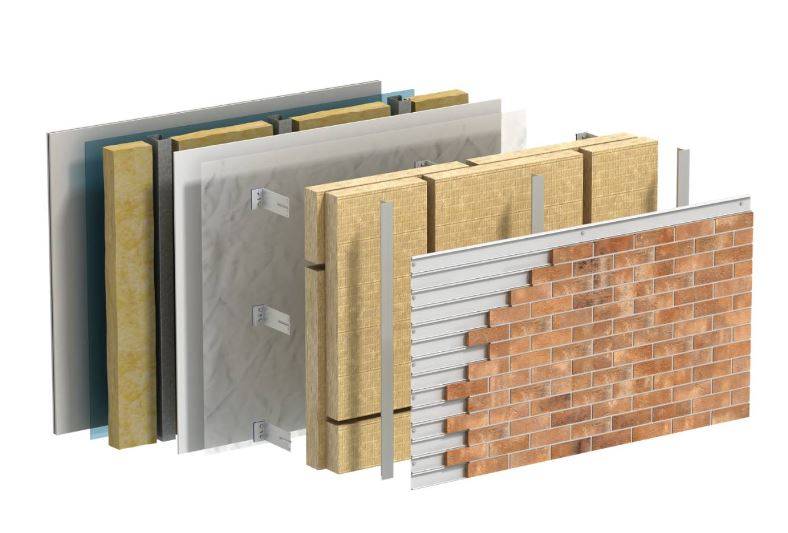

K-Roc™ Slab Insulation System
K-Roc™ Slab Insulation System
Lightweight, mechanically fixed facade system with the appearance of traditional brickwork.
Application
Brick facade system.
Description
Kingspan BrickClad is a mechanically fixed simple to install facade solution with the appearance of traditional brickwork.
Features and benefits:
- A variety of prefabricated detailing bricks are available for typical details.
- Available in a range of colours and finishes.
- Can be installed on a QuadCore Karrier System, K-Roc Karrier System or K-Roc Slab Insulation System.
Quality and Durability:
The Kingspan BrickClad system is manufactured from the highest quality materials, using state of the art production equipment to rigorous quality control standards, complying with:
- BS EN ISO 9001 standard, ensuring long term reliability and service life.
- The Kingspan BrickClad brick slips are CE marked to EN 14411: 2016.
Certification and Testing:
BrickClad® brick slips are a ceramic material and therefore classified as A1 in accordance with EN 13501-1 without further testing as outlined in EU Commission Decision 96/603/EC.
Magnelis® Omega Support Rail and Magnelis® Steel Cassette Profile are steel profiles with an inorganic coating and therefore classified as A1 in accordance with EN 13501-1 without further testing as outlined in EU Commission Decision 96/603/EC.
For further information on components used in systems or assemblies please contact our Tech-eXchange team.
Kingspan BrickClad® has been tested in accordance with CWCT ‘Standard for systemised building envelopes’ assessing:
- Air permeability.
- Watertightness - static pressure and dynamic pressure.
- Wind resistance - serviceability and safety.
- Impact resistance.
Kingspan BrickClad® has been tested in various configurations. For information on CWCT results for specific rainscreen sub-structures please contact our Tech-eXchange team.
Warranty:
Kingspan BrickClad® warranty covers manufacturing defects for a period of 6 years subject to project-specific information for:
- Kingspan BrickClad®.
- Magnelis® Steel Cassette Profile.
- Omega Support Rail.
- SureClad® Aluminium Support System.
General information
Color | Brown Beige Cream Black Grey |
Material | Brick Steel Guidance for specification option: Magnelis steel. Stainless steel Lime Guidance for specification option: Lime based mortar. |
Shape | Rectangle |
Width | 215 mm Guidance for specification option: Brick face width. |
Height | 65 mm Guidance for specification option: Brick face height. |
Warranty description | Six year Guidance for specification option: Kingspan BrickClad® warranty covers manufacturing defects for a period of six years subject to project-specific information for:
|
Uniclass | |
CAWS | H92/120 Rainscreen cladding |
Specification data - Drained and back-ventilated rainscreen cladding systems
Thermal insulation | K-Roc™ Rainscreen Slab. |
Breather membrane | |
Material | |
Secondary support structure | SureClad® vertical support rails on SureClad® support brackets.Guidance for specification option: SureClad® aluminium support system dimensions are dependent on the specified U-value. For further information on U-values of through wall assemblies please contact the Kingspan Tech-eXchange. |
Cladding panels | |
Material | BrickClad® facade finish on Magnelis® steel cassette profile.Guidance for specification option: Magnelis® Steel Cassette Profile: 2400 x 75 x 15 mm (L x W x D). |
Panel joints | 10 mm mortar joint. |
System accessories | None.Ventialtion bricks.Stop end bricks.Factory-formed and site-bonded 90° corner units.Guidance for specification option: Various corner angles available on request. |
Colour/ Finish | Arnsberg ARNB01. Arnsberg ARNB02. Arnsberg ARNB03. Arnsberg ARNB04. Arnsberg ARNB05. |
Reaction to fire | To EN 13501-1, Class A1 (BrickClad® brick slips, Magnelis® Steel Cassette Profile). Guidance for specification option: Classified as A1 in accordance with EN 13501-1 without further testing as outlined in EU Commission Decision 96/603/EC. For further information on components used in systems or assemblies please contact Kingspan Tech-eXchange. |
Sustainability data
Material | Brick Steel Guidance for specification option: Magnelis steel. Stainless steel Lime Guidance for specification option: Lime based mortar. |
Recyclability | BrickClad® and Magnelis® Steel Cassette Profiles: Fully recyclable. Guidance for specification option: Kingspan BrickClad® is produced using natural clay and can be fully recycled using the same processes as traditional bricks where bricks are often crushed and used as hardcore. Magnelis® Steel Cassette Profiles are made from mild steel with a zinc aluminium-magnesium coating and can be fully recycled using the same processes used for mild steel. |
