Built under Single Door Freezer 82cm Height
Verified by manufacturer 2 days ago

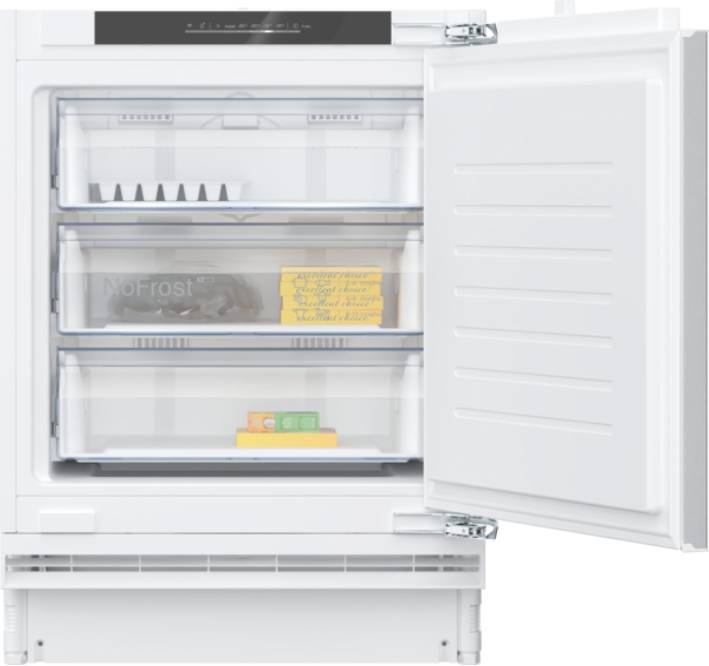

N 50, built-in freezer, 82 x 59.8 cm, flat hinge.
Application
For domestic applications.
Description
N 50, built-in freezer, 82 x 59.8 cm, flat hinge.
With NoFrost, SuperFreeze, three drawers, door open alarm, LED electronics, fixed hinge and Home Connect.
Features and benefits:
- NoFrost – No more defrosting the freezer.
- Home Connect – Add the smart fridge to a home network and stay connected to the kitchen.
General information
Color | White |
Shape | Rectangle |
Length | 548 mm |
Width | 598 mm |
Height | 820 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N11/360 Appliances N11/40 Appliances |
Specification data - Freezers
Climatic class | SN-T. |
Installation | Built-in. |
Material and finish | White. |
Format | Upright. |
Dimensions | |
Height (maximum) | 820 mm. |
Width (maximum) | 598 mm. |
Depth (maximum) | 548 mm. |
Net storage | 85 L. |
Freezing capacity | 8 Kg/24h. |
Power cut safe time | 9 h. |
Drawers | Three, transparent. |
Door arrangement | Right hinged door, reversible. |
Features | NoFrost, Electronic control (LED chain), Sabbat-Mode, optical and acoustical freezer malfunction warning signal, SuperFreeze function with automatic deactivation, Home Connect. |
Electrical supply | 220–240 V, 50 Hz. |
EU energy label rating (minimum) | E. |
Accessories | None. KFZ10AX0. KU1213Z0. |
Integral accessories | Ice cube tray. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature

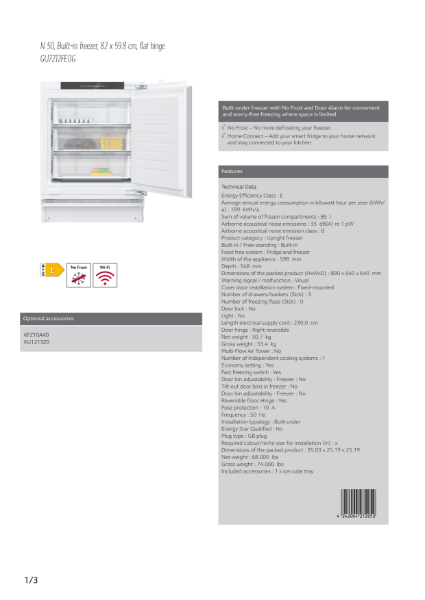

N 50, Built-in freezer, 82 x 59.8 cm, flat hinge GU7212FE0G
