BundGuard® 5 - Dewatering Solution

Verified by manufacturer 7 hours ago

Andel Ltd

Bund dewatering and pollution prevention system.

Jump to:
+44 (0)1484 845000 Website

Application

Designed to protect site operators, preventing fuel and oil from escaping and contaminating the environment.

Description

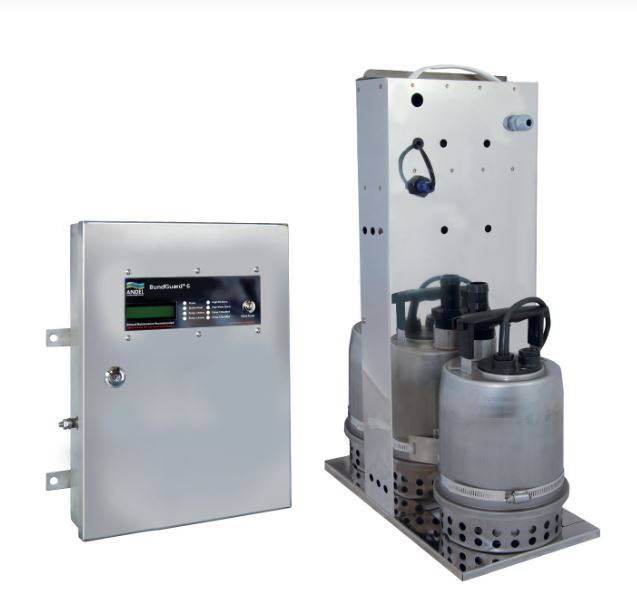

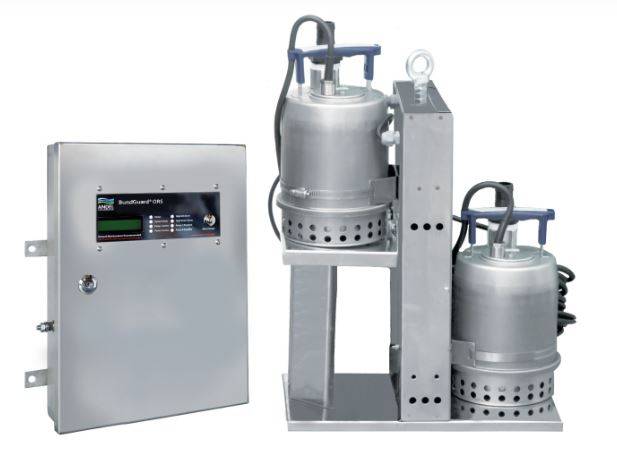

Bund dewatering solution comprising of control unit, submersible sensor/ pump assembly, and mounting system.


Designed to expel rainwater and keep oil contained within the bund. The submersible sensor unit monitors the different liquid levels in the bund sump via a series of conductive probes that can be configured as required. The mounted control unit then activates the pump to remove only water that is safe to sewer or interceptor, depending on site circumstances.


Includes FilterSepta®, a secondary containment safeguard for sites where extra caution is required, and is recommended for environmentally critical sites. FilterSepta® is an above-ground interceptor and filter unit that guarantees a Class 1 discharge of water from the bund to surface water, adhering to EN 858-1:2002. FilterSepta® eliminates the need for costly underground interceptor or separator tanks to be installed and maintained and is ideal for both retrofit and new installations.


Features and benefits - Overall unit:

  • Sustainable - removes the need for regular bund emptying by waste contractors, reducing costs, environmental impact and carbon footprint.
  • Cost effective.
  • Has a number of conductive probes that can be configured to suit each individual installation (common probe, stop pump probe, start pump probe, high water alarm probe, float switch high oil alarm).
  • Easy to fit.
  • Can be adapted to detect a wide range of other pollutants and keep them contained within the bund. If pre-determined levels of a pollutant are detected, the system will deactivate the pump/s with contaminants contained within the bund and not allow them to enter the drainage system. BundGuard® also sends alerts to initiate a response.
  • Different pump sizes can be specified.
  • Ensures compliance with regulations throughout the UK.
  • Includes failsafe systems, and a range of visual and relay alarm outputs ensure complete safety and allow onward communication to remote monitoring systems.


Features - Control panel:

  • Two-pump capability.
  • LCD menu display.
  • High oil alarm.
  • High water alarm.
  • Mains failure alarm.
  • System fault alarm.
  • Pump disable.
  • Historical data alarm.
  • Delay customization.
  • Technical support code.
  • Connector disconnection alarm.
  • Textual alarms.
  • Filter back-pressure monitoring support.
  • Outlet water meter support.
  • Pump current monitoring.
  • Auto changeover.
  • Over-current disable.
  • Battery backup.
  • Modbus remote terminal unit (RTU) interface.
  • SMS alarm forwarding (optional).

General information

Color

Silver

Finish

Satin

Material

Stainless steel

Guidance for specification option:

Standard.

Glass Reinforced Plastic (GRP)

Guidance for specification option:

Control unit option.

High density polyethylene (HDPE)

Guidance for specification option:

FilterSepta®.

Width

-

Manufacturer guidance

Dependent on size specified.

Height

-

Manufacturer guidance

Dependent on size specified.

Warranty description

One year

Guidance for specification option:

Control panel warranty.

Uniclass

Pr_65_53_24_86 Submersible pumpsPrimary

Specification data - Submersible pumps

Material

-

Pump casing

Stainless steel.

Guidance for specification option:

  • Dimensions: 250 x 160 mm.
  • Safety: Thermal trip with self-reset.
  • Fixing: Integrated – part of the sensor unit.

Duties

-

Flow rate

150 L/m.

Guidance for specification option:

At 2–3 metre head.

Motor

-

Nominal voltage

230 V a.c.

110 V a.c.

Guidance for specification option:

Optional.

Connections

Flexible.

Guidance for specification option:

Supplied complete with a fixing kit, anti-syphon device and 5 metres of 18 bar flexible hose. The unit is configured in the factory prior to delivery though some on-site adjustment may be required on installation.

Accessories

Not required.

Plug-and-Play option.

Guidance for specification option:

Available to simplify site maintenance where site conditions mean that BundGuard® units may require more frequent attention. All connections between the sensor unit and the control panel are via IP68 connectors.

Sensor

Mini.

Guidance for specification option:

300 x 220 x 55 mm.

Compact.

Guidance for specification option:

450 x 180 x 70 mm.

Standard.

Guidance for specification option:

570 x 180 x 70 mm.

XL.

Guidance for specification option:

1000 x 180 x 70 mm.

Manufacturer guidance

Sizes are in H x W x D.

  • Power and voltage: Nominal.
  • Fixing: Free standing in base of sump.

Control unit

Stainless steel.

Guidance for specification option:

IP66 rated.

Glass reinforced plastic (GRP).

Guidance for specification option:

To National Grid specifications.

Manufacturer guidance

  • Size: 410 x 262 x 100 mm.
  • Power: 110/ 230 V a.c., 440 W (1 pump running), 970 W (2 pumps running).
  • Indicator LEDs: Power – Green, System Fault – Red, Pump 1 Active – Green, Pump 2 Active – Green, High Oil Alarm – Red, High Water Alarm – Red, Pump 1 Disabled – Yellow, Pump 2 Disabled – Yellow.
  • Display: 2 x 16 characters LCD for pump cycle counter and system status, plus set-up menus when accessed.
  • Fixing: Wall/ surface mount via external fixing lug.
